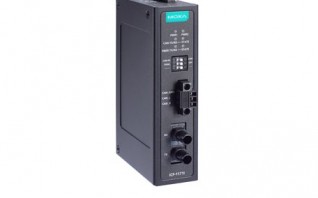

ICF-1171I SERIES
Industrial CAN-to-fiber converter for distance extension, ST multi-mode
Transmits data for up to 40 km over optical fiber
Converts CAN signals to fiber and vice versa
Supports CAN 2.0A, CAN 2.0B, and CAN FD; conforms with the ISO 11898 standard
CAN 2.0 supports auto-baudrate
CAN 2.0 arbitration rate up to 1 Mbps
CAN FD arbitration rate up to 1 Mbps; data rate up to 5 Mbps
Dual power inputs for redundancy
Wide-temperature model available for -40 to 75°C environments
DIP switch for 120-ohm terminal resistance
Rotary switches for CAN 2.0/CAN FD arbitration and data rate configuration
LEDs for CAN bus diagnostics, fiber diagnostics, and power input status
Converts CAN signals to fiber and vice versa
Supports CAN 2.0A, CAN 2.0B, and CAN FD; conforms with the ISO 11898 standard
CAN 2.0 supports auto-baudrate
CAN 2.0 arbitration rate up to 1 Mbps
CAN FD arbitration rate up to 1 Mbps; data rate up to 5 Mbps
Dual power inputs for redundancy
Wide-temperature model available for -40 to 75°C environments
DIP switch for 120-ohm terminal resistance
Rotary switches for CAN 2.0/CAN FD arbitration and data rate configuration
LEDs for CAN bus diagnostics, fiber diagnostics, and power input status
Serial Interface
- Optical Fiber: 1
- Optical Fiber: Read more
- Optical Fiber: Fiber module optical interface
- Optical Fiber: Multi-mode
- Optical Fiber: Single-mode
- Optical Fiber: Fiber Data Rate
- Optical Fiber: 100Base-Fx
- Optical Fiber: Fiber Cable Requirements
- Optical Fiber: 62.5/125 µm
- Optical Fiber: 9/125 µm
- Optical Fiber: OM1
- Optical Fiber: OS1
- Optical Fiber: Typical Distance
- Optical Fiber: 2 km
- Optical Fiber: 40 km
- Optical Fiber: Wavelength
- Optical Fiber: Typical (nm)
- Optical Fiber: 1310
- Optical Fiber: TX Range (nm)
- Optical Fiber: 1280 to 1340
- Optical Fiber: RX Range (nm)
- Optical Fiber: 1100 to 1600
- Optical Fiber: Optical Power
- Optical Fiber: TX Range (dBm)
- Optical Fiber: -10 to -20
- Optical Fiber: 0 to -5
- Optical Fiber: RX Range (dBm)
- Optical Fiber: -3 to -32
- Optical Fiber: -3 to -34
- Optical Fiber: Link Budget (dB)
- Optical Fiber: 12
- Optical Fiber: 29
- Optical Fiber: Dispersion Penalty (dB)
- Optical Fiber: 3
- Optical Fiber: 1
- Optical Fiber: Note: The “typical distance” of a specific fiber transceiver can be computer using Link budget (dB) > Dispersion penalty (dB) + Total link loss (dB).
CAN Interface
- Isolation: 2 kV (built-in)
- No. of Ports: 1
- Signals: CAN_L, CAN_H, CAN Signal GND
- Terminator: N/A, 120 ohms (by DIP)
- Protocols: CAN 2.0A, CAN 2.0B, CAN FD, compatible with ISO 11898 standard (DIP switch to select CAN 2.0/CAN FD setting)
Fiber Interface
- No. of Ports: 1
- Connector: Multi-mode ST connector
- Optical Fiber: Single-mode, typical distance 40 km Multi-mode, typical distance 2 km
Power Parameters
- Input Current: 188.5 mA (max.)
- Input Voltage: 12 to 48 VDC
- No. of Power Inputs: 2
- Power Connector: Terminal block
Relays
- Contact Current Rating: Resistive load: 1 A @ 30 VDC
- Pinouts: NC, COM, NO
Physical Characteristics
- Housing: Metal
- IP Rating: IP30
- Dimensions: 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in)
- Weight: 294 g (0.65 lb)
- Installation: DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV, Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF
- International Approval: KC
- Safety: UL 62368-1, EN 62368-1
- Vibration: IEC 60068-2-6
MTBF
- Time: 2,412,885 hrs
- Standards: Telcordia (Bellcore), GB
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
