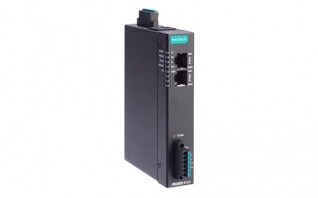

MGATE 5123 SERIES

1-port CANopen/J1939-to-PROFINET gateways, -10 to 60°C operating temperature
mgate-5123-series
Simultaneous protocol conversions from CANopen and J1939 to PROFINET and SNMP
Supports PROFINET I/O device and SNMP agent
Supports CANopen master and J1939
Flexible deployment with Ethernet cascading and dual subnet
Embedded traffic monitoring/diagnostic information for easy troubleshooting
Easy device configuration via a web-based console
microSD card for configuration backup/duplication
Supports dual redundant DC power inputs and 1 relay output
CAN port with 2-kV isolation protection
-40 to 75°C wide operating temperature models available
Developed according to IEC 62443-4-2 with Secure Boot

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 2 Auto MDI/MDI-X connection
  • Magnetic Isolation Protection: 1.5 kV (built-in)

Ethernet Software Features

  • Industrial Protocols: PROFINET IO Device
  • Configuration Options: Web Console (HTTPS) Device Search Utility (DSU)
  • Management: ARP DHCP Client DNS HTTP HTTPS SMTP SNMP Trap SNMPv1/v2c/v3 TCP/IP UDP
  • MIB: RFC1213
  • Time Management: NTP Client

Security Functions

  • Authentication: Local database
  • Encryption: HTTPS AES-128 AES-256 SHA-256
  • Security Protocols: SNMPv3 SNMPv2c Trap HTTPS (TLS 1.3)

CAN Interface

  • No. of Ports: 1
  • Connector: Spring-type Euroblock terminal
  • Standards: ISO 11898-2
  • Baudrate: CANopen: 10 kbps, 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps, 1 MbpsJ1939: 250 kbps, 500 kbps, 1 Mbps
  • Terminator: 120 ohms software configurable
  • Signals: CAN_H, CAN_L, GND, Ext_CAN_H, Ext_CAN_L, CAN_Shield

CAN Software Features

  • Industrial Protocols: CANopen master, J1939

CANopen

  • Mode: Master
  • Max No. of Nodes: 64
  • Max No. of Receive PDOs: 256
  • Max No. of Transmit PDOs: 256
  • SDOs: Supported
  • Input Data Size: 2048 bytes
  • Output Data Size: 2048 bytes

J1939

  • Max. No. of Commands: 256
  • Input Data Size: 2048 bytes
  • Output Data Size: 2048 bytes

PROFINET

  • Mode: IO Device class B
  • Max. No. of Master Connections: 2 IO controllers (shared devices)
  • Input Data Size: 1440 bytes (bytes per IO Controller, total: 2880 bytes)
  • Output Data Size: 1440 bytes (bytes per IO Controller, total: 2880 bytes)

Memory

  • microSD Slot: Up to 32 GB (SD 2.0 compatible)

Power Parameters

  • Input Voltage: 12 to 48 VDC
  • Input Current: 455 mA (max)
  • Power Connector: Spring-type Euroblock terminal

Relays

  • Contact Current Rating: Resistive load: 2 A @ 30 VDC

Physical Characteristics

  • Housing: Metal
  • IP Rating: IP30
  • Dimensions: 25 x 90 x 129.6 mm (0.98 x 3.54 x 5.1 in)
  • Weight: 294 g (0.65 lb)

Environmental Limits

  • Operating Temperature: -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • Safety: EN 61010-2-201 UL 61010-2-201
  • EMC: EN 61000-6-2/-6-4
  • EMI: FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF
  • Freefall: IEC 60068-2-31
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6 IEC 60068-2-64

MTBF

  • Time: 1,408,984 hrs hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
MGate 5123 1-port CANopen/J1939-to-PROFINET gateways, -10 to 60°C operating temperature
MGate 5123-T 1-port CANopen/J1939-to-PROFINET gateways, -40 to 75°C operating temperature
