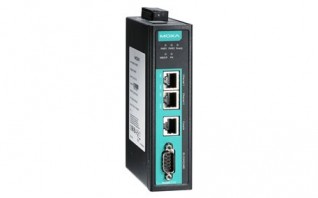

MGATE 5103 SERIES

1-port Modbus/EtherNet/IP-to-PROFINET gateway, 0 to 60°C operating temperature
mgate-5103-series
Converts Modbus, or EtherNet/IP to PROFINET
Supports PROFINET IO device
Supports Modbus RTU/ASCII/TCP master/client and slave/server
Supports EtherNet/IP Adapter
Effortless configuration via web-based wizard
Built-in Ethernet cascading for easy wiring
Embedded traffic monitoring/diagnostic information for easy troubleshooting
microSD card for configuration backup/duplication and event logs
Status monitoring and fault protection for easy maintenance
Serial port with 2 kV isolation protection
-40 to 75°C wide operating temperature models available
Supports redundant dual DC power inputs and 1 relay output
Security features based on IEC 62443

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 2 Auto MDI/MDI-X connection
  • Magnetic Isolation Protection: 1.5 kV (built-in)

Ethernet Software Features

  • Industrial Protocols: PROFINET IO Device Modbus TCP Client (Master) Modbus TCP Server (Slave) EtherNet/IP Adapter
  • Configuration Options: Web Console (HTTP/HTTPS) Device Search Utility (DSU) Telnet Console
  • Management: ARP DHCP Client DNS HTTP HTTPS SMTP SNMP Trap SNMPv1/v2c/v3 TCP/IP Telnet SSH UDP NTP Client
  • MIB: RFC1213, RFC1317
  • Time Management: NTP Client

Serial Interface

  • Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
  • No. of Ports: 1
  • Connector: DB9 male
  • Serial Standards: RS-232/422/485
  • Baudrate: 50 bps to 921.6 kbps
  • Data Bits: 7, 8
  • Parity: None Even Odd Space Mark
  • Stop Bits: 1, 2
  • Flow Control: RTS Toggle (RS-232 only) RTS/CTS
  • RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)
  • Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485: 120 ohms
  • Isolation: 2 kV (built-in)

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

  • Configuration Options: Serial Console
  • Industrial Protocols: Modbus RTU/ASCII Master Modbus RTU/ASCII Slave

Modbus RTU/ASCII

  • Mode: Master, Slave
  • Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Commands: 128
  • Input Data Size: 512 bytes
  • Output Data Size: 512 bytes

Modbus TCP

  • Mode: Client (Master), Server (Slave)
  • Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Client Connections: 16
  • Max. No. of Server Connections: 32
  • Max. No. of Commands: 128
  • Input Data Size: 512 bytes
  • Output Data Size: 512 bytes

PROFINET

  • Mode: IO Device
  • Max. No. of IO Controller Connections: 1 (for read/write)
  • Input Data Size: 512 bytes
  • Output Data Size: 512 bytes

EtherNet/IP

  • Mode: Adapter
  • CIP Objects Supported: Identity Message Router Assembly Connection Manager TCP/IP interface Ethernet link Port
  • Max. No. of Scanner Connections: 1 (for read-only), 1 (for read/write)
  • Input Data Size: 496 bytes
  • Output Data Size: 496 bytes

Memory

  • microSD Slot: Up to 32 GB (SD 2.0 compatible)

Power Parameters

  • Input Voltage: 12 to 48 VDC
  • Input Current: 455 mA @ 12 VDC
  • Power Connector: Screw-fastened Euroblock terminal

Relays

  • Contact Current Rating: Resistive load: 2 A @ 30 VDC

Physical Characteristics

  • Housing: Metal
  • IP Rating: IP30
  • Dimensions: 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
  • Weight: 507 g (1.12 lb)

Environmental Limits

  • Operating Temperature: 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • Safety: EN 62368-1 UL 508
  • EMC: EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class B
  • EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF
  • Hazardous Locations: ATEX Class I Division 2 IECEx
  • Freefall: IEC 60068-2-32
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6 IEC 60068-2-64

MTBF

  • Time: 859,422 hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Security Functions

  • Authentication: Local database
  • Encryption: HTTPS AES-128 AES-256 SHA-256
  • Security Protocols: SNMPv3 SNMPv2c Trap HTTPS (TLS 1.3)

Available Models

Model No. Description Quantity
MGate 5103-T 1-port Modbus/EtherNet/IP-to-PROFINET gateway, -40 to 75°C operating temperature
MGate 5103 1-port Modbus/EtherNet/IP-to-PROFINET gateway, 0 to 60°C operating temperature
