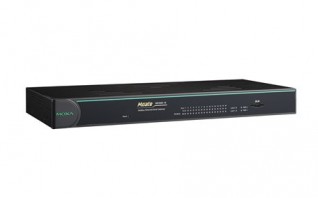

MGATE MB3660 SERIES

Modbus gateway with dual LANs, dual AC power inputs, 16 RS-232/422/485 ports, 0 to 60°C operating temperature
mgate-mb3660-series
Supports Auto Device Routing for easy configuration
Supports route by TCP port or IP address for flexible deployment
Innovative Command Learning for improving system performance
Supports agent mode for high performance through active and parallel polling of serial devices
Supports Modbus serial master to Modbus serial slave communications
2 Ethernet ports with the same IP or dual IP addresses for network redundancy
SD card for configuration backup/duplication and event logs
Accessed by up to 256 Modbus TCP clients
Connects up to Modbus 128 TCP servers
RJ45 serial interface (for “-J” models)
Serial port with 2 kV isolation protection (for “-I” models)
Dual VDC or VAC power inputs with wide power input range
Embedded traffic monitoring/diagnostic information for easy troubleshooting
Status monitoring and fault protection for easy maintenance

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 2 IP addresses Auto MDI/MDI-X connection

Ethernet Software Features

  • Industrial Protocols: Modbus TCP Client (Master) Modbus TCP Server (Slave)
  • Configuration Options: Web Console (HTTP/HTTPS) Device Search Utility (DSU) MCC Tool Telnet Console
  • Management: ARP DHCP Client DNS HTTP HTTPS SMTP SNMP Trap SNMPv1/v2c/v3 TCP/IP Telnet UDP NTP Client RADIUS
  • MIB: RFC1213, RFC1317
  • Time Management: NTP Client

Serial Interface

  • Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
  • No. of Ports: 16
  • Connector: DB9 male
  • Serial Standards: RS-232/422/485 (software-selectable)
  • Baudrate: 50 bps to 921.6 kbps
  • Data Bits: 7, 8
  • Parity: None Even Odd Space Mark
  • Stop Bits: 1, 2
  • Flow Control: RTS/CTS DTR/DSR RTS Toggle (RS-232 only)
  • RS-485 Data Direction Control: ADDC (automatic data direction control)
  • Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485: 120 ohms
  • Isolation: 2 kV (I models)

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

  • Industrial Protocols: Modbus RTU/ASCII Master Modbus RTU/ASCII Slave
  • Configuration Options: Serial Console

Modbus RTU/ASCII

  • Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Commands: 256 per serial port
  • Memory Size: 65535 bytes
  • Mode: Master, Slave

Modbus TCP

  • Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Commands: 256
  • Memory Size: 65535 bytes
  • Mode: Client (Master), Server (Slave)
  • Max. No. of Client Connections: 256
  • Max. No. of Server Connections: 128

Modbus (Transparent)

  • Max. No. of Client Connections: 256
  • Max. No. of Server Connections: 128

Power Parameters

  • Input Voltage: Redundant dual inputs 100 to 240 VAC (47 to 63 Hz)
  • No. of Power Inputs: 2
  • Power Connector: Terminal block (for DC models)
  • Power Consumption: 141 mA @ 110 VAC

Relays

  • Contact Current Rating: Resistive load: 2 A @ 30 VDC

Physical Characteristics

  • Housing: Metal
  • IP Rating: IP30
  • Dimensions (with ears): 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in)
  • Dimensions (without ears): 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)
  • Weight: 2830 g (6.24 lb)

Environmental Limits

  • Operating Temperature: 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • Safety: IEC 62368-1, UL 62368-1, IEC 60950-1, UL 60950-1
  • EMC: EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Freefall: IEC 60068-2-31
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6 IEC 60068-2-64

MTBF

  • Time: 495,416 hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Security Functions

  • Authentication: Local database RADIUS
  • Encryption: HTTPS AES-128 AES-256 SHA-256
  • Security Protocols: SNMPv3 HTTPS (TLS 1.2)

Available Models

Model No. Description Quantity
MGate MB3660-8-J-2AC Modbus gateway with dual LANs, dual AC power inputs, 8 RS-232/422/485 ports, RJ45 serial interface, 0 to 60°C operating temperature
MGate MB3660I-16-2AC Modbus gateway with dual LANs, dual AC power inputs, 16 RS-232/422/485 ports, 0 to 60°C operating temperature, 2 kV isolation
MGate MB3660-16-J-2AC Modbus gateway with dual LANs, dual AC power inputs, 16 RS-232/422/485 ports, RJ45 serial interface, 0 to 60°C operating temperature
MGate MB3660-8-2AC Modbus gateway with dual LANs, dual AC power inputs, 8 RS-232/422/485 ports, 0 to 60°C operating temperature
MGate MB3660-8-2DC Modbus gateway with dual LANs, dual DC power inputs, 8 RS-232/422/485 ports, 0 to 60°C operating temperature
MGate MB3660I-8-2AC Modbus gateway with dual LANs, dual AC power inputs, 8 RS-232/422/485 ports, 0 to 60°C operating temperature, 2 kV isolation
MGate MB3660-16-2AC Modbus gateway with dual LANs, dual AC power inputs, 16 RS-232/422/485 ports, 0 to 60°C operating temperature
MGate MB3660-16-2DC Modbus gateway with dual LANs, dual DC power inputs, 16 RS-232/422/485 ports, 0 to 60°C operating temperature
