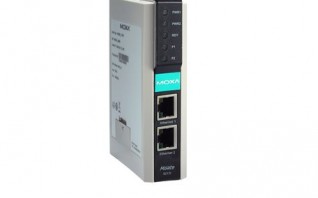

MGATE 5217 SERIES

2-port Modbus-to-BACnet/IP gateway, 1200 points, 2kV isolation, 12 to 48 VDC, 24 VAC, -40 to 75°C operating temperature
mgate-5217-series
Supports Modbus RTU/ASCII/TCP master/client
Supports BACnet/IP slave/server
Supports 600 points and 1200 points models
Supports COV for fast data communication
Supports virtual nodes designed to make each Modbus device as a separate BACnet/IP device
Configures Modbus commands quickly by editing an Excel spreadsheet
Embedded traffic and diagnostic information for easy troubleshooting
Built-in Ethernet cascading for easy wiring
Industrial design with -40 to 75°C operating temperature range
Serial port with 2 kV isolation protection
Dual AC/DC power supply
5-year warranty
Security features based on IEC 62443

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 2 Auto MDI/MDI-X connection
  • Magnetic Isolation Protection: 1.5 kV (built-in)

Ethernet Software Features

  • Industrial Protocols: Modbus TCP Client (Master) BACnet/IP Server (Slave)
  • Configuration Options: Web Console (HTTP/HTTPS) Device Search Utility (DSU) Telnet Console
  • Management: ARP DHCP Client DNS HTTP HTTPS SMTP SNMP Trap SNMPv1/v2c/v3 TCP/IP Telnet UDP NTP Client
  • MIB: RFC1213, RFC1317
  • Time Management: NTP Client

Serial Interface

  • No. of Ports: 2
  • Connector: DB9 male
  • Serial Standards: RS-232/422/485
  • Baudrate: 50 bps to 921.6 kbps
  • Data Bits: 7, 8
  • Parity: None Even Odd Space Mark
  • Stop Bits: 1, 2
  • Flow Control: RTS Toggle (RS-232 only) RTS/CTS DTR/DSR
  • RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)
  • Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485: 120 ohms
  • Isolation: 2 kV (built-in)

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

  • Industrial Protocols: Modbus RTU/ASCII Master

Modbus RTU/ASCII

  • Mode: Master
  • Functions Supported: 1, 2, 3, 4, 5, 6, 16
  • Max. No. of Commands: 1200

Modbus TCP

  • Mode: Client (Master)
  • Functions Supported: 1, 2, 3, 4, 5, 6, 16
  • Max. No. of Server Connections: 32
  • Max. No. of Commands: 1200

BACnet/IP

  • Mode: Server (Slave)
  • Memory Size: 1200 points
  • Supported BACnet Object: Binary Input Binary Output Binary Value Analog Input Analog Output Analog Value Multi-state Input Multi-state Output Multi-state Value Integer Value Positive Integer Value

Power Parameters

  • Input Voltage: 24 VAC 12 to 48 VDC
  • Input Current: 300 mA @ 24 VAC 510 mA @ 12 VDC
  • Power Connector: Screw-fastened Euroblock terminal

Relays

  • Contact Current Rating: Resistive load: 1 A @ 30 VDC

Physical Characteristics

  • Housing: Plastic
  • IP Rating: IP30
  • Dimensions (without ears): 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)
  • Dimensions (with ears): 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)
  • Weight: 380 g (0.84 lb)

Environmental Limits

  • Operating Temperature: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF IEC 61000-4-11
  • Safety: UL 60950-1 UL 62368-1 IEC 60950-1 IEC 62368-1
  • Freefall: IEC 60068-2-32
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6 IEC 60068-2-64
  • International Approval: KC

MTBF

  • Time: 1,277,500 hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Security Functions

  • Authentication: Local database
  • Encryption: HTTPS AES-128 AES-256 SHA-256
  • Security Protocols: SNMPv3 SNMPv2c Trap HTTPS (TLS 1.2)

Available Models

Model No. Description Quantity
MGate 5217I-600-T 2-port Modbus-to-BACnet/IP gateway, 600 points, 2kV isolation, 12 to 48 VDC, 24 VAC, -40 to 75°C operating temperature
MGate 5217I-1200-T 2-port Modbus-to-BACnet/IP gateway, 1200 points, 2kV isolation, 12 to 48 VDC, 24 VAC, -40 to 75°C operating temperature
