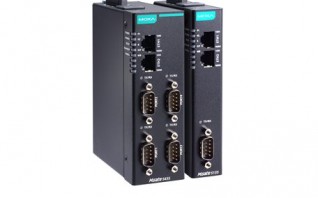

MGATE 5135/5435 SERIES

1-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -10 to 60°C operating temperature
mgate-51355435-series
Protocol conversion between Modbus and EtherNet/IP
Supports EtherNet/IP adapter
Supports Modbus RTU/ASCII/TCP client
Flexible deployment with Ethernet cascading and dual subnet
Embedded traffic monitoring/diagnostic information for easy troubleshooting
Easy device configuration via a web-based console
microSD card for configuration backup/duplication
Supports dual redundant DC power inputs and 1 relay output
-40 to 75°C wide operating temperature models available
Serial port with 2 kV isolation protection
Developed according to IEC 62443-4-2 with Secure Boot

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 2 Auto MDI/MDI-X connection
  • Magnetic Isolation Protection: 1.5 kV (built-in)

Ethernet Software Features

  • Industrial Protocols: Modbus TCP Client, EtherNet/IP Adapter
  • Configuration Options: Web Console (HTTPS), Device Search Utility (DSU)
  • Management: ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, UDP
  • MIB: RFC1213, RFC1317
  • Time Management: NTP Client

Security Functions

  • Authentication: Local database
  • Encryption: HTTPS, AES-128, AES-256, SHA-256
  • Security Protocols: SNMPv3 SNMPv2c Trap HTTPS (TLS 1.3)

Serial Interface

  • No. of Ports: 1
  • Connector: DB9 male
  • Serial Standards: RS-232/422/485
  • Baudrate: 300 bps to 921.6 kbps
  • Data Bits: 7, 8
  • Parity: None, Even, Odd, Space, Mark
  • Stop Bits: 1, 2
  • Flow Control: RTS Toggle (RS-232 only), RTS/CTS
  • RS-485 Data Direction Control: ADDC (automatic data direction control)
  • Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms software configurable
  • Terminator for RS-485: 120 ohms software configurable
  • Isolation: 2 kV (built-in)

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

  • Industrial Protocols: Modbus RTU/ASCII Client

Modbus RTU/ASCII

  • Mode: Client
  • Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Server Connections: 31
  • Max. No. of Commands: 128 per serial port

Modbus TCP

  • Mode: Client
  • Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Server Connections: 32
  • Max. No. of Commands: 128
  • Total Output Data Size: 2048 bytes
  • Total Input Data Size: 2048 bytes

EtherNet/IP

  • Mode: Adapter
  • CIP Objects Supported: Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link, Port
  • Max. No. of Scanner Connections: 4 (read/write)
  • Input Data Size: 496 bytes/connection (total: 1984 bytes) bytes
  • Output Data Size: 496 bytes/connection (total: 1984 bytes) bytes

Memory

  • microSD Slot: Up to 32 GB (SD 2.0 compatible)

Power Parameters

  • Input Voltage: 12 to 48 VDC
  • Input Current: 455 mA (max)
  • Power Connector: Spring-type Euroblock terminal

Relays

  • Contact Current Rating: Resistive load: 2 A @ 30 VDC

Physical Characteristics

  • Housing: Metal
  • IP Rating: IP30
  • Dimensions: 25 x 90 x 130 mm (0.98 x 3.54 x 5.1 in)
  • Weight: 294 g (0.65 lb)

Environmental Limits

  • Operating Temperature: -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • Safety: EN 61010-2-201, UL 61010-2-201
  • EMC: EN 61000-6-2/-6-4
  • EMI: FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF
  • Freefall: IEC 60068-2-31
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6, IEC 60068-2-64

MTBF

  • Time: 1,240,821 hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
MGate 5435-T 4-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -40 to 75°C operating temperature
MGate 5435 4-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -10 to 60°C operating temperature
MGate 5135-T 1-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -40 to 75°C operating temperature
MGate 5135 1-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -10 to 60°C operating temperature
