Protocol conversion from Modbus to PROFINET
Supports PROFINET IO device
Supports Modbus RTU/ASCII/TCP client
Flexible deployment with Ethernet cascading and dual subnet
Embedded traffic monitoring/diagnostic information for easy troubleshooting
Easy device configuration via a web-based console
microSD card for configuration backup/duplication
Supports dual redundant DC power inputs and 1 relay output
Serial port with 2 kV isolation protection
-40 to 75°C wide operating temperature models available
Developed according to IEC 62443-4-2 with Secure Boot

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 2 Auto MDI/MDI-X connection
• Magnetic Isolation Protection: 1.5 kV (built-in)

Ethernet Software Features

• Industrial Protocols: Modbus TCP Client PROFINET IO Device
• Configuration Options: Web Console (HTTPS) Device Search Utility (DSU)
• Management: ARP DHCP Client DNS HTTP HTTPS SMTP SNMP Trap SNMPv1/v2c/v3 TCP/IP UDP
• MIB: RFC1213, RFC1317
• Time Management: NTP Client

Security Functions

• Authentication: Local database
• Encryption: HTTPS AES-128 AES-256 SHA-256
• Security Protocols: SNMPv3 SNMPv2c Trap HTTPS (TLS 1.3)

Serial Interface

• No. of Ports: 1
• Connector: DB9 male
• Serial Standards: RS-232/422/485
• Baudrate: 300 bps to 921.6 kbps
• Data Bits: 7, 8
• Parity: None Even Odd Space Mark
• Stop Bits: 1, 2
• Flow Control: RTS Toggle (RS-232 only) RTS/CTS
• RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)
• Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms software configurable
• Terminator for RS-485: 120 ohms software configurable
• Isolation: 2 kV (built-in)

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

• Industrial Protocols: Modbus RTU/ASCII Client

Modbus RTU/ASCII

• Mode: Client
• Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
• Max. No. of Server Connections: 31
• Max. No. of Commands: 128 per serial port

Modbus TCP

• Mode: Client
• Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
• Max. No. of Server Connections: 32
• Max. No. of Commands: 128
• Total Output Data Size: 2048 bytes
• Total Input Data Size: 2048 bytes

PROFINET

• Mode: IO Device class B
• Max. No. of Master Connections: 2 IO Controllers (shared devices)
• Input Data Size: 1440 bytes per IO Controller (total: 2880 bytes)
• Output Data Size: 1440 bytes per IO Controller (total: 2880 bytes)

Memory

• microSD Slot: Up to 32 GB (SD 2.0 compatible)

Power Parameters

• Input Voltage: 12 to 48 VDC
• Input Current: 455 mA (max)
• Power Connector: Spring-type Euroblock terminal

Relays

• Contact Current Rating: Resistive load: 2 A @ 30 VDC

Physical Characteristics

• Housing: Metal
• IP Rating: IP30
• Dimensions: 25 x 90 x 129.6 mm (0.98 x 3.54 x 5.1 in)
• Weight: 294 g (0.65 lb)

Environmental Limits

• Operating Temperature: -10 to 60°C (14 to 140°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• Safety: EN 61010-2-201 UL 61010-2-201
• EMC: EN 61000-6-2/-6-4
• EMI: FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF
• Freefall: IEC 60068-2-31
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6 IEC 60068-2-64

MTBF

• Time: 1,240,821 hrs
• Standards: Telcordia SR332

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty

Available Models

Model No.	Description	Quantity

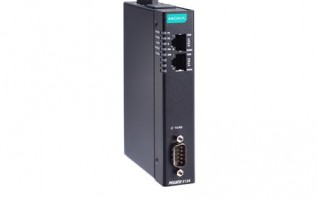

MGate 5134	1-port Modbus RTU/ASCII/TCP-to-PROFINET gateways, -10 to 60°C operating temperature
MGate 5134-T	1-port Modbus RTU/ASCII/TCP-to-PROFINET gateways, -40 to 75°C operating temperature
