Simultaneous protocol conversions from CANopen and J1939 to Modbus TCP and SNMP
Supports Modbus TCP server and SNMP agent
Supports CANopen master and J1939
Flexible deployment with Ethernet cascading and dual subnet
Embedded traffic monitoring/diagnostic information for easy troubleshooting
Easy device configuration via a web-based console
microSD card for configuration backup/duplication
Supports dual redundant DC power inputs and 1 relay output
CAN port with 2-kV isolation protection
-40 to 75°C wide operating temperature models available
Developed according to IEC 62443-4-2 with Secure Boot

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 2 Auto MDI/MDI-X connection
• Magnetic Isolation Protection: 1.5 kV (built-in)

Ethernet Software Features

• Industrial Protocols: Modbus TCP Client
• Configuration Options: Web Console (HTTPS) Device Search Utility (DSU)
• Management: ARP DHCP Client DNS HTTP HTTPS SMTP SNMP Trap SNMPv1/v2c/v3 TCP/IP UDP
• MIB: RFC1213
• Time Management: NTP Client

Security Functions

• Authentication: Local database
• Encryption: HTTPS AES-128 AES-256 SHA-256
• Security Protocols: SNMPv3 SNMPv2c Trap HTTPS (TLS 1.3)

CAN Interface

• No. of Ports: 1
• Connector: Spring-type Euroblock terminal
• Standards: ISO 11898-2
• Baudrate: CANopen: 10 kbps, 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps, 1 MbpsJ1939: 250 kbps, 500 kbps, 1 Mbps
• Terminator: 120 ohms software configurable
• Signals: CAN_H, CAN_L, GND, Ext_CAN_H, Ext_CAN_L, CAN_Shield

CAN Software Features

• Industrial Protocols: CANopen master, J1939

CANopen

• Mode: Master
• Max No. of Nodes: 64
• Max No. of Receive PDOs: 256
• Max No. of Transmit PDOs: 256
• SDOs: Supported
• Input Data Size: 2048 bytes
• Output Data Size: 2048 bytes

J1939

• Max. No. of Commands: 256
• Input Data Size: 2048 bytes
• Output Data Size: 2048 bytes

Modbus TCP

• Mode: Server
• Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
• Max. No. of Client Connections: 16
• Total Input Data Size: 2048 bytes
• Total Output Data Size: 2048 bytes

Memory

• microSD Slot: Up to 32 GB (SD 2.0 compatible)

Power Parameters

• Input Voltage: 12 to 48 VDC
• Input Current: 455 mA (max)
• Power Connector: Spring-type Euroblock terminal

Relays

• Contact Current Rating: Resistive load: 2 A @ 30 VDC

Physical Characteristics

• Housing: Metal
• IP Rating: IP30
• Dimensions: 25 x 90 x 129.6 mm (0.98 x 3.54 x 5.1 in)
• Weight: 294 g (0.65 lb)

Environmental Limits

• Operating Temperature: -10 to 60°C (14 to 140°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• Safety: EN 61010-2-201 UL 61010-2-201
• EMC: EN 61000-6-2/-6-4
• EMI: FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF
• Freefall: IEC 60068-2-31
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6 IEC 60068-2-64

MTBF

• Time: 1,408,984 hrs hrs
• Standards: Telcordia SR332

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty

Available Models

Model No.	Description	Quantity

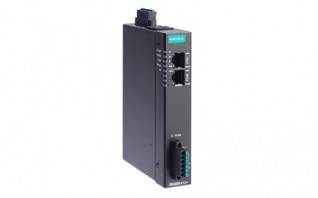

MGate 5121	1-port CANopen/J1939-to-Modbus TCP gateways, -10 to 60°C operating temperature
MGate 5121-T	1-port CANopen/J1939-to-Modbus TCP gateways, -40 to 75°C operating temperature
