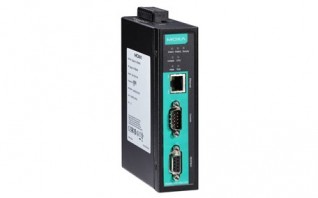

MGATE 5101-PBM-MN SERIES

1-port PROFIBUS master-to-Modbus TCP gateway, 12 to 48 VDC, 0 to 60°C operating temperature
mgate-5101-pbm-mn-series
Protocol conversion between PROFIBUS and Modbus TCP
Supports PROFIBUS DP V1 master
Supports Modbus TCP client/server
Automatic scan of PROFIBUS devices and easy configuration
Web-based GUI for I/O data visualization
Embedded traffic monitoring/diagnostic information for easy troubleshooting
Status monitoring and fault protection for easy maintenance
Supports redundant dual DC power inputs and 1 relay output
-40 to 75°C wide operating temperature models available
Serial port with 2 kV isolation protection
Security features based on IEC 62443

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 1 (auto MDI/MDI-X connection)
  • Magnetic Isolation Protection: 1.5 kV (built-in)

Ethernet Software Features

  • Industrial Protocols: Modbus TCP Client (Master) Modbus TCP Server (Slave)
  • Configuration Options: Web Console (HTTP/HTTPS) Device Search Utility (DSU) MGate Manager Telnet Console
  • Management: ARP DHCP Client DNS HTTP HTTPS SMTP SNMP Trap SNMPv1/v2c/v3 TCP/IP Telnet SSH UDP NTP Client
  • MIB: RFC1213, RFC1317
  • Time Management: NTP Client

Serial Interface

  • Console Port: RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND), DB9 male (115200, n, 8, 1)

Serial Software Features

  • Configuration Options: Serial Console
  • Industrial Protocols: PROFIBUS DP-V1 Master

Modbus TCP

  • Mode: Client (Master), Server (Slave)
  • Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Client Connections: 16
  • Max. No. of Server Connections: 32
  • Max. No. of Commands: 100
  • Input Data Size: 1536 bytes
  • Output Data Size: 1536 bytes

PROFIBUS Interface

  • Industrial Protocols: PROFIBUS DP
  • No. of Ports: 1
  • Connector: DB9 female
  • Signals: PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V
  • Baudrate: 9600 bps to 12 Mbps
  • Isolation: 2 kV (built-in)

PROFIBUS

  • Mode: DP-V1 Master
  • Input Data Size: 1536 bytes
  • Output Data Size: 1536 bytes

Power Parameters

  • Input Voltage: 12 to 48 VDC
  • Input Current: 365 mA @ 12 VDC
  • Power Connector: Screw-fastened Euroblock terminal

Relays

  • Contact Current Rating: Resistive load: 2 A @ 30 VDC

Physical Characteristics

  • Housing: Metal
  • IP Rating: IP30
  • Dimensions: 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
  • Weight: 500 g (1.10 lb)

Environmental Limits

  • Operating Temperature: 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • Safety: IEC 60950-1 UL 60950-1 EN 62368-1
  • EMC: EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF
  • Hazardous Locations: ATEX Class I Division 2 IECEx
  • Freefall: IEC 60068-2-32
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6 IEC 60068-2-64

MTBF

  • Time: 1,082,881 hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Security Functions

  • Authentication: Local database
  • Encryption: HTTPS AES-128 AES-256 SHA-256
  • Security Protocols: SNMPv3 SNMPv2c Trap HTTPS (TLS 1.3)

Available Models

Model No. Description Quantity
MGate 5101-PBM-MN 1-port PROFIBUS master-to-Modbus TCP gateway, 12 to 48 VDC, 0 to 60°C operating temperature
MGate 5101-PBM-MN-T 1-port PROFIBUS master-to-Modbus TCP gateway, 12 to 48 VDC, -40 to 75°C operating temperature
