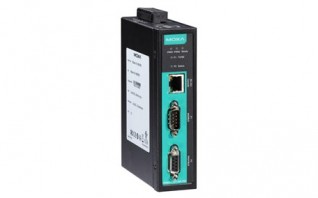

Protocol conversion between Modbus and PROFIBUS
Supports PROFIBUS DP V0 slave
Supports Modbus RTU/ASCII master and slave
Windows utilities with innovative QuickLink function for automatic configuration within minutes
Status monitoring and fault protection for easy maintenance
Embedded traffic monitoring/diagnostic information for easy troubleshooting
Supports redundant dual DC power inputs and 1 relay output
-40 to 75°C wide operating temperature models available
Serial port with 2 kV isolation protection (for “-I” models)

Serial Interface

• Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
• No. of Ports: 1
• Connector: DB9 male
• Serial Standards: RS-232/422/485
• Baudrate: 50 bps to 921.6 kbps
• Data Bits: 7, 8
• Parity: None, Even, Odd, Space, Mark
• Stop Bits: 1, 2
• Flow Control: DTR/DSR RTS/CTS
• RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)
• Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
• Terminator for RS-485: 120 ohms
• Isolation: 2 kV (I models)

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

• Configuration Options: MGate Manager
• Industrial Protocols: Modbus RTU/ASCII Master Modbus RTU/ASCII Slave PROFIBUS DP-V0 Slave

Modbus RTU/ASCII

• Mode: Master, Slave
• Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
• Max. No. of Commands: 100
• Input Data Size: 7744 bytes
• Output Data Size: 7744 bytes

PROFIBUS Interface

• Industrial Protocols: PROFIBUS DP
• No. of Ports: 1
• Connector: DB9 female
• Baudrate: 9600 bps to 12 Mbps
• Isolation: 2 kV (built-in)
• Signals: PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V

PROFIBUS

• Rotary Switch: PROFIBUS addresses 0-99 (addresses 100-125 supported through software configuration)
• Mode: DP-V0 Slave
• Max. No. of Master Connections: 1
• Max. No. of PROFIBUS I/O Modules: 24 per page
• Max. No. of PROFIBUS Pages: 32
• Input Data Size: 7744 bytes
• Output Data Size: 7744 bytes

Power Parameters

• Input Voltage: 12 to 48 VDC
• Input Current: 275 mA @ 12 VDC
• Power Connector: Screw-fastened Euroblock terminal

Relays

• Contact Current Rating: Resistive load: 1 A @ 24 VDC

Physical Characteristics

• Housing: Metal
• IP Rating: IP30Note: It is recommended to attach the M3x3mm Nylok screws at the rear side
• Dimensions: 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
• Weight: 500 g (1.10 lb)

Environmental Limits

• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• Safety: IEC 60950-1 UL 60950-1 IEC 62368-1 UL 62368-1
• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF
• Hazardous Locations: ATEX Class I Division 2 IECEx
• Freefall: IEC 60068-2-32
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6 IEC 60068-2-64

MTBF

• Time: MGate 4101-MB-PBS models: 1,537,948 hrsMGate 4101I-MB-PBS models: 1,315,666 hrs
• Standards: Telcordia SR332

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty

Available Models

Model No.	Description	Quantity
MGate 4101-MB-PBS-T	1-port Modbus-to-PROFIBUS Slave gateway, 12 to 48 VDC, -40 to 75°C operating temperature
MGate 4101-MB-PBS	1-port Modbus-to-PROFIBUS Slave gateway, 12 to 48 VDC, 0 to 60°C operating temperature
MGate 4101I-MB-PBS-T	1-port Modbus-to-PROFIBUS Slave gateway with 2 kV isolation, 12 to 48 VDC, -40 to 75°C operating temperature
MGate 4101I-MB-PBS	1-port Modbus-to-PROFIBUS Slave gateway with 2 kV isolation, 12 to 48 VDC, 0 to 60°C operating temperature
