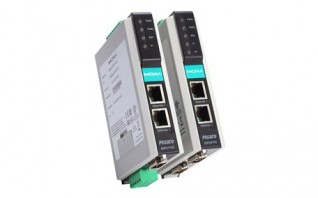

MGATE EIP3170/EIP3270 SERIES
1-port EtherNet/IP-to-DF1 gateway, 0 to 60°C operating temperature
PCCC objects for Rockwell Automation networks supported
Use ProCOM to implement control via COM port mapping
8 simultaneous EtherNet/IP client/server pairs with up to 16 queued requests
Serial redirector keeps the original serial master and slave connection while connecting devices to the Ethernet
EtherNet/IP and DF1 traffic monitor for easy troubleshooting
Redundant dual DC power inputs
Built-in Ethernet cascading for easy wiring
-40 to 75°C wide operating temperature models available
Use ProCOM to implement control via COM port mapping
8 simultaneous EtherNet/IP client/server pairs with up to 16 queued requests
Serial redirector keeps the original serial master and slave connection while connecting devices to the Ethernet
EtherNet/IP and DF1 traffic monitor for easy troubleshooting
Redundant dual DC power inputs
Built-in Ethernet cascading for easy wiring
-40 to 75°C wide operating temperature models available
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 2 Auto MDI/MDI-X connection
- Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
- Industrial Protocols: Ethernet/IP (PCCC)
- Configuration Options: MGate Manager Telnet Console
- Management: ARP DHCP Client SNMPv1 TCP/IP Telnet UDP
- MIB: RFC1213, RFC1317
Serial Interface
- No. of Ports: 1
- Connector: DB9 male for RS-232 Terminal block for RS-422/485
- Serial Standards: RS-232 RS-422
- Baudrate: 1200 bps to 921.6 kbps
- Data Bits: 8
- Parity: None Even Odd
- Stop Bits: 1, 2
- Flow Control: RTS/CTS DTR/DSR (RS-232 only)
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features
- Industrial Protocols: DF1
DF1 (Transparent)
- Mode: Full duplex
- Max. No. of Client Connections: 8
Power Parameters
- Input Voltage: 12 to 48 VDC
- Input Current: 435 mA @ 12 VDC
Relays
- Contact Current Rating: Resistive load: 1 A @ 30 VDC
Physical Characteristics
- Housing: Plastic top cover, metal bottom plate
- IP Rating: IP30
- Dimensions (with ears): 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)
- Dimensions (without ears): 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)
- Weight: 360 g (0.79 lb)
Environmental Limits
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- Safety: IEC 60950-1 UL 60950-1 EN 62368-1 UL 508
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF IEC 61000-4-11
- Hazardous Locations: If you need an IECEx certificate for this product, please contact a Moxa sales representative.
- Hazardous Locations: If you need an IECEx certificate for this product, please contact a Moxa sales representative.
- Maritime: DNV
- Freefall: IEC 60068-2-32
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6 IEC 60068-2-64
MTBF
- Time: 1,344,456 hrs
- Standards: Telcordia SR332
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
