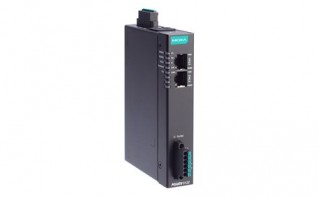

MGATE 5122 SERIES
1-port CANopen/J1939-to-EtherNet/IP gateways, -10 to 60°C operating temperature
Simultaneous protocol conversions from CANopen and J1939 to EtherNet/IP and SNMP
Supports EtherNet/IP adapter and SNMP agent
Supports CANopen master and J1939
Flexible deployment with Ethernet cascading and dual subnet
Embedded traffic monitoring/diagnostic information for easy troubleshooting
Easy device configuration via a web-based console
microSD card for configuration backup/duplication
Supports dual redundant DC power inputs and 1 relay output
CAN port with 2-kV isolation protection
-40 to 75°C wide operating temperature models available
Developed according to IEC 62443-4-2 with Secure Boot
Supports EtherNet/IP adapter and SNMP agent
Supports CANopen master and J1939
Flexible deployment with Ethernet cascading and dual subnet
Embedded traffic monitoring/diagnostic information for easy troubleshooting
Easy device configuration via a web-based console
microSD card for configuration backup/duplication
Supports dual redundant DC power inputs and 1 relay output
CAN port with 2-kV isolation protection
-40 to 75°C wide operating temperature models available
Developed according to IEC 62443-4-2 with Secure Boot
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 2 Auto MDI/MDI-X connection
- Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
- Industrial Protocols: EtherNet/IP Adapter
- Configuration Options: Web Console (HTTPS) Device Search Utility (DSU)
- Management: ARP DHCP Client DNS HTTP HTTPS SMTP SNMP Trap SNMPv1/v2c/v3 TCP/IP UDP
- MIB: RFC1213
- Time Management: NTP Client
Security Functions
- Authentication: Local database
- Encryption: HTTPS AES-128 AES-256 SHA-256
- Security Protocols: SNMPv3 SNMPv2c Trap HTTPS (TLS 1.3)
CAN Interface
- No. of Ports: 1
- Connector: Spring-type Euroblock terminal
- Standards: ISO 11898-2
- Baudrate: CANopen: 10 kbps, 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps, 1 MbpsJ1939: 250 kbps, 500 kbps, 1 Mbps
- Terminator: 120 ohms software configurable
- Signals: CAN_H, CAN_L, GND, Ext_CAN_H, Ext_CAN_L, CAN_Shield
CAN Software Features
- Industrial Protocols: CANopen master, J1939
CANopen
- Mode: Master
- Max No. of Nodes: 64
- Max No. of Receive PDOs: 256
- Max No. of Transmit PDOs: 256
- SDOs: Supported
- Input Data Size: 2048 bytes
- Output Data Size: 2048 bytes
J1939
- Max. No. of Commands: 256
- Input Data Size: 2048 bytes
- Output Data Size: 2048 bytes
EtherNet/IP
- Mode: Adapter
- CIP Objects Supported: Identity Message Router Assembly Connection Manager TCP/IP interface Ethernet link Port
- Max. No. of Scanner Connections: 4
- Input Data Size: 496 bytes (bytes/connection, total: 1984 bytes)
- Output Data Size: 496 bytes (bytes/connection, total: 1984 bytes)
Memory
- microSD Slot: Up to 32 GB (SD 2.0 compatible)
Power Parameters
- Input Voltage: 12 to 48 VDC
- Input Current: 455 mA (max)
- Power Connector: Spring-type Euroblock terminal
Relays
- Contact Current Rating: Resistive load: 2 A @ 30 VDC
Physical Characteristics
- Housing: Metal
- IP Rating: IP30
- Dimensions: 25 x 90 x 129.6 mm (0.98 x 3.54 x 5.1 in)
- Weight: 294 g (0.65 lb)
Environmental Limits
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- Safety: EN 61010-2-201 UL 61010-2-201
- EMC: EN 61000-6-2/-6-4
- EMI: FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF
- Freefall: IEC 60068-2-31
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6 IEC 60068-2-64
MTBF
- Time: 1,408,984 hrs hrs
- Standards: Telcordia SR332
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
