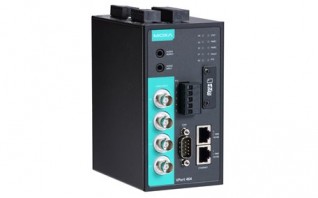

VPORT 464 SERIES

4-channel H.264/MJPEG industrial video encoder, 2 10/100/1000BaseT(X) Ethernet ports, -25 to 60°C operating temperature
vport-464-series
Each channel supports 2 D1 30 fps streams simultaneously, or merge 1 quad stream 30 fps image into 4 channels
Video latency under 200 ms
2 Ethernet ports for cascading or Ethernet port redundancy
DynaStream™ for optimized network efficiency
ONVIF support for standardization and interoperability
Local storage capability with microSD card slot
Industrial design with -40 to 75°C operating temperature

Memory

  • microSD Slot: SDXC

Input/Output Interface

  • Digital Input Channels: 4
  • Digital Inputs: +13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mA
  • Relay Channels: 2
  • Contact Current Rating: Resistive load: 1 A @ 24 VDC
  • Connector: Terminal block

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 2

Ethernet Software Features

  • Protocols: TCP/IP IPv4/IPv6 UDP HTTP RTP/RTSP ARP UPnP FTP TFTP NTP Client DNS QoS IGMP v3 ICMP SNMPv1/v2c/v3 Modbus TCP HTTPS 802.1X NTCIP

Security Functions

  • Password: User-level password protection
  • Filter: IP address
  • Authentication: 802.1X
  • Encryption: HTTPS SSH

LED Interface

  • LED Indicators: STAT: Indicates if system is booted up properly or not Power 1: Power 1 on/off Power 2: Power 2 on/off FAULT: Can be configured to correspond to system alarm, power failure, or disconnected network Video: Video input signal PTZ: Indicates if PTZ or COM port data has been transmitted SD: Indicates if SD card was mounted successfully Network: 10 Mbps or 100 Mbps

Serial Interface

  • PTZ Port: 1, RS-232 or RS-422/485 port, terminal block connector, 115.2 kbps
  • COM Port: 1, RS-232 or RS-485 port, DB9 male connector, 115.2 kbps
  • Console Port: 1 RS-232 port, 10-pin RJ45 (115200, n, 8, 1)

Power Parameters

  • No. of Power Inputs: 2
  • Input Voltage: Redundant dual inputs
  • Operating Voltage: 12 to 32 VDC, 18 to 30 VAC
  • Input Current: 1 A @ 12 VDC 0.3 A @ 32 VDC 0.92 A @ 18 VAC 0.56 A @ 30 VAC
  • Power Connector: 2-pin terminal block

Video Interface

  • Video Compression: H.264 (ISO/IEC 14496-10) or MJPEG
  • Video Input: 4, BNC connector (1.0 Vpp, 75 ohm)
  • Video Output: via Ethernet
  • Video Streams: 2 independent H.264 or MJPEG video streams 1 quad (4-channel images) stream
  • NTSC/PAL: Auto-sensing or manual
  • Video Resolution and FPS (frames per second): 25
  • Video Resolution and FPS (frames per second): NTSC
  • Video Resolution and FPS (frames per second): PAL
  • Video Resolution and FPS (frames per second): Size
  • Video Resolution and FPS (frames per second): Max. FPS
  • Video Resolution and FPS (frames per second): Size
  • Video Resolution and FPS (frames per second): Max. FPS
  • Video Resolution and FPS (frames per second): QCIF
  • Video Resolution and FPS (frames per second): 176 x 112
  • Video Resolution and FPS (frames per second): 30
  • Video Resolution and FPS (frames per second): 176 x 144
  • Video Resolution and FPS (frames per second): 25
  • Video Resolution and FPS (frames per second): 4CIF
  • Video Resolution and FPS (frames per second): 704 x 480
  • Video Resolution and FPS (frames per second): 30
  • Video Resolution and FPS (frames per second): 704 x 576
  • Video Resolution and FPS (frames per second): 25
  • Video Resolution and FPS (frames per second): CIF
  • Video Resolution and FPS (frames per second): 352 x 240
  • Video Resolution and FPS (frames per second): 30
  • Video Resolution and FPS (frames per second): 352 x 288
  • Video Resolution and FPS (frames per second): 25
  • Video Resolution and FPS (frames per second): VGA
  • Video Resolution and FPS (frames per second): 640 x 480
  • Video Resolution and FPS (frames per second): 30
  • Video Resolution and FPS (frames per second): 640 x 480
  • Video Resolution and FPS (frames per second): 25
  • Video Resolution and FPS (frames per second): QVGA
  • Video Resolution and FPS (frames per second): 320 x 240
  • Video Resolution and FPS (frames per second): 30
  • Video Resolution and FPS (frames per second): 320 x 240
  • Video Resolution and FPS (frames per second): 25
  • Video Resolution and FPS (frames per second): Full D1
  • Video Resolution and FPS (frames per second): 720 x 480
  • Video Resolution and FPS (frames per second): 30
  • Video Resolution and FPS (frames per second): 720 x 576
  • Video Resolution and FPS (frames per second): 25
  • Video Resolution and FPS (frames per second): Quad View
  • Video Resolution and FPS (frames per second): 1440 x 960
  • Video Resolution and FPS (frames per second): 30
  • Video Resolution and FPS (frames per second): 1440 x 1152
  • Video Resolution and FPS (frames per second): 25
  • Video Viewing: DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable Maximum of 10 simultaneous unicast connections, 50 multicast clients Image tuning control: brightness, contrast, saturation, sharpness, noise reduction

Audio Interface

  • Audio Inputs: 1 Line-in or MIC-in with 3.5 mm phone jack
  • Audio Outputs: 1 Line-out, with 3.5 mm phone jack
  • Audio Format: Mono, PCM (G.711)

Camera Software Development

  • VPort SDK PLUS: Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers
  • Video Standards: ONVIF Profile S

Camera PAN/TILT/ZOOM

  • PTZ Camera Control: Via PTZ port or COM port
  • PTZ Control Functions: Pan, tilt, zoom, focus, move speed, preset position (max. 128 positions)
  • PTZ Function Updates: Driver upload supported
  • Protocols: Pelco D, Pelco P, Custom Camera

Camera Alarm Software Features

  • Intelligent Video: Camera tampering detection
  • Video Motion Detection: 3 independently configurable areas
  • Scheduling: Daily repeat timing schedule
  • Imaging: JPEG snapshots for pre/trigger/post alarm images
  • Custom Alarms: HTTP event servers for setting customized alarm actions
  • Email/FTP Messaging: Automatic transfer of stored images via email or FTP as event-triggered actions
  • Pre-Alarm Buffer: 50 MB video buffer for JPEG snapshot images
  • Video Recording: Event recordings stored on the SD card
  • FTP Messaging: Automatic transfer of stored images via FTP as event-triggered actions

Software Requirements

  • Memory Size: 1 GB
  • Operating System: Windows 7 or above
  • Browser: Internet Explorer 9.x or above
  • Multimedia: DirectX 9.0C or above

Physical Characteristics

  • Housing: Metal
  • Dimensions: 80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)
  • Weight: 1130 g (2.49 lb)
  • Installation: DIN-rail mounting Wall mounting (with optional kit)

Environmental Limits

  • Operating Temperature: -25 to 60°C (-13 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Altitude: 2000 m

Standards and Certifications

  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Freefall: IEC 60068-2-31
  • Safety: UL 60950-1
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6

MTBF

  • Time: 827,831 hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
VPort 464-T 4-channel H.264/MJPEG industrial video encoder, 2 10/100/1000BaseT(X) Ethernet ports, -40 to 75°C operating temperature
VPort 464 4-channel H.264/MJPEG industrial video encoder, 2 10/100/1000BaseT(X) Ethernet ports, -25 to 60°C operating temperature
