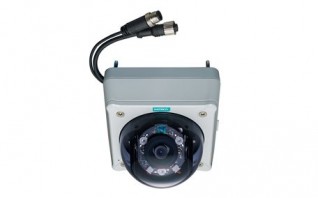

VPORT P16-2MR SERIES
EN50155, day & night, IR, 1080P IP Camera, 3.6 mm lens, PoE, M12 connector, -25 to 55°C operating temperature
1/3” progressive scan camera with maximum 1920 x 1080 resolution at up to 30 fps
Built-in IR illuminator and ICR (Infrared Cut Filter Removal) for day & night images
High quality video imaging with DNR and WDR
Up to 4 H.264 or MJPEG independent simultaneous video streams
DynaStream™ for optimized network efficiency
CBR Pro™ for high image quality in limited bandwidth transmissions
Supports SDXC (up to 2 TB SD card) for local storage
1 built-in microphone for audio input, and 1 digital input for external sensor
ONVIF support for standardization and interoperability
Built-in IR illuminator and ICR (Infrared Cut Filter Removal) for day & night images
High quality video imaging with DNR and WDR
Up to 4 H.264 or MJPEG independent simultaneous video streams
DynaStream™ for optimized network efficiency
CBR Pro™ for high image quality in limited bandwidth transmissions
Supports SDXC (up to 2 TB SD card) for local storage
1 built-in microphone for audio input, and 1 digital input for external sensor
ONVIF support for standardization and interoperability
Memory
- microSD Slot: SDXC
Input/Output Interface
- Digital Input Channels: 1
- Digital Inputs: +13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mA
- Connector: 5-pin A-coded male M12 connector with 20 cm cable
Ethernet Interface
- PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 1
- Standards: IEEE 802.3af for PoE
Ethernet Software Features
- Protocols: TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS
Security Functions
- Password: User-level password protection
- Filter: IP address
- Encryption: HTTPS
Power Parameters
- No. of Power Inputs: 1
- Source of Input Power: PoE (IEEE 802.3af)
- Input Current: 0.26 A @ 48 VDC
Camera Characteristics
- Sensor: 1/3-in 1080P progressive scan CMOS
- Lens: f=3,6 mm, F1.6, Diagonal 99°, Horizontal 70°, Vertical 39°
- Minimum Illumination: Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec) B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec) Note: 0 lux if IR illuminator is on
- Camera Angle: Pan 350°, Tilt 65° (controlled manually)
- Day & Night: Auto/Color/BW; ICR control
- Synchronization: Internal
- White Balance: ATW/AWB
- Electronic Shutter: Auto, Fixed (1/30 to 1/25000 sec)
- S/N Ratio: Maximum 50 dB (AGC off; DNR on)
- ICR Control: Auto (light sensor control) or DI control
- IR Illumination: IR LED illuminators, 5-meter (max.) effective distance; On/Off controlled manually (night mode) or by the light sensor
- DNR (digital noise reduction): Built-in 2D/3D DNR
- WDR (wide dynamic range): 100 dB
- AGC (auto gain control): 2X, 4X, 8X, 16X
- Flickerless Control: Automatic, 50 Hz, 60 Hz modes
- Image Rotation: Flip, Mirror, 90°, 180°, 270° rotation
- Image Setting: Manual tuning with saturation, sharpness, and contrast
Video Interface
- Video Compression: H.264 (ISO/IEC 14496-10) or MJPEG
- Video Output: via Ethernet
- Video Streams: 4 independent H.264 or MJPEG video streams
- Video Resolution and FPS (frames per second): 30
- Video Resolution and FPS (frames per second): NTSC
- Video Resolution and FPS (frames per second): PAL
- Video Resolution and FPS (frames per second): Size
- Video Resolution and FPS (frames per second): Max. FPS
- Video Resolution and FPS (frames per second): Size
- Video Resolution and FPS (frames per second): Max. FPS
- Video Resolution and FPS (frames per second): QCIF
- Video Resolution and FPS (frames per second): 176 x 112
- Video Resolution and FPS (frames per second): 30
- Video Resolution and FPS (frames per second): 176 x 144
- Video Resolution and FPS (frames per second): 25
- Video Resolution and FPS (frames per second): CIF
- Video Resolution and FPS (frames per second): 352 x 240
- Video Resolution and FPS (frames per second): 30
- Video Resolution and FPS (frames per second): 352 x 288
- Video Resolution and FPS (frames per second): 25
- Video Resolution and FPS (frames per second): VGA
- Video Resolution and FPS (frames per second): 640 x 480
- Video Resolution and FPS (frames per second): 30
- Video Resolution and FPS (frames per second): 640 x 480
- Video Resolution and FPS (frames per second): 25
- Video Resolution and FPS (frames per second): 4CIF
- Video Resolution and FPS (frames per second): 704 x 480
- Video Resolution and FPS (frames per second): 30
- Video Resolution and FPS (frames per second): 704 x 576
- Video Resolution and FPS (frames per second): 25
- Video Resolution and FPS (frames per second): Full D1
- Video Resolution and FPS (frames per second): 720 x 480
- Video Resolution and FPS (frames per second): 30
- Video Resolution and FPS (frames per second): 720 x 576
- Video Resolution and FPS (frames per second): 25
- Video Resolution and FPS (frames per second): SVGA
- Video Resolution and FPS (frames per second): 800 x 600
- Video Resolution and FPS (frames per second): 30
- Video Resolution and FPS (frames per second): 800 x 600
- Video Resolution and FPS (frames per second): 25
- Video Resolution and FPS (frames per second): HD
- Video Resolution and FPS (frames per second): 1280 x 720
- Video Resolution and FPS (frames per second): 30
- Video Resolution and FPS (frames per second): 1280 x 720
- Video Resolution and FPS (frames per second): 25
- Video Resolution and FPS (frames per second): WXGA
- Video Resolution and FPS (frames per second): 1280 x 800
- Video Resolution and FPS (frames per second): 30
- Video Resolution and FPS (frames per second): 1280 x 800
- Video Resolution and FPS (frames per second): 25
- Video Resolution and FPS (frames per second): Full HD
- Video Resolution and FPS (frames per second): 1920 x 1080
- Video Resolution and FPS (frames per second): 30
- Video Resolution and FPS (frames per second): 1920 x 1080
- Video Resolution and FPS (frames per second): 30
- Video Viewing: DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions 3 privacy mask areas provided Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable Maximum of 5 simultaneous unicast connections, 50 multicast clients
Audio Interface
- Audio Format: Mono, PCM (G.711) AAC
- Audio Inputs: 1 x built-in microphone
Camera Software Development
- VPort SDK PLUS: Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers
- Video Standards: ONVIF Profile S
Camera Alarm Software Features
- Intelligent Video: Camera tampering detection
- Video Motion Detection: 3 independently configurable areas
- Shock Detection: Built-in G sensor
- Scheduling: Daily repeat timing schedule
- Imaging: JPEG snapshots for pre/trigger/post alarm images
- Custom Alarms: HTTP event servers for setting customized alarm actions
- Email/FTP Messaging: Automatic transfer of stored images via email or FTP as event-triggered actions
- Pre-Alarm Buffer: 50 MB video buffer for JPEG snapshot images
- Video Recording: Event recordings stored on the SD card
Software Requirements
- Memory Size: 2 GB
- Operating System: Windows 7 or above
- Browser: Internet Explorer 9.x or above
- Multimedia: DirectX 9.0C or above
Physical Characteristics
- Housing: IP66 rain and dust protection Metal housing, PC dome cover IK8 vandal resistant protection
- Dimensions: 125 x 125 x 120.7 mm (4.92 x 4.92 x 4.8 in)
- Weight: 890 g (1.96 lb)
- Installation: Panel mounting
Environmental Limits
- Operating Temperature: -25 to 55°C (-13 to 131°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Ingress Protection: IEC 60529, IP66
- Salt Spray Test: ASTM-B117
- Vandal Resistance: EN 62262, IK8
- Altitude: 2000 m
Standards and Certifications
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Freefall: IEC 60068-2-31
- Railway Fire Protection: EN 45545-2
- Safety: UL 60950-1
- Shock: IEC 60068-2-27, IEC 61373, EN 50155
- Vibration: IEC 60068-2-64, IEC 61373, EN 50155
- Railway: EN 50155 (complies with a portion of EN 50155 specifications)
MTBF
- Time: 997,474 hrs
- Standards: Telcordia SR332
Warranty
- Warranty Period: 5 years Note: Limited warranty on moving parts; see Moxa's online warranty policy for details.
- Details: See www.moxa.com/warranty
