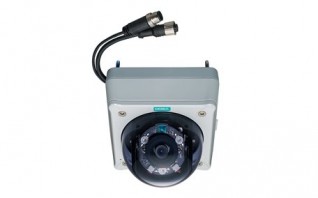

VPORT P16-1MP-M12-IR SERIES

EN50155, HD image, fixed-dome IP camera, PoE, M12 connector, IR, MIC, 1DI, 3.6mm lens, -25 to 55°C operating temperature
vport-p16-1mp-m12-ir-series
1/2.7” progressive scan camera with maximum 1280 x 800 resolution at up to 30 fps
Built-in IR illuminator and ICR (Infrared Cut Filter Removal) for day & night images
High quality video imaging with DNR and WDR
Up to 3 H.264 or MJPEG independent video streams
DynaStream™ for optimized network efficiency
CBR Pro™ for high image quality in limited bandwidth transmissions
Supports DHCP options 66 and 67 for auto-configuration
1 built-in microphone for audio input, and 1 digital input for external sensor
ONVIF support for standardization and interoperability

Input/Output Interface

  • Digital Input Channels: 1
  • Digital Inputs: +13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mA
  • Connector: 5-pin A-coded male M12 connector with 20 cm cable

Ethernet Interface

  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 1
  • Standards: IEEE 802.3af for PoE

Ethernet Software Features

  • Protocols: TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS

Security Functions

  • Password: User-level password protection
  • Filter: IP address
  • Encryption: HTTPS

Power Parameters

  • No. of Power Inputs: 1
  • Source of Input Power: PoE (IEEE 802.3af)
  • Input Current: 0.19 A @ 48 VDC

Camera Characteristics

  • Sensor: 1/2.7-in HD progressive scan CMOS
  • Lens: f=3.6 mm, F1.6, Diagonal 99°, Horizontal 94°, Vertical 47°
  • Minimum Illumination: Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec) B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec) Note: 0 lux if IR illuminator is on
  • Camera Angle: Pan 350°, Tilt 65° (controlled manually)
  • Day & Night: Auto/Color/BW; ICR control
  • Synchronization: Internal
  • White Balance: ATW/AWB
  • Electronic Shutter: Auto, Fixed (1/30 to 1/25000 sec)
  • S/N Ratio: Maximum 50 dB (AGC off; DNR on)
  • ICR Control: Auto (light sensor control) or DI control
  • IR Illumination: IR LED illuminators, 5-meter (max.) effective distance; On/Off controlled manually (night mode) or by the light sensor
  • DNR (digital noise reduction): Built-in 2D/3D DNR
  • WDR (wide dynamic range): 110 dB
  • Flickerless Control: Automatic, 50 Hz, 60 Hz modes
  • Image Rotation: Flip, Mirror, and 180° rotation
  • Image Setting: Manual tuning with saturation, sharpness, and contrast
  • AGC (auto gain control): 2X, 4X, 8X, 16X, 32X, 64X
  • BLC (back light compensation): High/Medium/Low

Video Interface

  • Video Compression: H.264 (ISO/IEC 14496-10) or MJPEG
  • Video Output: via Ethernet
  • Video Streams: 3 independent H.264 or MJPEG video streams
  • Video Resolution and FPS (frames per second): 1280 x 800
  • Video Resolution and FPS (frames per second): NTSC
  • Video Resolution and FPS (frames per second): PAL
  • Video Resolution and FPS (frames per second): Size
  • Video Resolution and FPS (frames per second): Max. FPS
  • Video Resolution and FPS (frames per second): Size
  • Video Resolution and FPS (frames per second): Max. FPS
  • Video Resolution and FPS (frames per second): QCIF
  • Video Resolution and FPS (frames per second): 176 x 112
  • Video Resolution and FPS (frames per second): 30
  • Video Resolution and FPS (frames per second): 176 x 144
  • Video Resolution and FPS (frames per second): 25
  • Video Resolution and FPS (frames per second): QVGA
  • Video Resolution and FPS (frames per second): 320 x 240
  • Video Resolution and FPS (frames per second): 30
  • Video Resolution and FPS (frames per second): 320 x 240
  • Video Resolution and FPS (frames per second): 25
  • Video Resolution and FPS (frames per second): CIF
  • Video Resolution and FPS (frames per second): 352 x 240
  • Video Resolution and FPS (frames per second): 30
  • Video Resolution and FPS (frames per second): 352 x 288
  • Video Resolution and FPS (frames per second): 25
  • Video Resolution and FPS (frames per second): VGA
  • Video Resolution and FPS (frames per second): 640 x 480
  • Video Resolution and FPS (frames per second): 30
  • Video Resolution and FPS (frames per second): 640 x 480
  • Video Resolution and FPS (frames per second): 25
  • Video Resolution and FPS (frames per second): 4CIF
  • Video Resolution and FPS (frames per second): 704 x 480
  • Video Resolution and FPS (frames per second): 30
  • Video Resolution and FPS (frames per second): 704 x 576
  • Video Resolution and FPS (frames per second): 25
  • Video Resolution and FPS (frames per second): Full D1
  • Video Resolution and FPS (frames per second): 720 x 480
  • Video Resolution and FPS (frames per second): 30
  • Video Resolution and FPS (frames per second): 720 x 576
  • Video Resolution and FPS (frames per second): 25
  • Video Resolution and FPS (frames per second): SVGA
  • Video Resolution and FPS (frames per second): 800 x 600
  • Video Resolution and FPS (frames per second): 30
  • Video Resolution and FPS (frames per second): 800 x 600
  • Video Resolution and FPS (frames per second): 25
  • Video Resolution and FPS (frames per second): HD
  • Video Resolution and FPS (frames per second): 1280 x 720
  • Video Resolution and FPS (frames per second): 30
  • Video Resolution and FPS (frames per second): 1280 x 720
  • Video Resolution and FPS (frames per second): 25
  • Video Resolution and FPS (frames per second): WXGA
  • Video Resolution and FPS (frames per second): 1280 x 800
  • Video Resolution and FPS (frames per second): 30
  • Video Resolution and FPS (frames per second): 1280 x 800
  • Video Resolution and FPS (frames per second): 25
  • Video Viewing: DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions 3 privacy mask areas provided Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable Maximum of 5 simultaneous unicast connections, 50 multicast clients

Audio Interface

  • Audio Format: Mono, PCM (G.711)
  • Audio Inputs: 1 x built-in microphone

Camera Software Development

  • VPort SDK PLUS: Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers
  • Video Standards: ONVIF Profile S

Camera Alarm Software Features

  • Intelligent Video: Camera tampering detection
  • Video Motion Detection: 3 independently configurable areas
  • Scheduling: Daily repeat timing schedule
  • Imaging: JPEG snapshots for pre/trigger/post alarm images
  • Custom Alarms: HTTP event servers for setting customized alarm actions
  • Email/FTP Messaging: Automatic transfer of stored images via email or FTP as event-triggered actions
  • Pre-Alarm Buffer: 12 MB video buffer for JPEG snapshot images

Software Requirements

  • Memory Size: 1 GB
  • Operating System: Windows 7 or above
  • Browser: Internet Explorer 9.x or above
  • Multimedia: DirectX 9.0C or above

Physical Characteristics

  • Housing: IP66 rain and dust protection Metal housing, PC dome cover IK10 vandal resistant protection
  • Dimensions: 125 x 125 x 120.7 mm (4.92 x 4.92 x 4.8 in)
  • Weight: 870 g (1.92 lb)
  • Installation: Panel mounting

Environmental Limits

  • Operating Temperature: -25 to 55°C (-13 to 131°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Ingress Protection: IEC 60529, IP66
  • Salt Spray Test: ASTM-B117
  • Vandal Resistance: EN 62262, IK10
  • Altitude: 2000 m

Standards and Certifications

  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Freefall: IEC 60068-2-31
  • Railway Fire Protection: EN 45545-2
  • Safety: UL 60950-1
  • Shock: IEC 60068-2-27, IEC 61373, EN 50155
  • Vibration: IEC 60068-2-64, IEC 61373, EN 50155
  • Railway: EN 50155 (complies with a portion of EN 50155 specifications)

MTBF

  • Time: 1,052,184 hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 5 years Note: Limited warranty on moving parts; see Moxa's online warranty policy for details.
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
VPort P16-1MP-M12-IR-CAM36 EN50155, HD image, fixed-dome IP camera, PoE, M12 connector, IR, MIC, 1DI, 3.6mm lens, -25 to 55°C operating temperature
VPort P16-1MP-M12-IR-CAM80 EN50155, HD image, fixed-dome IP camera, PoE, M12 connector, IR, MIC, 1DI, 8.0mm lens, -25 to 55°C operating temperature
VPort P16-1MP-M12-IR-CAM36-T EN50155, HD image, fixed-dome IP camera, PoE, M12 connector, IR, MIC, 1DI, 3.6mm lens, -40 to 70°C operating temperature
VPort P16-1MP-M12-IR-CAM80-T EN50155, HD image, fixed-dome IP camera, PoE, M12 connector, IR, MIC, 1DI, 8.0mm lens, -40 to 70°C operating temperature
