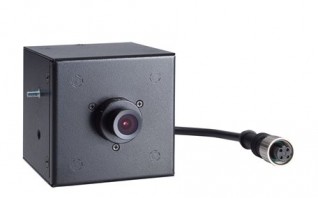

VPORT P06HC-1V SERIES
EN 50155, HD image, cubic IP camera with M12 connector, PoE, 2.8 mm lens, -40 to 55°C operating temperature
1/2.7” progressive scan camera with maximum 1280 x 800 resolution at up to 30 fps
High quality video imaging with DNR and WDR
Up to 3 H.264 or MJPEG independent video streams
DynaStream™ for optimized network efficiency
CBR Pro™ for high image quality in limited bandwidth transmissions
Supports DHCP options 66 and 67 for auto-configuration
ONVIF support for standardization and interoperability
High quality video imaging with DNR and WDR
Up to 3 H.264 or MJPEG independent video streams
DynaStream™ for optimized network efficiency
CBR Pro™ for high image quality in limited bandwidth transmissions
Supports DHCP options 66 and 67 for auto-configuration
ONVIF support for standardization and interoperability
Ethernet Interface
- PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 1
Ethernet Software Features
- Protocols: TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS
Security Functions
- Password: User-level password protection
- Filter: IP address
- Encryption: HTTPS
Power Parameters
- No. of Power Inputs: 1
- Source of Input Power: PoE (IEEE 802.3af)
- Input Current: 0.17 A @ 48 VDC
Camera Characteristics
- Sensor: 1/2.7-in HD progressive scan CMOS
- Lens: f=2.8 mm, F2.0, Diagonal 126°, Horizontal 113°, Vertical 58°
- Minimum Illumination: Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
- Synchronization: Internal
- White Balance: ATW/AWB
- Electronic Shutter: Auto (1/30 to 1/25000 sec)
- S/N Ratio: Maximum 50 dB (AGC off; DNR on)
- DNR (digital noise reduction): Built-in DNR
- WDR (wide dynamic range): 110 dB
- Flickerless Control: Automatic, 50 Hz, 60 Hz modes
- Image Rotation: Flip, Mirror, and 180° rotation
- Image Setting: Manual tuning with saturation, sharpness, and contrast
- AGC (auto gain control): 2X, 4X, 8X, 16X, 32X, 64X
- BLC (back light compensation): High/Medium/Low
Video Interface
- Video Compression: H.264 (ISO/IEC 14496-10) or MJPEG
- Video Output: via Ethernet
- Video Streams: 3 independent H.264 or MJPEG video streams
- Video Resolution and FPS (frames per second): Note: Multiple streams may not support up to 30 FPS.
- Video Resolution and FPS (frames per second): NTSC
- Video Resolution and FPS (frames per second): PAL
- Video Resolution and FPS (frames per second): Size
- Video Resolution and FPS (frames per second): Max. FPS
- Video Resolution and FPS (frames per second): Size
- Video Resolution and FPS (frames per second): Max. FPS
- Video Resolution and FPS (frames per second): QCIF
- Video Resolution and FPS (frames per second): 176 x 112
- Video Resolution and FPS (frames per second): 30
- Video Resolution and FPS (frames per second): 176 x 144
- Video Resolution and FPS (frames per second): 25
- Video Resolution and FPS (frames per second): QVGA
- Video Resolution and FPS (frames per second): 320 x 240
- Video Resolution and FPS (frames per second): 30
- Video Resolution and FPS (frames per second): 320 x 240
- Video Resolution and FPS (frames per second): 25
- Video Resolution and FPS (frames per second): CIF
- Video Resolution and FPS (frames per second): 352 x 240
- Video Resolution and FPS (frames per second): 30
- Video Resolution and FPS (frames per second): 352 x 288
- Video Resolution and FPS (frames per second): 25
- Video Resolution and FPS (frames per second): VGA
- Video Resolution and FPS (frames per second): 640 x 480
- Video Resolution and FPS (frames per second): 30
- Video Resolution and FPS (frames per second): 640 x 480
- Video Resolution and FPS (frames per second): 25
- Video Resolution and FPS (frames per second): 4CIF
- Video Resolution and FPS (frames per second): 704 x 480
- Video Resolution and FPS (frames per second): 30
- Video Resolution and FPS (frames per second): 704 x 576
- Video Resolution and FPS (frames per second): 25
- Video Resolution and FPS (frames per second): Full D1
- Video Resolution and FPS (frames per second): 720 x 480
- Video Resolution and FPS (frames per second): 30
- Video Resolution and FPS (frames per second): 720 x 576
- Video Resolution and FPS (frames per second): 25
- Video Resolution and FPS (frames per second): SVGA
- Video Resolution and FPS (frames per second): 800 x 600
- Video Resolution and FPS (frames per second): 30
- Video Resolution and FPS (frames per second): 800 x 600
- Video Resolution and FPS (frames per second): 25
- Video Resolution and FPS (frames per second): HD
- Video Resolution and FPS (frames per second): 1280 x 720
- Video Resolution and FPS (frames per second): 30
- Video Resolution and FPS (frames per second): 1280 x 720
- Video Resolution and FPS (frames per second): 25
- Video Resolution and FPS (frames per second): WXGA
- Video Resolution and FPS (frames per second): 1280 x 800
- Video Resolution and FPS (frames per second): 30
- Video Resolution and FPS (frames per second): 1280 x 800
- Video Resolution and FPS (frames per second): 25
- Video Resolution and FPS (frames per second): Note: Multiple streams may not support up to 30 FPS.
- Video Viewing: DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions 3 privacy mask areas provided Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable Maximum of 5 simultaneous unicast connections, 50 multicast clients
Camera Software Development
- Video Standards: ONVIF Profile S
Camera Alarm Software Features
- Intelligent Video: Camera tampering detection
- Video Motion Detection: 3 independently configurable areas
- Scheduling: Daily repeat timing schedule
- Imaging: JPEG snapshots for pre/trigger/post alarm images
- Custom Alarms: HTTP event servers for setting customized alarm actions
- FTP Messaging: Automatic transfer of stored images via FTP as event-triggered actions
Software Requirements
- Memory Size: 1 GB
- Operating System: Windows 7 or above
- Browser: Internet Explorer 9.x or above
- Multimedia: DirectX 9.0C or above
Physical Characteristics
- Housing: Metal
- Dimensions: 60 x 60 x 74.6 mm (2.36 x 2.36 x 2.94 in)
- Weight: 300 g (0.66 lb)
- Installation: Flush mounting
Environmental Limits
- Operating Temperature: -40 to 55°C (-40 to 131°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Ingress Protection: IEC 60529, IP30 (provided screws are used to fill the camera housing screw holes)
- Altitude: 2000 m
Standards and Certifications
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Signal: 2 kV IEC 61000-4-5 Surge: Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Freefall: IEC 60068-2-31
- Railway Fire Protection: EN 45545-2
- Safety: UL 62368-1
- Shock: IEC 60068-2-27, IEC 61373, EN 50155
- Vibration: IEC 60068-2-64, IEC 61373, EN 50155
- Railway: EN 50155 (complies with a portion of EN 50155 specifications)
MTBF
- Time: 692,847 hrs
- Standards: IEC 62380
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
