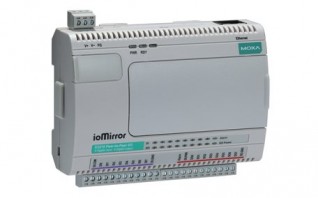

IOMIRROR E3200 SERIES

Universal Peer-to-Peer I/O, 8 DIs, 8 DOs, -10 to 60°C operating temperature
iomirror-e3200-series
Direct input-to-output signal communication over IP
High-speed peer-to-peer I/O within 20 ms
One physical alarm port for connectivity status
Utility for quick and easy web-based settings
Local alarm channel
Remote alarm message
Supports Modbus TCP for remote monitoring
Optional LCD module for easy configuration

Input/Output Interface

  • Digital Input Channels: 8
  • Digital Output Channels: 8
  • Alarm Contact Channels: 1
  • Isolation: 3k VDC or 2k Vrms
  • Buttons: Reset button

Digital Inputs

  • Connector: Screw-fastened Euroblock terminal
  • Digital Filtering Time Interval: Software configurable
  • Dry Contact: On: short to GND Off: open
  • I/O Mode: DI
  • Over-Voltage Protection: 36 VDC
  • Points per COM: 8 channels
  • Sensor Type: Dry contact Wet Contact (NPN)
  • Wet Contact (DI to GND): On: 10 to 30 VDC Off: 0 to 3 VDC

Digital Outputs

  • Connector: Screw-fastened Euroblock terminal
  • Current Rating: 200 mA per channel
  • I/O Mode: DO
  • I/O Type: Sink
  • Over-Current Protection: 0.6 A per channel @ 25°C
  • Over-Temperature Shutdown: 160°C (min.)
  • Over-Voltage Protection: 35 VDC

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 1
  • Magnetic Isolation Protection: 1.5 kV (built-in)

Ethernet Software Features

  • Configuration Options: Web Console (HTTP) Windows Utility (ioMirrorAdmin)
  • Industrial Protocols: Modbus TCP Server (Slave)
  • Management: BOOTP DHCP Client HTTP TCP/IP UDP
  • Time Management: SNTP

LED Interface

  • LED Indicators: PWR, Ready

Power Parameters

  • Power Connector: Screw-fastened Euroblock terminal
  • No. of Power Inputs: 1
  • Input Voltage: 12 to 48 VDC
  • Power Consumption: 136 mA @ 24 VDC

Alarm Contacts

  • I/O Type: Sink
  • Current Rating: Max. 200 mA per channel
  • Connector: Screw-fastened Euroblock terminal

Physical Characteristics

  • Housing: Plastic
  • Dimensions: 115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in)
  • Weight: 205 g (0.45 lb)
  • Wiring: I/O cable, 16 to 26 AWG Power cable, 16 to 26 AWG
  • Installation: Wall mounting DIN-rail mounting
  • Installation: Wall mounting DIN-rail mounting

Environmental Limits

  • Operating Temperature: -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Altitude: 2000 m Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
  • Altitude: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

Standards and Certifications

  • Freefall: IEC 60068-2-32
  • EMI: EN 61000-6-4, FCC Part 15B Class A
  • Safety: UL 508
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF

MTBF

  • Time: 231,020 hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Modbus TCP

  • Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16
  • Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16

Available Models

Model No. Description Quantity
ioMirror E3210 Universal Peer-to-Peer I/O, 8 DIs, 8 DOs, -10 to 60°C operating temperature
