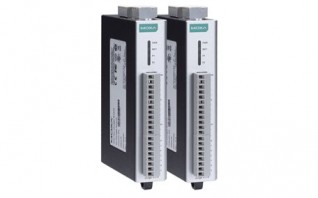

IOLOGIK R1200 SERIES
Universal I/O, 16 DIs, -10 to 75°C operating temperature
Dual RS-485 remote I/O with built-in repeater
Supports the installation of multidrop communications parameters
Install communications parameters and upgrade firmware via USB
Upgrade firmware through an RS-485 connection
Wide operating temperature models available for -40 to 85°C (-40 to 185°F) environments
Supports the installation of multidrop communications parameters
Install communications parameters and upgrade firmware via USB
Upgrade firmware through an RS-485 connection
Wide operating temperature models available for -40 to 85°C (-40 to 185°F) environments
Input/Output Interface
- Buttons: Reset button
- Digital Input Channels: 16
- Isolation: 3k VDC or 2k Vrms
Digital Inputs
- Connector: Screw-fastened Euroblock terminal
- Counter Frequency: 2.5 kHz
- Digital Filtering Time Interval: Software configurable
- Dry Contact: On: short to GND Off: open
- I/O Mode: DI or event counter
- Points per COM: 8 channels
- Sensor Type: Dry contact Wet Contact (NPN or PNP)
- Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDC
LED Interface
- LED Indicators: PWR, RDY, P1, P2
Serial Interface
- Baudrate: 1200 bps to 921.6 kbps
- Connector: Terminal block
- No. of Ports: 2
- Parity: None Even Odd
- Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
- Serial Standards: RS-485
- Stop Bits: 1, 2
- Surge: 1 kV
- ESD: 15 kV
- Data Bits: 8
- Flow Control: None XON/XOFF
Serial Signals
- RS-485-2w: Data+, Data-, GND
Serial Software Features
- Industrial Protocols: Modbus RTU Server (slave)
Power Parameters
- Power Connector: Screw-fastened Euroblock terminal
- No. of Power Inputs: 1
- Input Voltage: 12 to 48 VDC
- Power Consumption: 154 mA @ 24 VDC
Physical Characteristics
- Housing: Plastic
- Dimensions: 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)
- Weight: 200 g (0.44 lb)
- Installation: DIN-rail mounting Wall mounting
- Wiring: I/O cable, 16 to 26 AWG Power cable, 12 to 24 AWG
Environmental Limits
- Operating Temperature: -10 to 75°C (14 to 167°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Altitude: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
- Altitude: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
- EMC: EN 55032/24
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
- Safety: UL 508
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 1,239,293 hrs
- Standards: Telcordia SR332
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
