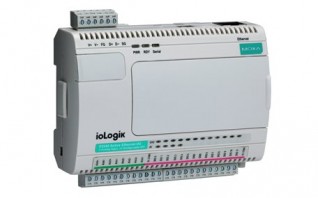

IOLOGIK E2200 SERIES
Universal controller, 12 DIs, 8 DOs, Click&Go, -10 to 60°C operating temperature
Front-end intelligence with Click&Go control logic, up to 24 rules
Active communication with MX-AOPC UA Server
Saves time and wiring costs with peer-to-peer communications
Supports SNMP v1/v2c/v3
Friendly configuration via web browser
Simplifies I/O management with MXIO library for Windows or Linux
Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
Active communication with MX-AOPC UA Server
Saves time and wiring costs with peer-to-peer communications
Supports SNMP v1/v2c/v3
Friendly configuration via web browser
Simplifies I/O management with MXIO library for Windows or Linux
Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
Control Logic
- Language: Click&Go
Input/Output Interface
- Digital Input Channels: 12
- Digital Output Channels: 8
- Buttons: Reset button
- Isolation: 3k VDC or 2k Vrms
- Rotary Switch: 0 to 9
Digital Inputs
- Connector: Screw-fastened Euroblock terminal
- Counter Frequency: 900 Hz
- Digital Filtering Time Interval: Software configurable
- Dry Contact: On: short to GND Off: open
- I/O Mode: DI or event counter
- Points per COM: 12 channels
- Sensor Type: Dry contact Wet contact (NPN)
- Wet Contact (DI to GND): On: 0 to 3 VDC Off: 10 to 30 VDC
Digital Outputs
- Connector: Screw-fastened Euroblock terminal
- Current Rating: 200 mA per channel
- I/O Mode: DO or pulse output
- I/O Type: Sink
- Over-Current Protection: 0.65 A per channel @ 25°C
- Over-Temperature Shutdown: 175°C (min.)
- Over-Voltage Protection: 45 VDC (typical)
- Pulse Output Frequency: 1 kHz
LED Interface
- LED Indicators: PWR, RDY, Serial, I/O Status
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 1
- Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
- Configuration Options: Windows Utility (ioAdmin), Web Console (HTTP)
- Industrial Protocols: Modbus TCP Server (Slave), SNMPv1/v2c/v3, SNMPv1 Trap, Moxa AOPC (Active Tag), MXIO Library, CGI commands
- Management: BOOTP, IPv4, SMTP, DHCP Client, HTTP, TCP/IP
- MIB: Device Settings MIB
- Time Management: SNTP
Modbus TCP
- Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16
- Mode: Server (Slave)
Serial Interface
- Connector: Terminal block
- Serial Standards: RS-485
- No. of Ports: 1
- Baudrate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
- Parity: None
- Data Bits: 8
- Stop Bits: 1
- Flow Control: None
Serial Signals
- RS-485-2w: Data+, Data-, GND
Serial Software Features
- Industrial Protocols: Modbus RTU Master
Power Parameters
- Power Connector: Screw-fastened Euroblock terminal
- No. of Power Inputs: 1
- Input Voltage: 12 to 36 VDC
- Power Consumption: 203 mA @ 24 VDC
Physical Characteristics
- Dimensions: 115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in)
- Weight: 250 g (0.55 lb)
- Installation: DIN-rail mounting, Wall mounting
- Wiring: I/O cable, 16 to 26 AWG Power cable, 16 to 26 AWG
- Housing: Plastic
Environmental Limits
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Altitude: 2000 m
- Altitude: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
- Freefall: IEC 60068-2-32
- EMC: EN 61000-6-2/-6-4
- Safety: UL 508
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 213,673 hrs
- Standards: Telcordia SR332
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
Platform
- Real-time Clock (RTC): Real-time clock with battery backup
Security Functions
- Authentication: Local database
- Encryption: HMAC
- Security Protocols: SNMPv3
