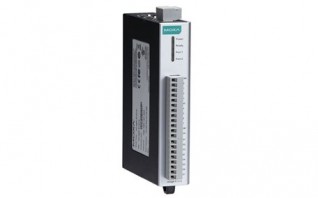

IOLOGIK E1200 SERIES
Universal I/O, 16 DIs, -10 to 60°C operating temperature
User-definable Modbus TCP Slave addressing
Supports EtherNet/IP Adapter mode Requires online registration (available free of charge)
Supports RESTful API for IIoT applications
2-port Ethernet switch for daisy-chain topologies
Saves time and wiring costs with peer-to-peer communications
Active communication with MX-AOPC UA Server
Supports SNMP v1/v2c
Easy mass deployment and configuration with ioSearch utility
Friendly configuration via web browser
Simplifies I/O management with MXIO library for Windows or Linux
Class I Division 2, ATEX Zone 2 certification Class I Division 2 and ATEX currently do not apply to the E1213/E1213-T models.
Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
Supports EtherNet/IP Adapter mode Requires online registration (available free of charge)
Supports RESTful API for IIoT applications
2-port Ethernet switch for daisy-chain topologies
Saves time and wiring costs with peer-to-peer communications
Active communication with MX-AOPC UA Server
Supports SNMP v1/v2c
Easy mass deployment and configuration with ioSearch utility
Friendly configuration via web browser
Simplifies I/O management with MXIO library for Windows or Linux
Class I Division 2, ATEX Zone 2 certification Class I Division 2 and ATEX currently do not apply to the E1213/E1213-T models.
Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
Input/Output Interface
- Digital Input Channels: 16
- Isolation: 3k VDC or 2k Vrms
- Buttons: Reset button
Digital Inputs
- Connector: Screw-fastened Euroblock terminal
- Counter Frequency: 250 Hz
- Digital Filtering Time Interval: Software configurable
- Dry Contact: On: short to GND Off: open
- I/O Mode: DI or event counter
- Points per COM: 8 channels
- Sensor Type: Dry contact Wet contact (NPN or PNP)
- Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDC
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 2, 1 MAC address (Ethernet bypass)
- Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
- Configuration Options: Web Console (HTTP) Windows Utility (ioSearch) MCC Tool
- Industrial Protocols: Modbus TCP Server (Slave) Moxa AOPC (Active Tag) MXIO Library EtherNet/IP Adapter
- Management: RESTful API SNMPv1/v2c SNMPv1 Trap HTTP DHCP Client BOOTP IPv4 TCP/IP UDP
- MIB: Device Settings MIB
- Security: Access control list
LED Interface
- LED Indicators: Power, Ready, Port 1, Port 2
Modbus TCP
- Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
- Mode: Server (Slave)
- Max. No. of Client Connections: 10
EtherNet/IP
- Mode: Adapter
- Max. No. of Scanner Connections: 9 (for read-only), 1 (for read/write)
Power Parameters
- Power Connector: Screw-fastened Euroblock terminal
- No. of Power Inputs: 1
- Input Voltage: 12 to 36 VDC
- Power Consumption: 110 mA @ 24 VDC
Physical Characteristics
- Housing: Plastic
- Dimensions: 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)
- Weight: 200 g (0.44 lb)
- Installation: DIN-rail mounting Wall mounting
- Wiring: I/O cable, 16 to 26 AWG Power cable, 12 to 24 AWG
Environmental Limits
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Altitude: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
- Altitude: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
- EMC: EN 55032/24 EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Hazardous Locations: ATEX Class I Division 2
- Safety: UL 508
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-32
- Vibration: IEC 60068-2-6
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 671,345 hrs
- Standards: Telcordia Standard SR-332
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
Security Functions
- Authentication: Local database
