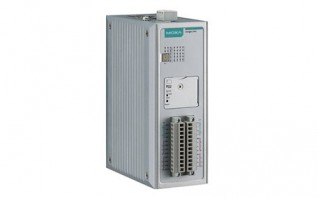

IOLOGIK 2500 SERIES
Universal controller, 8 DIs, 8 DIOs, Click&Go Plus, -10 to 60°C operating temperature
Front-end intelligence with Click&Go Plus control logic, up to 48 rules
Active communication with MX-AOPC UA Server
Automatically complement disconnection period data with MX-AOPC UA Logger software
4-port unmanaged switch built in for linking to Ethernet devices
I/O expansion port for daisy chaining up to 8 ioLogik E1200 units
3-in-1 serial port: RS-232, RS-422, or RS-485
Supports SNMP v1/v2c/v3
Simplifies I/O management with MXIO library for Windows or Linux
Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
Active communication with MX-AOPC UA Server
Automatically complement disconnection period data with MX-AOPC UA Logger software
4-port unmanaged switch built in for linking to Ethernet devices
I/O expansion port for daisy chaining up to 8 ioLogik E1200 units
3-in-1 serial port: RS-232, RS-422, or RS-485
Supports SNMP v1/v2c/v3
Simplifies I/O management with MXIO library for Windows or Linux
Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
Memory
- microSD Slot: Up to 32 GB (SD 2.0 compatible) Note: For units operating in extreme temperatures, industrial-grade, wide-temperature microSD cards are required.
Control Logic
- Language: Click&Go Plus
Input/Output Interface
- Digital Input Channels: 8
- Configurable DIO Channels (by software): 8
- Buttons: Reset button
- Isolation: 3k VDC or 2k Vrms
Digital Inputs
- Connector: Screw-fastened Euroblock terminal
- I/O Mode: DI or event counter
- Sensor Type: Dry contact Wet contact (NPN or PNP)
- Dry Contact: On: short to GND Off: open
- Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDC
- Points per COM: 8 channels
- Counter Frequency: 2.5 kHz
- Digital Filtering Time Interval: Software configurable
Digital Outputs
- Connector: Screw-fastened Euroblock terminal
- I/O Mode: DO or pulse output
- I/O Type: Sink
- Current Rating: 500 mA per channel
- Pulse Output Frequency: 5 kHz (max.)
- Over-Current Protection: 1.5 A per channel @ 25°C
- Over-Temperature Shutdown: 175°C (typical), 150°C (min.)
- Over-Voltage Protection: 45 VDC (typical)
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 4, 1 MAC address
- Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
- Configuration Options: Web Console (HTTP/HTTPS) Windows Utility (IOxpress)
- Industrial Protocols: CGI commands Modbus TCP Client (Master) Modbus TCP Server (Slave) Moxa AOPC (Active Tag) MXIO Library RESTful API SNMPv1/v2c/v3 SNMPv1/v2c Trap
- Management: BOOTP, IPv4, SMTP, TCP/IP, DHCP Client
- MIB: Device Settings MIB
- Security: HTTPS/SSL
- Time Management: SNTP
LED Interface
- LED Indicators: PWR, RDY, Serial port (P1, P2), Ethernet port (L1 to L4), I/O Channel Status (0 to 15)
Serial Interface
- Baudrate: 300, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200 bps
- Connector: 8-pin RJ45
- Data Bits: 5, 6, 7, 8
- Flow Control: None RTS/CTS XON/XOFF
- No. of Ports: 2
- Parity: None Even Odd
- Serial Standards: RS-232 RS-422 RS-485
- Stop Bits: 1, 2
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features
- Industrial Protocols: Modbus RTU Master
Power Parameters
- Power Connector: Screw-fastened Euroblock terminal
- No. of Power Inputs: 1
- Input Voltage: 12 to 48 VDC
- Power Consumption: 254 mA @ 24 VDC 529 mA @ 12 VDC 133 mA @ 48 VDC
Physical Characteristics
- Housing: Metal
- IP Rating: IP30
- Dimensions: 61 x 157 x 115 mm (2.4 x 6.18 x 4.53 in)
- Weight: 1,265 g (2.79 lb)
- Installation: DIN-rail mounting Wall mounting (with optional kit)
- Wiring: I/O cable, 16 to 26 AWG Power cable, 12 to 24 AWG
Environmental Limits
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Altitude: 2000 m
Standards and Certifications
- EMC: EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
- Vibration: IEC 60068-2-6
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-32
- Hazardous Locations: ATEX Class I Division 2
- Safety: UL 508
- Radio: EN 301 489-1/17
- Radio Frequency: EN 301 908 EN 301 489-24 EN 301 511
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 467,032 hrs
- Standards: Telcordia SR332
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
Platform
- Real-time Clock (RTC): Real-time clock with capacitor backup
