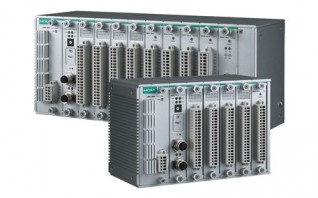

IOPAC 8600 SERIES
Module for the ioPAC 8600 Series, 5 slots, -40 to 75°C operating temperature
Modular CPU/power/backplane design that supports 85M/86M modules
Tag-centric design with ready-to-run services
Supports C/C++ and IEC 61131-3 programming languages
Compact, lightweight design
Supports a redundant power module with dual power inputs
24 to 110 V DI/O module and universal power input range module
Complies with EN 50121-4
Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
Tag-centric design with ready-to-run services
Supports C/C++ and IEC 61131-3 programming languages
Compact, lightweight design
Supports a redundant power module with dual power inputs
24 to 110 V DI/O module and universal power input range module
Complies with EN 50121-4
Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
Physical Characteristics
- Slots: 5
- Housing: Metal
- Dimensions: 205.65 x 133.35 x 100 mm (8.1 x 5.25 x 3.94 in)
- Weight: 2,560 g (5.64 lb)
- Installation: Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature: -40 to 75°C (-40 to 167°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Altitude: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
- Altitude: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
- EMC: EN 55032/35 EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Railway: EN 50121-4 EN 50155
- Safety: UL 508
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
MTBF
- Standards: Telcordia SR332
- Time: ioPAC 8600-CPU30 models (HW Rev 1.0.1): 1,358,656 hrsioPAC 8600-CPU30 models (HW Rev 1.1.0): 1,273,872 hrsioPAC 8600-PW10-15W-T: 1,752,960 hrsioPAC 8600-PW10-30W-T: 1,341,777 hrsioPAC 8600-BM005-T: 2,678,587 hrsioPAC 8600-BM009-T: 1,350,621 hrsioPAC 8600-BM012-T: 1,238,479 hrs
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
Security Functions
- Authentication: Local database
- Encryption: AES-256 HMAC RSA-1024 SHA-1 SHA-256
- Security Protocols: SNMPv3 SSHv2
