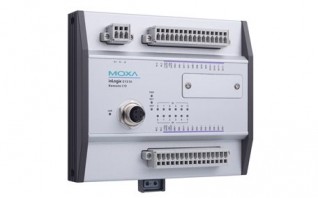

IOLOGIK E1500 SERIES

Rugged I/O, 12 DIs, -40 to 85°C operating temperature, conformal coating
iologik-e1500-series
User-definable Modbus TCP Slave addressing
Active communication with MX-AOPC UA Server
Easy mass deployment and configuration with ioSearch utility
Friendly configuration via web browser
Simplifies I/O management with MXIO library for Windows or Linux
Compliant with EN 50121-3-2, EN 50121-4, and a portion of EN 50155 specifications
Wide operating temperature range: -40 to 85°C (-40 to 185°F)

Input/Output Interface

  • Digital Input Channels: 12
  • Isolation: 3k VDC or 2k Vrms
  • Buttons: Reset button

Digital Inputs

  • Connector: Spring-type Euroblock terminal
  • Counter Frequency: 250 Hz
  • Digital Filtering Time Interval: Software configurable
  • Dry Contact: On: short to GND Off: open
  • I/O Mode: DI or event counter
  • Sensor Type: Dry contact Wet contact (NPN or PNP)
  • Wet Contact (DI to GND): On: 10 to 30 VDC Off: 0 to 3 VDC

Ethernet Interface

  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): 1
  • Magnetic Isolation Protection: 1.5 kV (built-in)

Ethernet Software Features

  • Configuration Options: Web Console (HTTP) Windows Utility (ioSearch)
  • Industrial Protocols: Modbus TCP Server (Slave) Moxa AOPC (Active Tag) MXIO Library
  • Management: BOOTP DHCP Client HTTP IPv4 TCP/IP UDP

LED Interface

  • LED Indicators: PWR, RDY, EXP, LAN, DI channels

Modbus TCP

  • Mode: Server (Slave)
  • Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16

Power Parameters

  • Power Connector: Spring-type Euroblock terminal
  • No. of Power Inputs: 1
  • Input Voltage: 12 to 48 VDC
  • Power Consumption: 150 mA @ 24 VDC

Physical Characteristics

  • Housing: Aluminum
  • Dimensions: 144 x 124 x 30 mm (5.67 x 4.88 x 1.18 in)
  • Weight: 825 g (1.82 lb)
  • Installation: DIN-rail mounting Wall mounting (with optional kit)
  • Wiring: I/O cable, 16 to 26 AWG Power cable, 16 to 26 AWG

Environmental Limits

  • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Altitude: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
  • Altitude: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
  • Storage Temperature: -40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Operating Temperature: -40 to 85°C (-40 to 185°F)

Standards and Certifications

  • EMC: EN 61000-6-2/-6-4
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Railway: EN 50121-4 EN 50155
  • Safety: UL 508
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 507,064 hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
ioLogik E1510-M12-T Rugged I/O, 12 DIs, -40 to 85°C operating temperature
ioLogik E1512-M12-T Rugged I/O, 4 DIs, 4 DIOs, -40 to 85°C operating temperature
ioLogik E1512-M12-CT-T Rugged I/O, 4 DIs, 4 DIOs, -40 to 85°C operating temperature, conformal coating
ioLogik E1510-M12-CT-T Rugged I/O, 12 DIs, -40 to 85°C operating temperature, conformal coating
