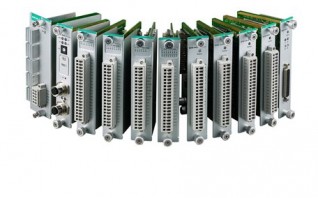

IOPAC 8600 SERIES (86M) MODULES
Module for the ioPAC 8600 Series, 16 DIs, 24 to 110 VDC, sink, channel LED, -40 to 75°C operating temperature
Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
Complies with EN 50121-4
Rugged and compact design for harsh environments
Expand the I/O and communication capabilities of your ioPAC 8600 Series device
Wide operating temperature range: -40 to 75°C (-40 to 167°F)
Channel-to-channel isolated digital input and output
24 to 110 V DI/O module and universal power input range module
Supports CAN bus for CAN 2.0 A/B communication
Complies with EN 50121-4
Rugged and compact design for harsh environments
Expand the I/O and communication capabilities of your ioPAC 8600 Series device
Wide operating temperature range: -40 to 75°C (-40 to 167°F)
Channel-to-channel isolated digital input and output
24 to 110 V DI/O module and universal power input range module
Supports CAN bus for CAN 2.0 A/B communication
Input/Output Interface
- Digital Input Channels: 16
- Isolation: 3k VDC or 2k Vrms
Digital Inputs
- Voltage: 24 to 110 VDC
- Connector: Spring-type Euroblock terminal
- Debouncing Function: Software enable/disable
- Debouncing Time: 1 to 15 ms (software-selectable)
- I/O Mode: DI
- Points per COM: 8 channels
- Scan on Time: 0.5 ms
- Scan Period: 8 ms (typical)
- Sensor Type: PNP
- Wet Contact (DI to COM): On: > 0.3 times external power voltage Off:
Power Parameters
- Power Consumption: 12.6 mA @ 24 VDC
Physical Characteristics
- Dimensions: 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)
- Weight: Under 80 g
- Wiring: I/O cable, 16 to 28 AWG
Environmental Limits
- Operating Temperature: -40 to 75°C (-40 to 167°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Altitude: 2000 m
- Altitude: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
- EMC: EN 55032/24, EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Railway: EN 50121-4, EN 50155
- Safety: UL 508
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
MTBF
- Time: 1,115,244 hrs
- Standards: Telcordia SR332
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
Digital Outputs
- Connector: Spring-type Euroblock terminal
- I/O Mode: DO or PWM
