IOPAC 8500 SERIES (85M) MODULES

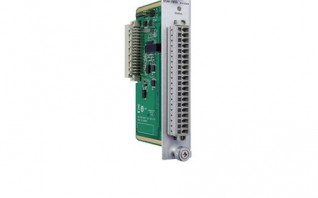

Module for the ioPAC 8500/8600 Series, 16 DIs, 24 VDC, sink/source, -40 to 75°C operating temperature
Compliant with EN 50121-3-2, EN 50121-4, and a portion of EN 50155 specifications
Rugged and compact design for harsh environments
Expand the I/O and communication capabilities of your ioPAC 8600 or 8500 Series device
Wide operating temperature range: -40 to 75°C (-40 to 167°F)
Millisecond timestamp granularity for digital input and analog input
Supports sampling rates up to 40 kHz for analog input
Pre-recording for analog input data logging
Up to 4 3-in-1 RS-232/422/485 serial ports
Rugged and compact design for harsh environments
Expand the I/O and communication capabilities of your ioPAC 8600 or 8500 Series device
Wide operating temperature range: -40 to 75°C (-40 to 167°F)
Millisecond timestamp granularity for digital input and analog input
Supports sampling rates up to 40 kHz for analog input
Pre-recording for analog input data logging
Up to 4 3-in-1 RS-232/422/485 serial ports
Input/Output Interface
- Digital Input Channels: 16
- Isolation: 3k VDC or 2k Vrms
Digital Inputs
- Voltage: 24 VDC
- Connector: Spring-type Euroblock terminal
- Counter Frequency: 5 kHz
- Dry Contact: On: short to GND Off: open
- I/O Mode: DI, event counter, or frequency
- Points per COM: 8 channels
- Sensor Type: Dry contact Wet Contact (NPN or PNP)
- Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDC
Digital Outputs
- Pulse Output Frequency: 5 kHz
Power Parameters
- Power Consumption: 50.0 mA @ 24 VDC
Physical Characteristics
- Dimensions: 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)
- Weight: Under 80 g
- Wiring: I/O cable, 14 to 28 AWG
Environmental Limits
- Operating Temperature: -40 to 75°C (-40 to 167°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Altitude: 2000 m Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
- EMC: EN 55032/24 EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Railway: EN 50121-4 EN 50155 (complies with a portion of EN 50155 specifications)
- Safety: UL 508
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
MTBF
- Time: 1,132,561 hrs
- Standards: Telcordia SR332
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
