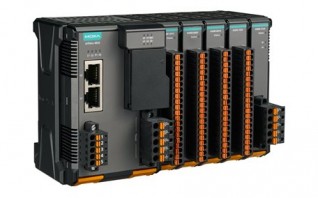

IOTHINX 4530 SERIES
Advanced modular controller with built-in serial port, dual-core 1 GHz CPU, Linux, -20 to 60°C operating temperature
-40 to 75°C wide operating temperature model available
Supports TPM v2.0 (optional)
Easy tool-free installation and removal
Moxa Industrial Linux with secure boot function
Supports up to 64 I/O modules
Built-in Azure/AWS/Alibaba Cloud library
Built-in OPC UA server library
Supports TPM v2.0 (optional)
Easy tool-free installation and removal
Moxa Industrial Linux with secure boot function
Supports up to 64 I/O modules
Built-in Azure/AWS/Alibaba Cloud library
Built-in OPC UA server library
Computer
- CPU: Armv7 Cortex-A7 dual-core 1 GHz
- OS: Moxa Industrial Linux 3 (Debian 11, kernel 5.10)See www.moxa.com/MIL
- Clock: Real-time clock with capacitor backup
- DRAM: 2 GB DDR3L
- MRAM: 128 kB
- Storage Pre-installed: 8 GB eMMC (6 GB reserved for the user)
- Storage Slot: microSD Slots x 1 (up to 32 GB)
- Expansion Slots: Up to 64 (with 45MR I/O modules)Up to 5 (with 45ML communication modules)
Control Logic
- Language: C/C++ Python
Computer Interface
- Buttons: Reset button
Input/Output Interface
- Rotary Switch: 0 to 9
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): Auto negotiation speed
- Magnetic Isolation Protection: 1.5 kV (built-in)
Serial Interface
- Console Port: RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
- No. of Ports: 1 x RS-232/422 or 2 x RS-485-2w
- Connector: Spring-type Euroblock terminal
- Serial Standards: RS-232/422/485 (software selectable)
- Baudrate: 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
- Flow Control: RTS/CTS
- Parity: None, Even, Odd
- Stop Bits: 1, 2
- Data Bits: 7, 8
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
System Power Parameters
- Power Connector: Spring-type Euroblock terminal
- No. of Power Inputs: 1
- Input Voltage: 12 to 48 VDC
- Power Consumption: 1940 mA @ 12 VDC
- Over-Current Protection: 3 A @ 25°C
- Over-Voltage Protection: 55 VDC
- Output Current: 1 A (max.)
Field Power Parameters
- Power Connector: Spring-type Euroblock terminal
- No. of Power Inputs: 1
- Input Voltage: 12/24 VDC
- Over-Current Protection: 5 A @ 25°C
- Over-Voltage Protection: 33 VDC
- Output Current: 2 A (max.)
Physical Characteristics
- Wiring: Serial cable, 16 to 28 AWG Power cable, 12 to 26 AWG
- Strip Length: Serial cable, 9 to 10 mm Power cable, 12 to 13 mm
- Housing: Plastic
- Dimensions: 60.3 x 99 x 75 mm (2.37 x 3.9 x 2.96 in)
- Weight: 207.7 g (0.457 lb)
- Installation: DIN-rail mounting
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Safety: UL 61010-2-201
- Hazardous Locations: Class I Division 2 ATEX
MTBF
- Standards: Telcordia SR332
- Time: 954,606 hrs
Environmental Limits
- Operating Temperature: -20 to 60°C (-4 to 140°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Altitude: Up to 4000 m
Declaration
- Green Product: RoHS, CRoHS, WEEE
Warranty
- Details: See www.moxa.com/warranty
- Warranty Period: 5 years
Security Functions
- Authentication: Local database
- Encryption: AES-256 SHA-256
- Security Protocols: SSHv2
- Hardware-based Security: TPM 2.0
