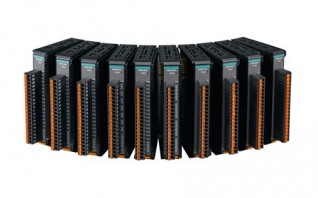

IOTHINX 4500 SERIES (45MR) MODULES

Module for the ioThinx 4500 Series, 16 DIs, 24 VDC, PNP, -20 to 60°C operating temperature
iothinx-4500-series-45mr-modules
I/O modules include DI/Os, AI/Os, relays, and other I/O types
Power modules for system power inputs and field power inputs
Easy tool-free installation and removal
Built-in LED indicators for IO channels
Wide operating temperature range: -40 to 75°C (-40 to 167°F)
Class I Division 2 and ATEX Zone 2 certifications

Input/Output Interface

  • Digital Input Channels: 16
  • Isolation: 3k VDC or 2k Vrms

Digital Inputs

  • Connector: Spring-type Euroblock terminal
  • Sensor Type: Dry contact Wet contact (PNP)
  • I/O Mode: DI or event counter (only supports the first 4 channels)
  • Dry Contact: On: short to FP+ Off: open
  • Wet Contact (DI to FP-): On: 10 to 30 VDC Off: 0 to 3 VDC
  • Counter Frequency: 1 kHz
  • Digital Filtering Time Interval: Software configurable

Power Consumption

  • System Power: 59.4 mA @ 3.3 VDC
  • Field Power: 19.3 mA @ 12 VDC 25.3 mA @ 24 VDC

Physical Characteristics

  • Weight: 77 g (0.17 lb)
  • Dimensions: 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
  • Housing: Plastic
  • Installation: DIN-rail mounting
  • Wiring: 18 to 24 AWG
  • Strip Length: I/O cable, 9 to 10 mm

Environmental Limits

  • Operating Temperature: -20 to 60°C (-4 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Altitude: Up to 4000 meters
  • Altitude: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6
  • Safety: UL 61010-2-201
  • Hazardous Locations: ATEX, Class I Division 2

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 661,247 hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
45MR-1601 Module for the ioThinx 4500 Series with 16 DIs, 24 VDC, NPN, -20 to 60°C operating temperature
45MR-1601-T Module for the ioThinx 4500 Series with 16 DIs, 24 VDC, NPN, -40 to 75°C operating temperature
45MR-2601-T Module for the ioThinx 4500 Series, 16 DOs, 24 VDC, source, -40 to 75°C operating temperature
45MR-2601 Module for the ioThinx 4500 Series, 16 DOs, 24 VDC, source, -20 to 60°C operating temperature
45MR-2404-T Module for the ioThinx 4500 Series, 4 relays, form A, -40 to 75°C operating temperature
45MR-2404 Module for the ioThinx 4500 Series with 4 relays, form A, -20 to 60°C operating temperature
45MR-3800-T Module for the ioThinx 4500 Series, 8 AIs, 0 to 20 mA or 4 to 20 mA, -40 to 75°C operating temperature
45MR-1600 Module for the ioThinx 4500 Series, 16 DIs, 24 VDC, PNP, -20 to 60°C operating temperature
45MR-2600 Module for the ioThinx 4500 Series, 16 DOs, 24 VDC, sink, -20 to 60°C operating temperature
45MR-2606 Module for the ioThinx 4500 Series, 8 DIs, 8 DOs, 24 VDC, PNP, source, -20 to 60°C operating temperature
45MR-3800 Module for the ioThinx 4500 Series, 8 AIs, 0 to 20 mA or 4 to 20 mA, -20 to 60°C operating temperature
45MR-6600-T Module for the ioThinx 4500 Series, 6 RTDs, -40 to 75°C operating temperature
45MR-7820 Module for the ioThinx 4500 Series, potential distributor module, -20 to 60°C operating temperature
45MR-6600 Module for the ioThinx 4500 Series, 6 RTDs, -20 to 60°C operating temperature
45MR-3810 Module for the ioThinx 4500 Series, 8 AIs, -10 to 10 V or 0 to 10 V, -20 to 60°C operating temperature
45MR-1600-T Module for the ioThinx 4500 Series, 16 DIs, 24 VDC, PNP, -40 to 75°C operating temperature
45MR-2600-T Module for the ioThinx 4500 Series, 16 DOs, 24 VDC, sink, -40 to 75°C operating temperature
45MR-2606-T Module for the ioThinx 4500 Series, 8 DIs, 8 DOs, 24 VDC, PNP, source, -40 to 75°C operating temperature
45MR-7820-T Module for the ioThinx 4500 Series, potential distributor module, -40 to 75°C operating temperature
45MR-3810-T Module for the ioThinx 4500 Series, 8 AIs, -10 to 10 V or 0 to 10 V, -40 to 75°C operating temperature
45MR-4420 Module for the ioThinx 4500 Series, 4 AOs, 0 to 10 V or 0 to 20 mA or 4 to 20 mA, -20 to 60°C operating temperature
45MR-6810-T Module for the ioThinx 4500 Series, 8 TCs, -40 to 75°C operating temperature
45MR-7210 Module for the ioThinx 4500 Series, system and field power inputs, -20 to 60°C operating temperature
45MR-4420-T Module for the ioThinx 4500 Series, 4 AOs, 0 to 10 V or 0 to 20 mA or 4 to 20 mA, -40 to 75°C operating temperature
45MR-7210-T Module for the ioThinx 4500 Series, system and field power inputs, -40 to 75°C operating temperature
45MR-6810 Module for the ioThinx 4500 Series, 8 TCs, -20 to 60°C operating temperature
