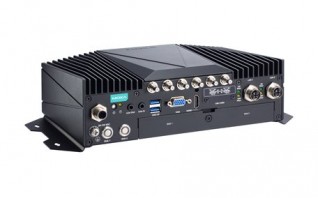

V2406C SERIES
x86 computer with Intel® 7th Gen Celeron® 3965U 2.0 GHz processor, 1 HDMI port, 1 VGA port, 2 GbE ports, 4 COM ports, 6 DIs, 2 DOs, 1 mSATA slot, dual 2.5-inch SSD/HDD slots, 2 mPCIe slots, 4 USB ports, 24 to 110 VDC power input with isolation, -40 to 70°C operating temperature
Intel® Celeron®/Intel® Core™ i3/i5/i7 high performance network video recorder for rolling stock applications
DDR4 memory slot; up to 32 GB capacity
Supports dual independent displays (VGA and HDMI with 4K resolution)
2 Gigabit Ethernet ports with M12 X-coded connectors
M12 A-coded power connector
Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
Compliant with EN 50121-4
IEC 61373 certified for shock and vibration resistance
-40 to 70°C wide-temperature models available
DDR4 memory slot; up to 32 GB capacity
Supports dual independent displays (VGA and HDMI with 4K resolution)
2 Gigabit Ethernet ports with M12 X-coded connectors
M12 A-coded power connector
Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
Compliant with EN 50121-4
IEC 61373 certified for shock and vibration resistance
-40 to 70°C wide-temperature models available
Computer
- CPU: Intel® Celeron® 3965U processor (2M cache, 2.2 GHz)
- Storage Slot: 2.5-inch HDD/SSD slots x 2 mSATA slots x 1
- Supported OS: Order via the Moxa Computer Configuration System (CCS):Windows 10 Embedded IoT Ent 2019 LTSC 64-bitWindows 10 Embedded IoT Ent 2021 LTSC 64-bitWL Models: Moxa Industrial Linux 2.x (Debian 10, kernel 4.19)KL Models: Debian 9 (kernel 4.9) Download Drivers From Website:Linux Debian 11/Ubuntu 20.04/CentOS 7.9 drivers
- System Memory Slot: SODIMM DDR4 slot x 2
- DRAM: 32 GB max
- Graphics Controller: Intel® HD Graphics 610
Computer Interface
- Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2
- Digital Output: DOs x 2
- Serial Ports: RS-232/422/485 ports x 4, software selectable (DB9 male)
- Digital Input: DIs x 6
- USB 3.0: USB 3.0 hosts x 4, type-A connectors
- Audio Input/Output: Line in x 1, Line out x 1, 3.5 mm phone jack
- Video Output: VGA x 1, 15-pin D-sub connector (female) HDMI x 1, HDMI connector (type A)
- Expansion Slots: mPCIe slots x 2
- Expansion Slots: These slots can be used for installing Wi-Fi modules. Refer to the Accessories section for a complete list of Wi-Fi modules supported. The V2400-LTE modules have only been tested with the V2406C-KL (7th Gen) models and the V2406C-LTE modules have only been tested with the V2406C-WL models (8th Gen)
Digital Inputs
- Connector: Screw-fastened Euroblock terminal
- I/O Mode: DI
- Isolation: 3k VDC
- Sensor Type: Wet contact (NPN) Dry contact
- Dry Contact: Logic 0: Close to GND Logic 1: Open
- Wet Contact (DI to COM): Logic 0: 0 to 3 VDC Logic 1: 10 to 30 VDC
- Wet Contact (COM to DI): Logic 0: 10 to 30 VDC Logic 1: 0 to 3 VDC
Digital Outputs
- Connector: Screw-fastened Euroblock terminal 10-pin terminal block
- Current Rating: 200 mA per channel
- I/O Type: Sink
- Voltage: 0 to 30 VDC
- Isolation: 3k VDC
LED Indicators
- System: Power x 1 Storage x 1
- LAN: 2 per port (10/100/1000 Mbps)
- Serial: 2 per port (Tx, Rx)
Serial Interface
- Baudrate: 50 bps to 115.2 kbps
- Data Bits: 5, 6, 7, 8
- Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
- Parity: None, Even, Odd, Space, Mark
- Stop Bits: 1, 1.5, 2
- Connector: DB9 male
- ESD: Contact: 6 kV; Air: 8 kV (level 3)
- Isolation: 2 kV
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
- Input Voltage: 24 to 110 VDC
- Power Connector: M12 A-coded male connector
- Power Consumption (Max.): 70 W (max.)
Physical Characteristics
- Housing: Aluminum
- IP Rating: IP20
- Dimensions (without ears): 250 x 75 x 150 mm (9.84 x 2.95 x 5.91 in)
- Weight: 2,700 g (5.95 lb)
- Installation: Wall mounting (standard)
- Protection: PCB conformal coating Available on request
Environmental Limits
- Operating Temperature: -40 to 70°C (-40 to 158°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Railway Fire Protection: EN 45545-2
- EMC: EN 55032/35
- Safety: EN 62368-1 IEC 62368-1 UL 62368-1
- Railway: EN 50121-4 EN 50121-3-2 EN 50155:2017
- Shock: IEC 60068-2-27, IEC 61373
- Vibration: IEC 60068-2-64, IEC 61373
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 382,506 hrs
- Standards: Telcordia (Bellcore), GB
Warranty
- Warranty Period: 3 years
- Details: See www.moxa.com/warranty
