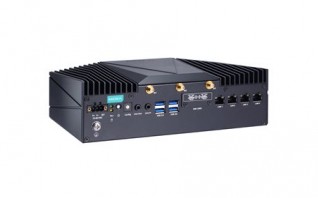

V2403C SERIES

x86 computer with Intel® 7th Gen Celeron® 3965U 2.2 GHz processor, 4 GbE ports, 4 COM ports, 4 DIs, 4 DOs, 1 HDMI/DP port, 1 mSATA slot, 2 2.5" SSD/HDD slots, 2 mPCIe slots, 4 USB ports, 12 to 48 VDC, -40 to 70°C operating temperature
v2403c-series
Intel® Celeron®/Intel® Core™ i3/i5/i7 high performance network video recorder for rolling stock applications
Multiple interfaces: Dual display (HDMI, DP), 4 serial ports, 4 GbE ports, 4 DIs, 4 DOs, 4 USB, and 2 Mini PCIe slots for wireless
Power management with Ignition on/off delay (external rotate switch)
E1 Mark, ISO 7637-2, and MIL-STD-810G compliant
Compliant with EN 50121-4

Computer

  • CPU: Intel® Celeron® Processor 3965U (2M Cache, 2.20 GHz)
  • Storage Slot: 2.5-inch HDD/SSD slots x 2 mSATA slots x 1
  • Supported OS: Windows 10 Embedded IoT Ent 2019 LTSC 64-bitWindows 10 Embedded IoT Ent 2021 LTSC 64-bitLinux Debian 9 imageLinux Debian 11/Ubuntu 20.04/CentOS 7.9 drivers
  • System Memory Slot: SODIMM DDR4 slot x 2
  • DRAM: 32 GB max
  • Graphics Controller: Intel® HD Graphics 610

Computer Interface

  • Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
  • Serial Ports: RS-232/422/485 ports x 4, software selectable (DB9 male)
  • Digital Output: DOs x 4
  • Digital Input: DIs x 4
  • USB 3.0: USB 3.0 hosts x 4, type-A connectors
  • Audio Input/Output: Line in x 1, Line out x 1, 3.5 mm phone jack
  • Video Output: HDMI x 1, HDMI connector (standard) DP x 1, DisplayPort connector (standard)
  • Wi-Fi Antenna Connector: RP-SMA x 3
  • Cellular Antenna Connector: SMA x 2 (optional)
  • GPS Antenna Connector: SMA x 1 (optional)
  • Expansion Slots: mPCIe slots x 2
  • SIM Format: Micro
  • Number of SIMs: 4

Digital Inputs

  • Connector: Screw-fastened Euroblock terminal
  • I/O Mode: DI
  • Isolation: 3k VDC
  • Sensor Type: Wet contact (NPN or PNP) Dry contact
  • Dry Contact: Logic 0: Short to GND Logic 1: Open
  • Wet Contact (DI to COM): Logic 0: 0 to 3 VDC Logic 1: 10 to 30 VDC

Digital Outputs

  • Connector: Screw-fastened Euroblock terminal
  • Current Rating: 200 mA per channel
  • I/O Type: Sink
  • Voltage: 0 to 30 VDC
  • Isolation: 3k VDC

LED Indicators

  • System: Power x 1 Storage x 1
  • LAN: 2 per port (10/100/1000 Mbps)
  • Serial: 2 per port (Tx, Rx)

Serial Interface

  • Baudrate: 50 bps to 115.2 kbps
  • Connector: DB9 male
  • ESD: Contact: 6 kV; Air: 8 kV (level 3)
  • Isolation: 2 kV
  • Data Bits: 5, 6, 7, 8
  • Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
  • Parity: None, Even, Odd, Space, Mark
  • Stop Bits: 1, 1.5, 2

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Power Parameters

  • Input Voltage: 12 to 48 VDC
  • Power Connector: Terminal block
  • Power Consumption (Max.): 70 W (max.)

Physical Characteristics

  • Housing: Aluminum
  • IP Rating: IP20
  • Dimensions (without ears): 250 x 75 x 150 mm (9.84 x 2.95 x 5.91 in)
  • Weight: 2,500 g (5.51 lb)
  • Installation: Wall mounting (standard)

Environmental Limits

  • Operating Temperature: -40 to 70°C (-40 to 158°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • EMC: EN 55032/35
  • Safety: EN 62368-1 IEC 62368-1 UL 62368-1
  • Railway: EN 50121-4
  • Shock: IEC 60068-2-27, IEC 61373, MIL-STD-810G
  • Vibration: IEC 60068-2-64, IEC 61373, MIL-STD-810G

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 464,506 hrs
  • Standards: Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 3 years
  • Details: See www.moxa.com/warranty

Power Ignition Control

  • Switch Type: Rotary (front panel)
  • Switch Settings: Setting 0: IGT function disabledSetting 1: PWR ON delay: 0.5 sec; PWR OFF delay: 30 secSetting 2: PWR ON delay: 1 sec; PWR OFF delay: 30 secSetting 3: PWR ON delay: 1 sec; PWR OFF delay: 60 secSetting 4: PWR ON delay: 2 sec; PWR OFF delay: 60 secSetting 5: PWR ON delay: 2 sec; PWR OFF delay: 90 secSetting 6: PWR ON delay: 3 sec; PWR OFF delay: 90 secSetting 7: PWR ON delay: 3 sec; PWR OFF delay: 150 secSetting 8: PWR ON delay: 4 sec; PWR OFF delay: 180 secSetting 9: PWR ON delay: 5 sec; PWR OFF delay: 180 sec

Available Models

Model No. Description Quantity
V2403C-KL1-T x86 computer with Intel® 7th Gen Celeron® 3965U 2.2 GHz processor, 4 GbE ports, 4 COM ports, 4 DIs, 4 DOs, 1 HDMI/DP port, 1 mSATA slot, 2 2.5" SSD/HDD slots, 2 mPCIe slots, 4 USB ports, 12 to 48 VDC, -40 to 70°C operating temperature
V2403C-KL3-T x86 computer with Intel® 7th Gen Core™ i3-7100U 2.4 GHz processor, 4 GbE ports, 4 COM ports, 4 DIs, 4 DOs, 1 HDMI/DP port, 1 mSATA slot, 2 2,5" SSD/HDD slots, 2 mPCIe slots, 4 USB ports, 12 to 48 VDC, -40 to 70°C operating temperature
V2403C-KL5-T x86 computer with Intel® 7th Gen Core™ i5-7300U 3.5 GHz processor, 4 GbE ports, 4 COM ports, 4 DIs, 4 DOs, 1 HDMI/DP port, 1 mSATA slot, 2 2.5" SSD/HDD slots, 2 mPCIe slots, 4 USB ports, 12 to 48 VDC, -40 to 70°C operating temperature
V2403C-KL7-T x86 computer with Intel® 7th Gen Core™ i7-7600U 3.9 GHz processor, 4 GbE ports, 4 COM ports, 4 DIs, 4 DOs, 1 HDMI/DP port, 1 mSATA slot, 2 2.5" SSD/HDD slots, 2 mPCIe slots, 4 USB ports, 12 to 48 VDC, -40 to 70°C operating temperature
