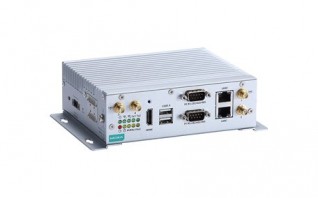

V2201 SERIES
x86 embedded computer with Intel Atom® E3815 processor, 1 HDMI port, 2 Ethernet ports, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD slot, 1 uSIM slot, 2 Mini PCIe slots, Linux Debian 8 preinstalled, -40 to 85°C operating temperature
Intel Atom® E3800 Series processor with three performance options
Dual Mini PCIe sockets for wireless modules
-40 to 85°C wide operating temperature
Variety of interfaces: 2 serial ports, 2 Ethernet LAN ports, 4 DIs, 4 DOs, SD, USB, HDMI, wireless
EN 61000-6-2 and EN 61000-6-4 certification Passed with AC/DC adapter. and meets the EMC standard for heavy industry
Up to 5 Grms anti-vibration protection and 100 g/11 ms anti-shock protection
Dual Mini PCIe sockets for wireless modules
-40 to 85°C wide operating temperature
Variety of interfaces: 2 serial ports, 2 Ethernet LAN ports, 4 DIs, 4 DOs, SD, USB, HDMI, wireless
EN 61000-6-2 and EN 61000-6-4 certification Passed with AC/DC adapter. and meets the EMC standard for heavy industry
Up to 5 Grms anti-vibration protection and 100 g/11 ms anti-shock protection
Computer
- CPU: Intel Atom® Processor E3815 (512K Cache, 1.46 GHz)
- System Memory Pre-installed: 2 GB DDR3L
- System Memory Slot: SODIMM DDR3/DDR3L slot x 1
- Supported OS: Windows Embedded Standard 7 (WS7E) 64-bitWindows 10 Embedded IoT Enterprise 2016 LTSB Entry 64-bitWindows 10 Embedded IoT Enterprise 2019 LTSC Entry 64-bitWindows 10 Embedded IoT Enterprise 2021 LTSC Entry 64-bitLinux Debian 9 OS image (Kernel 4.9)Linux Debian 11/Ubuntu 20.04/CentOS 7.9 drivers
- Storage Slot: mSATA slots x 1 SD 3.0 (SDHC/SDXC) socket x 1
Computer Interface
- Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
- Serial Ports: RS-232/422/485 ports x 2, software selectable (DB9 male)
- USB 2.0: USB 2.0 hosts x 2, type-A connectors
- USB 3.0: USB 3.0 hosts x 1, type-A connectors
- Digital Input: DIs x 4
- Digital Output: DOs x 4
- Expansion Slots: mPCIe slots x 2
- Video Output: HDMI x 1, HDMI connector (type A)
- Wi-Fi Antenna Connector: RP-SMA x 2
- Cellular Antenna Connector: SMA x 2
- Number of SIMs: 1
- SIM Format: Mini
- GPS Antenna Connector: SMA x 1
Digital Inputs
- Isolation: 3K VDC
- Connector: Screw-fastened Euroblock terminal
- Dry Contact: On: short to GND Off: open
- I/O Mode: DI
- Sensor Type: Dry contact Wet contact (NPN or PNP)
- Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDC
Digital Outputs
- Connector: Screw-fastened Euroblock terminal
- Current Rating: 200 mA per channel
- I/O Type: Sink
- Voltage: 24 to 30 VDC
LED Indicators
- System: SD slots x 1 Power x 1 Storage x 1 Programmable x 1
- Wireless Signal Strength: Cellular/Wi-Fi x 2
- LAN: 1 per port (10/100/1000 Mbps)
- Serial: 2 per port (Tx, Rx)
Serial Interface
- Baudrate: 50 bps to 115.2 kbps
- Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
- Isolation: N/A
- Parity: None, Even, Odd, Space, Mark
- Stop Bits: 1, 1.5, 2
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
- Input Voltage: 9 to 36 VDC
- Power Connector: Terminal block (for DC models)
- Power Consumption (Max.): 2000 mA @ 9 VDC
- Power Consumption: 18 W (max.)
Physical Characteristics
- Housing: Aluminum
- IP Rating: IP30
- Dimensions (with ears): 178 x 52.5 x 120.2 mm (7.01 x 2.07 x 4.73 in)
- Dimensions (without ears): 150 x 48.8 x 120.2 mm (5.91 x 1.92 x 4.73 in)
- Weight: 940 g (2.09 lb)
- Installation: Wall mounting
Environmental Limits
- Operating Temperature: -40 to 85°C (-40 to 185°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35 EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Safety: EN 60950-1 UL 508 UL 60950-1
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-64
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 408,275 hrs
- Standards: Telcordia (Bellcore), GB
Warranty
- Warranty Period: 3 years
- Details: See www.moxa.com/warranty
