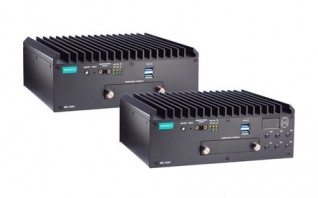

MC-3201 SERIES
Intel® Celeron® 6305E, 1.8 GHz computer with 2 DisplayPorts, 4 GbE ports, 2 RS/232/422/485 3-in-1 serial ports, 2 USB 3.0 ports, 4 USB 2.0 ports, TPM 2.0, 24 VDC power input, -20 to 55°C operating temperature at full CPU speed
11th Gen Intel® Core™ processor (Tiger Lake U)
2 built-in DDR4 memory slots; total capacity up to 32 GB
M.2 B key socket for 5G, GPS, and M.2 SATA SSD expansion modules
M.2 E key socket for Wi-Fi and BT expansion modules
Variety of interfaces: 2 serial ports, 4 Giga LAN ports, 2 USB 3.1 (type A) ports, and 4 USB 2.0 (type A) ports
Built-in TPM 2.0 module
Complies with IEC-60945 and IACS E10 standards
2 built-in DDR4 memory slots; total capacity up to 32 GB
M.2 B key socket for 5G, GPS, and M.2 SATA SSD expansion modules
M.2 E key socket for Wi-Fi and BT expansion modules
Variety of interfaces: 2 serial ports, 4 Giga LAN ports, 2 USB 3.1 (type A) ports, and 4 USB 2.0 (type A) ports
Built-in TPM 2.0 module
Complies with IEC-60945 and IACS E10 standards
Computer
- CPU: Intel® Celeron® 6305E processor (4M Cache, up to 1.8 GHz)
- Storage Slot: 2.5-inch HDD/SSD slots x 1
- System Memory Slot: SODIMM DDR4 2133 slots x 2, up to 32 GB max.
- Supported OS: Windows 10 IoT Enterprise LTSC 2021 Driver support: Linux Debian 11 (kernel 5.10), 64-bit
- Graphics Controller: Intel® Iris® Xe Graphics
- System Memory Pre-installed: 8 GB DDR4
Computer Interface
- Video Output: DisplayPort x 2 up to 3840 x 2160 resolution at 60 Hz
- USB 3.0: USB 3.0 hosts x 2, type-A connectors
- USB 2.0: USB 2.0 hosts x 4, type-A connectors
- Buttons: Reset button Power button
- Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
- Serial Ports: RS-232/422/485 ports x 2, software selectable (DB9 male)
- Audio Input/Output: Line in x 1, Line out x 1, 3.5 mm phone jack
- TPM: TPM v2.0
Serial Interface
- Connector: DB9 male
- Serial Standards: RS-232/422/485 (software selectable)
- Serial Ports: 2 x RS-232/422/485
- Flow Control: RTS/CTS, XON/XOFF
- Baudrate: 50 bps to 115.2 kbps
- ESD Protection: 4 kV contact, 8 kV air
- Data Bits: 5, 6, 7, 8
- Parity: None, Even, Odd, Space, Mark
- Stop Bits: 1, 1.5, 2
Ethernet Interface
- Magnetic Isolation Protection: 1.5 kV (built-in)
- 10/100/1000BaseT(X) Ports (RJ45 connector): 4
LED Indicators
- System: Power x 1 Storage x 1
- Serial: 2 per port (Tx, Rx)
- LAN: 2 per port (10/100/1000 Mbps)
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
Physical Characteristics
- Installation: Wall mounting
- Housing: Metal
- Dimensions: 220 x 80 x 170 mm (8.66 x 3.15 x 6.69 in)
- Weight: 3,000 g (6.61 lb)
Declaration
- Green Product: RoHS, CRoHS, WEEE
Power Parameters
- Input Voltage: 9 to 36 VDC
- Power Button: ON/OFF (rear panel) Reset button
Environmental Limits
- Operating Temperature: -20 to 55°C (-4 to 131°F)
- Storage Temperature: -30 to 60°C (-22 to 140°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Shock: IEC 60068-2-27
Standards and Certifications
- EMC: EN 55032/35
- Hazardous Locations: IECEx Zone 2
- Safety: UL 62368-1 EN 62368-1 IEC 62368-1 IEC 60950-1
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-64
- Green Product: RoHS, CRoHS, WEEE
Reliability
- Alert Tools: Built-in RTC (real-time clock) with lithium battery backup
MTBF
- Time: 323,270 hrs
- Standards: Telcordia (Bellcore) Standard TR/SR
Warranty
- Warranty Period: 3 years
- Details: See www.moxa.com/warranty
