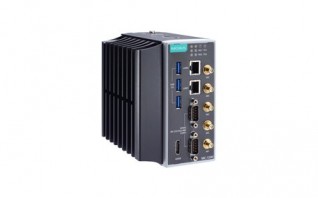

MC-1200 SERIES
Intel® Celeron® 3965U 2C/2T 2.2 GHz computer with 8 GB RAM, 2 Gigabit Ethernet ports, 2 RS/232/422/485 3-in-1 serial ports, 3 USB 3.0 ports, 3 Mini PCIe expansion slots, 1 HDMI port, TPM 2.0, 9 to 36 VDC power, -40 to 70°C operating temperature
3 Mini-PCIe sockets for Wi-Fi, 3G, LTE, GPS, and mSATA expansion modules
7th Gen Intel® Core™ processor (Kaby Lake U)
2 built-in DDR4 memory slots; total capacity up to 32 GB
Built-in TPM 2.0 module
Variety of interfaces: 2 serial ports, 2 Giga LANs, 3 USB 3.0 (type A) ports
7th Gen Intel® Core™ processor (Kaby Lake U)
2 built-in DDR4 memory slots; total capacity up to 32 GB
Built-in TPM 2.0 module
Variety of interfaces: 2 serial ports, 2 Giga LANs, 3 USB 3.0 (type A) ports
Computer
- CPU: Intel® Celeron® Processor 3965U (2M Cache, 2.20 GHz)
- Storage Slot: mSATA slots x 1, SATA 3.0, internal mini-PCIe socket
- System Memory Slot: SODIMM DDR4 slot x 2, up to 32 GB max.
- Supported OS: Linux Debian 9, 64-bit, kernel 4.9 (optional via CTOS) Windows 10 Enterprise LTSC 1809 64-bit (optional via CTOS)
- Graphics Controller: Intel® HD Graphics 610
Computer Interface
- Video Input: HDMI x 1, up to 3840 x 2160 resolution at 30 Hz
- USB 3.0: USB 3.0 hosts x 3, type-A connectors
- Buttons: Reset button
Serial Interface
- Connector: DB9 male
- Serial Standards: RS-232/422/485 (software selectable)
- Serial Ports: 2 x RS-232/422/485
- Flow Control: RTS/CTS, XON/XOFF
- Baudrate: 50 bps to 115.2 kbps
- ESD Protection: 4 kV contact, 8 kV air
Ethernet Interface
- Magnetic Isolation Protection: 1.5 kV (built-in)
- 10/100/1000BaseT(X) Ports (RJ45 connector): 2
LED Indicators
- System: Power x 1
- Serial: 2 per port (Tx, Rx)
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
Physical Characteristics
- Installation: Wall mounting (with optional kit), DIN-rail mounting
- Housing: Metal
- Dimensions: 134 x 60.4 x 120 mm (5.28 x 2.38 x 4.72 in)
- Weight: Product only: 1.40 kg (0.63 lb)
Declaration
- Green Product: RoHS, CRoHS, WEEE
Power Parameters
- Power Button: ON/OFF (rear panel) Reset button
- Input Voltage: 9 to 36 VDC
- Input Current: 8 A @ 9 VDC, 2 A @ 36 VDC
- Power Consumption: 72 W
Environmental Limits
- Operating Temperature: -40 to 70°C (-40 to 158°F)
- Storage Temperature: -40 to 75°C (-40 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Shock: IEC 60068-2-27
Standards and Certifications
- Safety: UL 60950-1, UL 62368-1, EN 60950-1, EN 62368-1
- EMC: EN 55032/35, CISPR 32, FCC Part 15B Class A
- Hazardous Locations: ATEX Zone 2, IECEx Zone 2, Class I Division 2
Reliability
- Alert Tools: Built-in RTC (real-time clock) with lithium battery backup
MTBF
- Time: 510,913 hrs
- Standards: Telcordia (Bellcore), GB
Warranty
- Warranty Period: 3 years
- Details: See www.moxa.com/warranty
