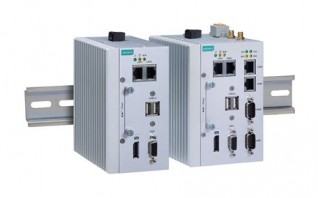

MC-1100 SERIES
x86 embedded computer with Intel Atom® dual-core E3826 processor, 4 GB RAM, 1 VGA port, 2 USB ports, 2 Gigabit Ethernet ports, 1 CFast socket, 1 SD slot, 1 DisplayPort, 12 to 36 VDC power, -40 to 70°C operating temperature
Intel Atom Quad-core E3845 processor
Dual storage (SD and CFast slots)
Dual independent displays (VGA + display port)
Variety of interfaces: 2 serial ports, 4 Giga LANs, 4 DIs, 4 DOs, 2 USB 2.0 ports
Mini-PCIe sockets for Wi-Fi, 3G, LTE, GPS
12 to 36 VDC, wide-range isolated power input
-40 to 70°C system operating temperature range
Moxa Smart Recovery utility to recover system from boot failure (W7E only)
Marine-grade and ATEX, IECEx Zone 2 compliance
Dual storage (SD and CFast slots)
Dual independent displays (VGA + display port)
Variety of interfaces: 2 serial ports, 4 Giga LANs, 4 DIs, 4 DOs, 2 USB 2.0 ports
Mini-PCIe sockets for Wi-Fi, 3G, LTE, GPS
12 to 36 VDC, wide-range isolated power input
-40 to 70°C system operating temperature range
Moxa Smart Recovery utility to recover system from boot failure (W7E only)
Marine-grade and ATEX, IECEx Zone 2 compliance
Computer
- CPU: Intel Atom® Processor E3826 (1M Cache, 1.46 GHz)
- Graphics Controller: Intel® HD Graphics
- System Memory Pre-installed: 4 GB DDR3L
- System Memory Slot: SODIMM DDR3/DDR3L slot x 1
- Supported OS: Linux Debian 8 (Linux kernel v4.1) Windows Embedded Standard 7 (WS7E) 64-bit Windows 10 Embedded IOT Ent 2016 LTSB
- Storage Slot: CFast slot x 1 SD slots x 1
Computer Interface
- Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
- USB 2.0: USB 2.0 hosts x 2, type-A connectors
- Video Output: DisplayPort x 1 VGA x 1, 15-pin D-sub connector (female)
LED Indicators
- System: Power x 1 Storage x 1
- LAN: 2 per port (10/100/1000 Mbps)
- Serial: 2 per port (Tx, Rx)
Serial Interface
- Baudrate: 50 bps to 115.2 kbps
- Connector: DB9 male
- Data Bits: 5, 6, 7, 8
- Flow Control: ADDC® (automatic data direction control) for RS-485 RTS/CTS, XON/XOFF
- Isolation: N/A
- Parity: None, Even, Odd, Space, Mark
Power Parameters
- Input Voltage: 11.4 to 36 VDC
- Power Connector: Terminal block (for DC models)
- Power Consumption: 30 W (max.)
Reliability
- Automatic Reboot Trigger: Built-in WDT
Physical Characteristics
- Housing: Metal
- Dimensions: 132 x 122 x 68 mm (5.2 x 4.81 x 2.68 in)
- Weight: 1,022 g (2.25 lb)
- Installation: DIN-rail mounting Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature: -40 to 70°C (-40 to 158°F)
- Storage Temperature (package included): -45 to 75°C (-49 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/24
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-8 PFMF IEC 61000-4-6 CS: 10 V IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
- Hazardous Locations: ATEX Zone 2 Class I Division 2 IECEx Zone 2
- Maritime: DNV-GL IEC 60945
- Radio Frequency: FCC
- Safety: UL 60950-1
Warranty
- Warranty Period: 3 years
- Details: See www.moxa.com/warranty
