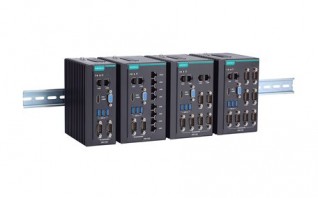

DRP-C100 SERIES
DIN-rail computer with Intel® Celeron® 6305E processor, 2 LAN ports, 2 serial ports, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 1 CFast slot, 1 SD slot, 12/24 VDC power input, Windows 10 LTSC 2021 preinstalled, -30 to 60°C operating temperature
DIN-rail mountable computers with fanless design
Intel® Celeron® or Intel® Core™ i5, or i7 processor
Rich interface options for up to 8 serial and 10 LAN ports
Compact size to fit most field applications
-30 to 60°C operating temperature range
Intel® Celeron® or Intel® Core™ i5, or i7 processor
Rich interface options for up to 8 serial and 10 LAN ports
Compact size to fit most field applications
-30 to 60°C operating temperature range
Computer
- CPU: DRP-C100-C1 Models: Intel® Celeron® 6305E (Dual core, 4M cache, 1.80 GHz)DRP-C100-C5 Models: Intel® Core™ Processor i5-1145G7E (Quad core, 8M cache,2.60 GHz, Base:1.50 GHz)DRP-C100-C7 Models: Intel® Core™ Processor i7-1185G7E (Quad core, 12M cache,2.80 GHz, Base:1.80 GHz)
- System Memory Slot: SODIMM DDR4 slots x 1, up to 32 GB max.
- System Memory Pre-installed: 8 GB DDR4
- Storage Slot: CFast slot x 1 (SATAIII interface) SD slots x 1, SD 3.0 interface (SDHC/SDXC)
- Storage Pre-installed: DRP-C100-C1-T-Win10/C5-T-Win10/C7-T-Win10 Models: 64 GB CFast card
- Supported OS: Windows Images and Drivers Supported:- Windows 10 IoT Enterprise LTSC 2021 64-bit- Windows 11 Professional 64-bit Linux Drivers Supported:- Debian 11 (kernel 5.10)- Ubuntu 22.04 LTS (kernel 5.15)- RHEL 9 (kernel 5.14)
- Graphics Controller: Intel® UHD Graphics
Computer Interface
- Ethernet Ports: DRP-C100-C1-8L-T/C5-8L-T/C7-8L-T: Auto–sensing 10/100/1000 Mbps ports (RJ45 connector) x 10DRP-C100-C1-2L4C-T/C5-2L4C-T/C7-2L4C-T: Auto–sensing 10/100/1000 Mbps ports (RJ45 connector) x 4All Other Models: Auto–sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
- Serial Ports: DRP-C100-C1-6C-T/C5-6C-T/C7-6C-T: RS-232/422/485 ports x 8, software selectable (DB9 male) x 8DRP-C100-C1-2L4C-T/C5-2L4C-T/C7-2L4C-T: RS-232/422/485 ports x 6, software selectable (DB9 male) x 6All Other Models: RS-232/422/485 ports x 2, software selectable (DB9 male) x 2
- USB 3.0: USB 3.0 hosts x 3, type-A connectors
- TPM: TPM v2.0
- Video Output: HDMI 2.0b x 1, (type A connector)VGA x 1, 15-pin D-sub connector (female)
- Buttons: Reset button Power button
Ethernet Interface
- Magnetic Isolation Protection: 1.5 kV (built-in)
Serial Interface
- Baudrate: 50 bps to 115.2 kbps
- Connector: DB9 male
- Data Bits: 5, 6, 7, 8
- Parity: None, Even, Odd, Space, Mark
- Stop Bits: 1, 1.5, 2
- Flow Control: RTS/CTS, XON/XOFF
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
LED Indicators
- System: Power x 1 Storage x 1
- LAN: 2 per port (10/100/1000 Mbps)
Power Parameters
- Input Voltage: 12/24 VDC
- Power Connector: Screw-fastened Euroblock terminal
- Power Consumption: 90 W
Physical Characteristics
- Housing: Metal
- IP Rating: IP20
- Dimensions: DRP-C100-C1-T/C1-T-Win10/DRP-C100-C5-T/C5-T-Win10/DRP-C100-C7-T/-C7-TWin10:60 x 130 x 150 mm (2.36 x 5.12 x 5.91 in)All Other Models: 94 x 130 x 150 mm (3.70 x 5.12 x 5.91 in)
- Weight: DRP-C100-C1-T/C1-T-Win10/DRP-C100-C5-T/C5-T-Win10/DRP-C100-C7-T/-C7-TWin10:1,213 g (2.67 lb)All Other Models: 1.612 g (3.55 lb)
- Installation: DIN-rail mounting
Declaration
- Green Product: RoHS, CRoHS, WEEE
Environmental Limits
- Operating Temperature: -30 to 60°C (-22 to 140°F)
- Storage Temperature: -40 to 75°C (-40 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A BSMI
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
- Safety: UL 62368-1 (CB) BSMI
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-64
- Package Drop Test: ISTA 1A
- Package Vibration Test: ISTA 1A
Reliability
- Time Source: Built-in RTC (real-time clock) with lithium-battery backup
- Automatic Reboot Trigger: Built-in WDT
MTBF
- Time: 584.337 hrs
- Standards: Telcordia (Bellcore), GB
Warranty
- Warranty Period: 3 years
- Details: See www.moxa.com/warranty
