PRP/HSR module
4-port Gigabit LAN module
8-port Giga LAN module

Ethernet Interface

• 10/100/1000BaseT(X) Ports (RJ45 connector): 4
• Magnetic Isolation Protection: 1.5 kV (built-in)

Physical Characteristics

• Dimensions: 213.31 x 95 mm (8.398 x 3.74 in)
• Weight: 335 g (0.74 lb)

Environmental Limits

• Operating Temperature: -25 to 55°C (-13 to 131°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)

Declaration

• Green Product: RoHS, CRoHS, WEEE

MTBF

• Time: 2,126,091 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 3 years
• Details: See www.moxa.com/warranty

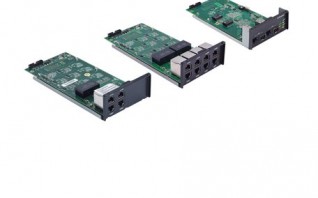

Available Models

Model No.	Description	Quantity
DE-LN04-RJ	4-port 10/100/1000 Mbps PCIe LAN module
DE-LN08-RJ	8-port 10/100/1000 Mbps PCIe LAN module
DE-PRP-HSR-EF	2-port 100/1000 Mbps PCIe PRP/HSR LAN Module
