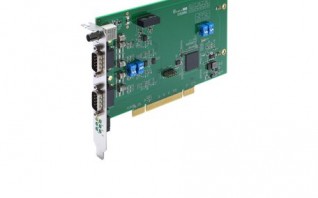

DA-IRIGB-B-S SERIES EXPANSION MODULES

IRIG-B expansion module, PCI interface, 1 fiber IRIG-B input, 1 DB9M input/output, 1 DB9M output, -40 to 75°C operating temperature
da-irigb-b-s-series-expansion-modules
2-port IRIG-B time-synchronization module
4-port IRIG-B time-synchronization module

IRIG-B Interface

  • Interface: 2 x DB9 male and 1x ST Fiber port
  • Input Signal: Single or Differential
  • Input Signal Level: Single: High -> Open, Low -> Short to GND Differential: D+ - D- > 0.2 V, RxD is High, D+ - D-
  • Accuracy (Time Synchronization): ±1 µs
  • Accuracy (Free Running): ±500 ms @ 24 hr

Hardware Requirements

  • Bus: PCI slots x 1

Physical Characteristics

  • Dimensions (without ears): 167.64 x 106.68 mm (6.6 x 4.2 in)
  • Weight: 120 g (0.26 lb)

Environmental Limits

  • Operating Temperature: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 1,210,356 hrs
  • Standards: Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 3 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
DA-IRIG-B-S-02-T IRIG-B expansion module, PCI interface, 1 fiber IRIG-B input, 1 DB9M input/output, 1 DB9M output, -40 to 75°C operating temperature
