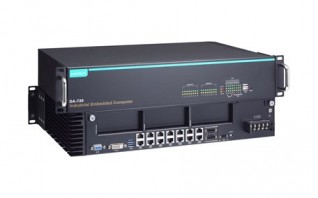

IEC 61850-3, IEEE 1613, and IEC 60255 compliant for power substation automation systems
EN 50121-4 compliant for railway wayside applications
6th Gen Intel® Core™ i7/i5 CPU (Skylake)
2 built-in DDR4 memory sockets
1 mSATA for OS and 1 SATA III for storage expansion
14 Gigabit Ethernet ports for network redundancy
3 PCIe expansion slots for expansion modules
Highly reliable design, supporting dual power and PRP/HSR technology (with PRP/HSR expansion module)
Security options such as TPM 2.0, UEFI Secure Boot, and physical security
PTP (IEEE 1588) and IRIG-B time synchronization (with an IRIG-B expansion module)

Computer

• CPU: Intel® Core™ i5-6300U Processor (3M Cache, up to 3.00 GHz)
• Graphics Controller: Intel® HD Graphics 520
• System Memory Slot: SODIMM DDR4 slot x 2
• Supported OS: Linux Debian 8 (Linux kernel v4.1) Windows 10 Embedded IoT Ent 2016 LTSB High End EPKEA Windows 10 Embedded IoT Ent 2016 LTSB Value EPKEA Note: W10 available by CTOS
• Storage Slot: 2.5-inch HDD/SSD slots x 1 mSATA slots x 1, internal mini-PCIe socket
• System Memory Pre-installed: DA-720 LX Series: 4 GB DDR4 4 GB DDR4
• Pre-installed OS: DA-720 LX Series: Linux Debian 8 64-bit Linux Debian 8 64-bit
• Storage Pre-installed: DA-720 LX Series: 8 GB mSATA 8 GB mSATA

Computer Interface

• Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 14
• Serial Ports: RS-232/422/485 ports x 2, software-selectable (terminal block)
• USB 2.0: USB 2.0 hosts x 2, type-A connectors (front)
• USB 3.0: USB 3.0 hosts x 2, type-A connectors (rear)
• Expansion Slots: Proprietary PCIe slot x 3
• Video Input: DVI-D x 1, 29-pin DVI-D connectors (female) VGA x 1, 15-pin D-sub connector (female)
• TPM: TPM v2.0
• Secure Boot: UEFI

LED Indicators

• System: Power x 1 Storage x 1 Programmable x 4
• LAN: 1 per port (10/100/1000 Mbps)
• Serial: 2 per port (Tx, Rx)

Serial Interface

• Baudrate: 50 bps to 115.2 kbps
• Connector: Terminal block
• ESD: 8 kV (level 4)
• Isolation: 2 kV
• Serial Standards: RS-232/422/485
• Surge: 2 kV: line-to-line 4 kV: line-to-ground

Serial Signals

• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
• RS-232: TxD, RxD, RTS, CTS, GND

Power Parameters

• Input Current: 100 to 240 VAC, 50 to 60 Hz, 0.82 A (max)100 to 240 VDC, 0.84 A (max)
• Input Voltage: 100 to 240 VAC, 110 to 240 VDC
• Power Button: Reset button (front panel) ON/OFF (rear panel)

Physical Characteristics

• Housing: Metal
• Dimensions (without ears): 440 x 301 x 90 mm (17.32 x 12.20 x 3.54 in)
• Weight: 6,500 g (14.33 lb)
• Installation: 19-inch rack mounting

Environmental Limits

• Operating Temperature: -25 to 55°C (-13 to 131°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8: 20 A/m IEC 61000-4-11
• Power Substation: IEC 61850-3 IEEE 1613
• Protection Relay: IEC 60255
• Railway: EN 50121-4
• Safety: EN 62368-1 IEC 60950-1 UL 60950-1
• Shock: IEC 60870-2-2, IEC 61850-3 Edition 1.0
• Vibration: IEC 61850-3, IEC 60870-2-2

Declaration

• Green Product: RoHS, CRoHS, WEEE

MTBF

• Time: 138,319 hrs
• Standards: Telcordia SR332

Warranty

• Warranty Period: 3 years
• Details: See www.moxa.com/warranty

Available Models

Model No.	Description	Quantity
DA-720-C7-DPP	Rackmount computer with Core i7-6600U, 2.6 GHz processor, dual-core processor, 14 Gigabit Ethernet ports, 2 isolated RS-232/422/485 ports, 4 USB ports, 3 PCIe expansion slots, 1 VGA port, 1 DVI-D port, IEC 61850-3 compliant, -25 to 55°C operating temperature
DA-720-C7-DPP-LX	Rackmount computer with Core i7-6600U, 2.6 GHz processor, dual-core processor, 4 GB RAM and Linux Debian 8 64-bit, 14 Gigabit Ethernet ports, 2 isolated RS-232/422/485 ports, 4 USB ports, 1 mSATA slot with 8 GB SSD preinstalled, 3 PCIe expansion slots, 1 VGA port, 1 DVI-D port, IEC 61850-3 compliant, -25 to 55°C operating temperature
DA-720-C5-DPP-LX	Rackmount computer with Core i5-6300U, 2.4 GHz processor, dual-core processor, 4 GB RAM and Linux Debian 8 64-bit, 14 Gigabit Ethernet ports, 2 isolated RS-232/422/485 ports, 4 USB ports, 1 mSATA slot with 8 GB SSD preinstalled, 3 PCIe expansion slots, 1 VGA port, 1 DVI-D port, IEC 61850-3 compliant, -25 to 55°C operating temperature
DA-720-C5-DPP	Rackmount computer with Core i5-6300U, 2.4 GHz processor, dual-core processor, 14 Gigabit Ethernet ports, 2 isolated RS-232/422/485 ports, 4 USB ports, 3 PCIe expansion slots, 1 VGA port, 1 DVI-D port, IEC 61850-3 compliant, -25 to 55°C operating temperature
