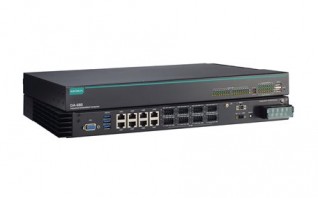

DA-680 SERIES

IEC 61850-3 1U rackmount computer with 8th Gen Intel® Core™ i3-8145UE processor, 8 GbE ports, 8 RS-485 serial ports, 2 DOs, 1 VGA port, 3 USB 3.0 ports, 2 USB 2.0 ports, 1 mSATA slot, 1 SATA slot, 100 to 240 VAC/VDC dual power inputs, -25 to 55°C operating temperature
da-680-series
IEC 61850-3, IEEE 1613, and IEC 60255 compliant for power substation automation systems
Built-in DDR4 memory socket that supports 16 GB capacity
Supports 100 to 240 VAC/VDC power inputs (single-power and dual-power models available)

Computer

  • CPU: Intel® Core™ i3-8145UE Whiskey Lake processor
  • System Memory Slot: DDR4 (non-ECC) slots x 1
  • DRAM: 16 GB max
  • Graphics Controller: Intel® UHD Graphics 620
  • Storage Slot: 2.5-inch HDD/SSD slots x 1 mSATA slots x 1
  • Supported OS: Windows 10 IoT Ent 2021 LTSC, version 21H2 Linux Debian 11 Ubuntu 20.04 CentOS 7.9

Computer Interface

  • USB 2.0: USB 2.0 hosts x 3, type-A connectors 2 ports on the front panel, 1 port inside the computer
  • USB 3.0: USB 3.0 hosts x 3, type-A connectors 3 ports on the rear panel
  • Video Output: VGA x 1, DB-15 connector
  • Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 8
  • Time Synchronization: IRIG-B (terminal block)
  • TPM: TPM v2.0
  • Serial Ports: 2-wire RS-485/4-wire RS-485 x 8 (terminal block)

Digital Outputs

  • Connector: Screw-fastened Euroblock terminal
  • Current Rating: 200 mA per channel
  • I/O Type: Sink
  • Voltage: 24 VDC nominal, open collector to 30 VDC
  • Isolation: 3k VDC

LED Indicators

  • System: Programmable x 6 Storage x 1 Power x 1 Power Fail x 2 (Power Fail 1/2)
  • LAN: 2 per port (10/100/1000 Mbps)
  • Serial: 2 per port (Tx, Rx)

Serial Interface

  • Baudrate: 50 bps to 115.2 kbps
  • Connector: Terminal block
  • Serial Standards: RS-485 2-wire / 4-wire

Serial Signals

  • RS-485-2w: Data+, Data-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

IRIG-B Interface

  • Input Signal: Differential
  • Time-code Input: Based On: IRIG standard 200-04 IEEE 1344
  • Accuracy (Time Synchronization): ±1 µs
  • Accuracy (Free Running): ±500 ms @ 24 hr

Power Parameters

  • Input Current: 100 to 240 VAC, 50/60 Hz, 1.05 A (max) 100 to 240 VDC, 0.7 A (max)
  • Power Button: ON/OFF (rear panel)
  • Reset Button: Reset button (front panel)

Physical Characteristics

  • Housing: Metal
  • Dimensions (without ears): 440 x 335.5 x 44 mm (17.32 x 13.21 x 1.73 in)
  • Weight: 4659.5 g (10.27 lb)
  • Installation: 19-inch rack mounting

Environmental Limits

  • Operating Temperature: -25 to 55°C (-13 to 131°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/35 EN 61000-6-2/-6-4
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF: 100 A/m at 50 Hz IEC 61000-4-11
  • Power Substation: IEC 61850-3 IEEE 1613
  • Protection Relay: IEC 60255
  • Shock: IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2
  • Safety: UL 62368-1 IEC 62368-1

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 238,154 hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 3 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
DA-680-I-16-WL3-HH IEC 61850-3 1U rackmount computer with 8th Gen Intel® Core™ i3-8145UE processor, 8 GbE ports, 16 RS-485 serial ports, 2 DOs, 1 VGA port, 3 USB 3.0 ports, 2 USB 2.0 ports, 1 mSATA slot, 1 SATA slot, 100 to 240 VAC/VDC dual power inputs, -25 to 55°C operating temperature
DA-680-I-8-WL3-HH IEC 61850-3 1U rackmount computer with 8th Gen Intel® Core™ i3-8145UE processor, 8 GbE ports, 8 RS-485 serial ports, 2 DOs, 1 VGA port, 3 USB 3.0 ports, 2 USB 2.0 ports, 1 mSATA slot, 1 SATA slot, 100 to 240 VAC/VDC dual power inputs, -25 to 55°C operating temperature
DA-680-I-16-WL3-H IEC 61850-3 1U rackmount computer with 8th Gen Intel® Core™ i3-8145UE processor, 8 GbE ports, 16 RS-485 serial ports, 2 DOs, 1 VGA port, 3 USB 3.0 ports, 2 USB 2.0 ports, 1 mSATA slot, 1 SATA slot, 100 to 240 VAC/VDC single power input, -25 to 55°C operating temperature
DA-680-I-8-WL3-H IEC 61850-3 1U rackmount computer with 8th Gen Intel® Core™ i3-8145UE processor, 8 GbE ports, 8 RS-485 serial ports, 2 DOs, 1 VGA port, 3 USB 3.0 ports, 2 USB 2.0 ports, 1 mSATA slot, 1 SATA slot, 100 to 240 VAC/VDC single power input, -25 to 55°C operating temperature
