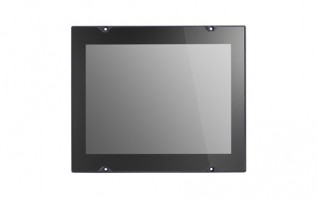

MPC-2121 SERIES
12-inch panel computer with Intel Atom® E3845 1.91 GHz processor, 4 GB RAM, 1000-nit LCD with multi-touch, 24 to 110 VDC, IP66, EN 50155, -40 to 70°C operating temperature, conformal coating
12-inch panel computer
Intel Atom® processor E3845 1.91 GHz
1000-nit sunlight-readable LCD
-40 to 70°C wide-temperature design, no fan or heater
EN 50155:2017 Compliant
Intel Atom® processor E3845 1.91 GHz
1000-nit sunlight-readable LCD
-40 to 70°C wide-temperature design, no fan or heater
EN 50155:2017 Compliant
Computer
- CPU: Intel Atom® Processor E3845 (2M Cache, 1.91 GHz)
- Graphics Controller: Intel® HD Graphics
- System Memory Pre-installed: 4 (8GB Max.) GB DDR3L
- System Memory Slot: SODIMM DDR3/DDR3L slot x 1
- Pre-installed OS: OS is not pre-installed
- Supported OS: Windows 10 Pro 64-bit Windows 10 Embedded IoT Ent 2019 LTSC 64-bit Windows 10 Embedded IoT Ent 2016 LTSB Windows 7 Pro for Embedded Systems Windows Embedded Standard 7 (WS7P) 64-bit Linux Debian 9
- Expansion Slots: Mini PCIe
- Storage Slot: CFast slot x 1 SD slots x 1, SD 3.0 (SDHC/SDXC) socket
Computer Interface
- Ethernet Ports: Auto-sensing 10/100 Mbps ports (M12 D-coded 4P) x 2
- Serial Ports: RS-232/422/485 ports x 1 (M12 A-code 12P)
- USB 2.0: USB 2.0 hosts x 1 (M12 A-coded 5P)
- Digital Input: DIs x 4 (M12 A-code)
- Digital Output: DOs x 2 (M12 A-code)
LED Indicators
- System: Power x 1
Display
- Active Display Area: 245.76 (H) x 184.32 (V) mm
- Aspect Ratio: 4:3
- Contrast Ratio: 1000:1
- Light Intensity (Brightness): 1000 cd/m2
- Max. No. of Colors: 16.2M (8-bit/color)
- Panel Size: 12-inch viewable image
- Pixel Pitch (RGB): 0.240 (H) x 0.240 (V) mm
- Pixels: 1024 x 768
- Response Time: 5 ms (gray to gray)
- Viewing Angles: 176°/176°
Touch Function
- Touch Type: Capacitive Touch (PCAP)
- Touch Support Points: 4 points
- Glove Support: Yes
Serial Interface
- Baudrate: 50 bps to 115.2 kbps
- Data Bits: 5, 6, 7, 8
- Flow Control: RTS/CTS, XON/XOFF
- Parity: None, Even, Odd, Space, Mark
- Stop Bits: 1, 1.5, 2
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
- Input Voltage: 24 to 110 VDC
Physical Characteristics
- Housing: Metal
- IP Rating: IP66
- Dimensions: 297 x 238 x 59 mm (11.69 x 9.37 x 2.32 in)
- Weight: 2850 g (6.28 lb)
Environmental Limits
- Operating Temperature: -40 to 70°C (-40 to 158°F)
- Storage Temperature (package included): -40 to 70°C (-40 to 158°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Mechanical Protection Rating: IEC 60529, IP code
- Shock: EN 50155 standard
- Vibration: EN 50155 standard
- EMC: EN55032/35
- Safety: IEC 60950-1, IEC 62368-1, UL 62368-1
Declaration
- Green Product: RoHS, CRoHS, WEEE
Warranty
- Warranty Period: LCD: 1 year System: 3 years
- Details: See www.moxa.com/warranty
