MPC-2070 SERIES

7-inch panel computer, Intel Atom® E3826 1.46 GHz processor, 350-nit LCD with multi-touch, 10 to 36 VDC, IP66 in front, -40 to 70°C operating temperature, 4 GB RAM
mpc-2070-series

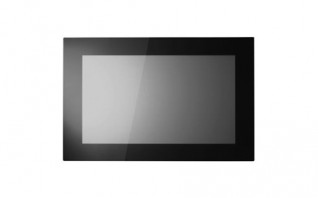

7-inch panel computer
Intel Atom® processor E3826 1.46 GHz
-40 to 70°C wide-temperature design, no fan or heater
1000-nit sunlight-readable LCD
Glove-friendly, multi-touch screen
Class 1 Division 2, ATEX Zone 2, and IECEx compliant Certification is underway for DNV, ATEX, and IECEx. Please check Moxa’s website for the most up-to-date certification status.
Wide-range 10 to 36 VDC power input

Computer

  • CPU: Intel Atom® E3826 processor (1M cache, 1.46 GHz)
  • Graphics Controller: Intel® HD Graphics
  • System Memory Pre-installed: 4 GB DDR3L
  • System Memory Slot: SODIMM DDR3/DDR3L slot x 1
  • Pre-installed OS: OS is not pre-installed
  • Supported OS: Windows 7 Pro for Embedded Systems Windows Embedded Standard 7 (WS7P) 64-bit Windows 10 Pro 64-bit Windows 10 Embedded IoT Ent 2016 LTSB Entry 64-bit Linux Debian 9
  • Storage Slot: CFast slot x 1 SD slots x 1, SD 3.0 (SDHC/SDXC) socket

Computer Interface

  • Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
  • Serial Ports: RS-232/422/485 ports x 2, software selectable (DB9 male)
  • USB 2.0: USB 2.0 hosts x 2, type-A connectors
  • Digital Input: DIs x 4
  • Digital Output: DOs x 4

LED Indicators

  • System: Power x 1
  • LAN: 2 per port (10/100/1000 Mbps)

Display

  • Active Display Area: 152.4 (H) x 91.44 (V) mm
  • Aspect Ratio: 16:9
  • Contrast Ratio: 600:1
  • Light Intensity (Brightness): 350 cd/m2
  • Max. No. of Colors: 16.2M (8-bit/color)
  • Panel Size: 7-inch viewable image
  • Panel Type: TN
  • Pixel Pitch (RGB): 0.1905 (H) x 0.1905 (V) mm
  • Pixels: 800 x 480
  • Response Time: 5 ms (gray to gray)
  • Viewing Angles: 140°/120°

Touch Function

  • Touch Type: Capacitive Touch (PCAP)
  • Touch Support Points: 4 points
  • Glove Support: Yes

Serial Interface

  • Baudrate: 50 bps to 115.2 kbps
  • Data Bits: 5, 6, 7, 8
  • Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
  • Parity: None, Even, Odd, Space, Mark
  • Stop Bits: 1, 1.5, 2

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Power Parameters

  • Input Voltage: 10 to 36 VDC
  • Power Consumption: 40 W (max.)

Physical Characteristics

  • Housing: Metal
  • IP Rating: IP66, front IP20, rear
  • Dimensions: 200 x 140 x 45 mm (7.9 x 5.5 x 1.8 in)
  • Weight: 1,400 g (3.09 lb)

Environmental Limits

  • Operating Temperature: -40 to 70°C (-40 to 158°F)
  • Storage Temperature (package included): -40 to 70°C (-40 to 158°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/24
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Environmental Testing: IEC 60068-2-1, DNV-CG-0339 IEC 60068-2-2, DNV-CG-0339 IEC 60068-2-2, IEC 60945 IEC 60068-2-30, IEC 60945
  • Hazardous Locations: ATEX Class I Division 2 IECEx
  • Maritime: DNV
  • Mechanical Protection Rating: IEC 60529, IP code
  • Safety: EN 60950-1 IEC 60950-1 UL 60950-1
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6 IEC 60068-2-6, IEC 60945 IEC 60068-2-64, DNV-CG-0339

Declaration

  • Green Product: RoHS, CRoHS, WEEE

Warranty

  • Warranty Period: LCD: 1 year System: 3 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
MPC-2070-E2-T-W7E 7-inch panel computer, Intel Atom® E3826 1.46 GHz processor, 1000-nit LCD with multi-touch, 10 to 36 VDC, IP66 in front, -40 to 70°C operating temperature, 4 GB RAM, 1 CFast socket with 32 GB card preinstalled, W7E OS
MPC-2070-E2-T 7-inch panel computer, Intel Atom® E3826 1.46 GHz processor, 1000-nit LCD with multi-touch, 10 to 36 VDC, IP66 in front, -40 to 70°C operating temperature, 4 GB RAM
MPC-2070-E2-LB-T-W7E 7-inch panel computer, Intel Atom® E3826 1.46 GHz processor, 350-nit LCD with multi-touch, 10 to 36 VDC, IP66 in front, -40 to 70°C operating temperature, 4 GB RAM, 1 CFast socket with 32 GB card preinstalled, W7E OS
MPC-2070-E2-LB-T 7-inch panel computer, Intel Atom® E3826 1.46 GHz processor, 350-nit LCD with multi-touch, 10 to 36 VDC, IP66 in front, -40 to 70°C operating temperature, 4 GB RAM
