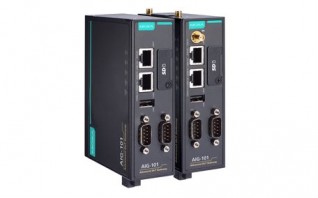

AIG-101 SERIES

2-port Modbus RTU/ASCII/TCP to MQTT/Azure/AWS cloud-ready gateway with -40 to 70°C operating temperature
aig-101-series
Supports generic MQTT client
Supports MQTT connection with built-in device SDKs for Azure/AWS cloud
Supports Modbus RTU/ASCII/TCP master/client
Supports Modbus TCP server
Built-in network traffic monitoring and diagnostic tool for easy troubleshooting
Supports data buffering using store and forward and datalogger
Seamless integration with Moxa ioLogik /UPort devices to easily extend I/O and serial interfaces
Built-in data processing function to eliminate programming efforts
-40 to 70°C operating temperature range
LTE Cat.1 US, EU, and APAC models available

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 2, Auto MDI/MDI-X connection
  • Magnetic Isolation Protection: 1.5 kV (built-in)

Ethernet Software Features

  • Industrial Protocols: Modbus TCP Client (Master) / Server (Slave) Generic MQTT Azure IoT Device AWS IoT Core
  • Configuration Options: Web Console (HTTP/HTTPS)
  • Time Management: NTP Client GPS

Serial Interface

  • No. of Ports: 2
  • Connector: DB9 male
  • Serial Standards: RS-232/422/485
  • Baudrate: 300 bps to 921.6 kbps
  • Data Bits: 7, 8
  • Parity: None, Even, Odd, Space, Mark
  • Stop Bits: 1, 2
  • Flow Control: RTS/CTS

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Cellular Interface

  • Cellular Standards: LTE Cat. 1
  • Cellular Antenna Connectors: SMA x 2
  • SIM Format: Nano SIM
  • No. of SIMs: 2
  • GPS Antenna Connectors: SMA x 1
  • Band Options: US Model:LTE Bands: Band 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz) / Band 12 (700 MHz) / Band 13 (700 MHz) / Band 14 (700 MHz) / Band 66 (1700 MHz) / Band 71 (600 MHz)UMTS Bands: 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz)Carrier Approval: Verizon, AT&TEU Model:LTE Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) / Band 7 (2600 MHz) / Band 8 (900 MHz) / Band 20 (800 MHz) / Band 28 (700 MHz)UMTS Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) Band 8 (900 MHz)AP Model:LTE Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz) / Band 28 (700 MHz)UMTS Bands: Band 1 (2100 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz)

Serial Software Features

  • Industrial Protocols: Modbus RTU/ASCII Master

Modbus RTU/ASCII

  • Mode: Master
  • Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Commands: 256 per port

Modbus TCP

  • Mode: Server (Slave) Client (Master)
  • Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Client Connections: 4
  • Max. No. of Server Connections: 64
  • Max. No. of Commands: 1500

Generic MQTT Client

  • Versions Supported: v3.1.1 v3.1
  • QoS Levels: 0, 1, 2
  • Authentication Methods: Username and password
  • Secure Transmission: TLS 1.0 TLS 1.1 TLS 1.2
  • Native Capabilities: Keep Alive Retain Message Clean Session Will and Testament
  • Moxa Functions: Store and Forward Custom Payload Remote API Invocation

Azure IoT Device

  • Connection Protocols Supported: MQTT MQTT over WebSockets AMQP AMQP over WebSockets
  • Authentication Methods: Symmetric Key X.509 Certificate
  • Azure Direct Methods: Reboot Software Upgrade Remote API Invocation
  • Moxa Functions: Store and Forward Custom Payload

AWS IoT Core

  • QoS Levels: 0,1
  • Authentication Methods: X.509 Certificate Private Key Trusted Root CA
  • Native Capabilities: Keep Alive
  • Moxa Functions: Store and Forward Custom Payload
  • Commands Invokable Via Jobs: Reboot Software Upgrade Remote API Invocation

Memory

  • microSD Slot: Up to 32 GB (SD 2.0 compatible) Max. No. of Tags Supported: 1500

Power Parameters

  • Input Voltage: 9 to 36 VDC
  • Power Connector: Screw-fastened Euroblock terminal
  • Power Consumption: 8 W (max.)

Physical Characteristics

  • Dimensions: 128.5 x 89.1 x 41 mm (5.06 x 3.51 x 1.61 in)
  • Housing: Metal
  • Installation: DIN-rail mounting Wall mounting (with optional kit)
  • Weight: AIG-101-T: 492 g (1.08 lb)AIG-101-T-AP/EU/US: 512 g (1.13 lb)

Environmental Limits

  • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Operating Temperature: -40 to 70°C (-40 to 158°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)

Standards and Certifications

  • EMC: EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Safety: IEC 62368-1 UL 62368-1 EN 62368-1
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-64 5 Grms @ 5 to 500 Hz, random wave, 1 hr per axis (without USB devices attached)
  • Cellular Standards: EN 303 413 (GPS) EN 301 908-1 (WCDMA/LTE) EN 301 908-2/-13 (WCDMA/LTE) EN 301 489-1/-19 EN 301 489-1/-52 EN 62311
  • Radio Frequency: FCC PTCRB RCM
  • Carrier Approvals: Verizon AT&T
  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 566,458 hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
AIG-101-T-US 2-port Modbus RTU/ASCII/TCP to MQTT/Azure/AWS cloud-ready gateway with built-in LTE Cat. 1 module for the U.S. region, -40 to 70°C operating temperature
AIG-101-T-AP 2-port Modbus RTU/ASCII/TCP to MQTT/Azure/AWS cloud-ready gateway with built-in LTE Cat. 1 module for the Asia-Pacific region, -40 to 70°C operating temperature
AIG-101-T-EU 2-port Modbus RTU/ASCII/TCP to MQTT/Azure/AWS cloud-ready gateway with built-in LTE Cat. 1 module for the EU region, -40 to 70°C operating temperature
AIG-101-T 2-port Modbus RTU/ASCII/TCP to MQTT/Azure/AWS cloud-ready gateway with -40 to 70°C operating temperature
