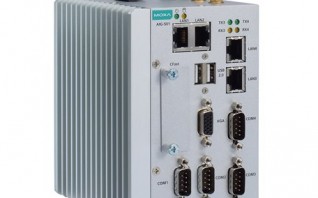

AIG-501 SERIES
4-port Modbus to Azure advanced IIoT gateways with Intel Atom® quad-core 1.91 GHz processor, Azure IoT Edge, LTE Cat. 4 module for Asia-Pacific region, -40 to 70°C operating temperature
Simplifies data acquisition and device management via the ThingsPro Edge software
Seamless integration with ThingsPro Edge and Azure IoT Edge enables easy, reliable, yet secure cloud connectivity
Supports easy device-provisioning with the ThingsPro Proxy utility
Provides robust OTA function to prevent system failure during software upgrades
Equipped with secure boot to prevent malicious software-injection attacks
Seamless integration with ThingsPro Edge and Azure IoT Edge enables easy, reliable, yet secure cloud connectivity
Supports easy device-provisioning with the ThingsPro Proxy utility
Provides robust OTA function to prevent system failure during software upgrades
Equipped with secure boot to prevent malicious software-injection attacks
Computer
- CPU: Intel Atom® E3845 processor (2M cache, 1.91 GHz)
- Graphics Controller: Intel® HD Graphics
- DRAM: 4 GB DDR3L
- Storage Pre-installed: 32 GB CFast eMMC
- Pre-installed OS: Linux Debian 9, Kernel 4.9
- No. of Tags Supported: 2048
Computer Interface
- TPM: TPM v2.0
- Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
- Serial Ports: RS-232/422/485 ports x 4, software selectable (DB9 male)
- Digital Input: DIs x 4
- Digital Output: DOs x 4
- USB 2.0: USB 2.0 hosts x 2, type-A connectors
- Cellular Antenna Connector: SMA x 2 (excluding AIG-501-T-AZU-LX)
- GPS Antenna Connector: SMA x 1 (excluding AIG-501-T-AZU-LX)
- Number of SIMs: 1
- SIM Format: Mini
- Video Output: VGA x 1, 15-pin D-sub connector (female)
- Wi-Fi Antenna Connector: RP-SMA x 2 (AIG-501-T-AZU-LX)
- Expansion Slots: mPCIe slots x 1 (AIG-501-T-AZU-LX)
- Buttons: Reboot Reset to factory default
Ethernet Interface
- Magnetic Isolation Protection: 1.5 kV (built-in)
- 10/100/1000BaseT(X) Ports (RJ45 connector): 4
Serial Interface
- Connector: DB9 male
- Baudrate: 300 bps to 921.6 kbps
- Data Bits: 7, 8
- Flow Control: ADDC (automatic data direction control) for RS-485
- Parity: None Even Odd Space Mark
- Stop Bits: 1, 2
- Isolation: N/A
- Console Port: 1 x 4-pin header
- No. of Ports: 4
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs
- Connector: Spring-type Euroblock terminal
- Sensor Type: Dry contact
- Dry Contact: Off: open On: short to GND
- Isolation: None
Digital Outputs
- Connector: Spring-type Euroblock terminal
- Current Rating: 10 mA (max.) total for all channels
- I/O Type: Sink
- Isolation: None
Cellular Interface
- Cellular Standards: LTE Cat. 4
- Band Options (US): LTE Band 2 (1900 MHz) / LTE Band 5 (850 MHz) / LTE Band 12 (700 MHz) / LTE Band 13 (700 MHz) / LTE Band 14 (700 MHz) / LTE Band 66 (1700 MHz) / LTE Band 71 (600 MHz)UMTS/HSPA Band 2 (1900 MHz) / Band 5 (850 MHz)Carrier Approval: Verizon, AT&T Note: LTE Band 71 (600 MHz). is not included in the selectable antenna support range. Please contact Moxa if you need to use this band.
- Band Options (EU): LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz)UMTS/HSPA Band 1 (2100 MHz) / Band 3 (1900 MHz) / Band 8 (900 MHz)
- Band Option (APAC): LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 28 (700 MHz)UMTS/HSPA Band 1 (2100 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz)
GPS Interface
- Receiver Types: GPS/GLONASS/BeiDou/Galileo/QZSS
- Accuracy: 0.8 m
- Acquisition: -147 dBm
- Sensitivity: Cold starts: -145 dBm Tracking: -160 dBm
LED Indicators
- System: Power x 1 Storage x 1
- LAN: 2 per port (10/100/1000 Mbps)
- Serial: 2 per port (Tx, Rx)
ThingsPro Software
- ThingsPro Proxy Utility: Yes
- Azure IoT Edge Preintegrated: Yes
- ThingsPro Edge Preloaded: Yes
Power Parameters
- Input Voltage: 12 to 36 VDC
- Power Connector: Screw-fastened Euroblock terminal
- Power Consumption: 30 W (max.)
- Input Current: 2.5 A @ 12 VDC
Reliability
- Automatic Reboot Trigger: External WDT (watchdog timer)
Physical Characteristics
- Housing: Metal
- Installation: DIN-rail mounting (with optional kit) Wall mounting (with optional kit)
- IP Rating: IP20
- Dimensions: 132 x 122 x 87 mm (5.2 x 4.81 x 3.43 in)
- Weight: 1,340 g (2.95 lb)
Environmental Limits
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Operating Temperature: -40 to 70°C (-40 to 158°F)
- Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-64
Standards and Certifications
- Safety: UL 62368-1 EN 62368-1
- EMC: EN 55032/35 EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- RED: EN 300 328 EN 301 893 EN 301 489-1/17/19/52 EN 301 511 EN 301 908-1 EN 303 413 EN 62311
- Green Product: RoHS, CRoHS, WEEE
- Hazardous Locations: Class I Division 2 ATEX
- Carrier Approvals: AT&T Verizon PTCRB
MTBF
- Time: AIG-501-T-US-AZU-LX, AIG-501-T-EU-AZU-LX, AIG-501-T-AP-AZU-LX: 441,032 hrsAIG-501-T-AZU-LX: 453,637 hrs
- Standards: Telcordia (Bellcore) Standard TR/SR
Warranty
- Warranty Period: 3 years
- Details: See www.moxa.com/warranty
Ethernet Software Features
- Industrial Protocols: Modbus TCP Client (Master) Generic MQTT Azure IoT Device AWS IoT Core Azure IoT Edge OPC UA Server Sparkplug B Client
- Configuration Options: Web Console (HTTP/HTTPS) ThingsPro Proxy Utility
- Time Management: NTP Server/Client GPS
Serial Software Features
- Industrial Protocols: Modbus RTU/ASCII Master
Azure IoT Edge
- Versions Supported: v1.2.7
- Authentication Methods: Manual / Connection String DPS / TPM DPS / Symmetric Encryption DPS / X.509 Certificate
- Azure Direct Methods: Reboot Software Upgrade Remote API Invocation
- Azure Module Twin: Device Configuration
- Moxa Functions: Message Group Custom Payload
Sparkplug B Client
- Versions Supported: v2.2
- Node Commands (NCMD): Next Broker Reboot Rebirth
- Moxa Functions: Store and Forward Custom Payload
OPC UA Server
- No. of Client Connections: 10
- Security: Sign and encrypt with policies Basic128Rsa15, Basic256, and Basic256Sha256
- User Authentication and Authorization: Username/password
- Supported Profiles: OPC UA v1.02
- No. of Supported Tags: 1024
Generic MQTT Client
- Versions Supported: v3.1.1 v3.1
- QoS Levels: 0, 1, 2
- Authentication Methods: Username and password
- Secure Transmission: TLS 1.0 TLS 1.1 TLS 1.2
- Native Capabilities: Keep Alive Retain Message Clean Session Will and Testament
- Moxa Functions: Store and Forward Custom Payload Remote API Invocation
Azure IoT Device
- Connection Protocols Supported: MQTT MQTT over WebSockets AMQP AMQP over WebSockets
- Authentication Methods: Symmetric Key X.509 Certificate
- Azure Direct Methods: Reboot Software Upgrade Remote API Invocation
AWS IoT Core
- QoS Levels: 0,1
- Authentication Methods: X.509 Certificate Private Key Trusted Root CA
- Native Capabilities: Keep Alive
- Moxa Functions: Store and Forward Custom Payload
- Commands Invokable Via Jobs: Reboot Software Upgrade Remote API Invocation
Modbus RTU/ASCII
- Mode: Master
- Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
- Max. No. of Commands: 256 per port
- Max. No of Connected Devices: 62
Modbus TCP
- Mode: Client (Master)
- Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
- Max. No. of Server Connections: 64
- Max. No. of Commands: 2048
