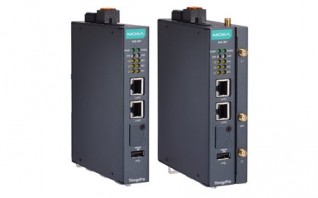

AIG-301 SERIES

2-port Modbus to Azure advanced IIoT gateways with Arm® Cortex™-A7 dual-core 1 GHz processor, Azure IoT Edge, LTE Cat. 4 module for Asia-Pacific region, -20 to 70°C operating temperature
aig-301-series
Simplifies data acquisition and device management via the ThingsPro Edge software
Seamless integration with ThingsPro Edge and Azure IoT Edge enables easy, reliable, yet secure cloud connectivity
Supports easy device-provisioning with the ThingsPro Proxy utility
Provides robust OTA function to prevent system failure during software upgrades
Equipped with secure boot to prevent malicious software-injection attacks

Computer

  • CPU: Armv7 Cortex-A7 dual-core 1 GHz
  • DRAM: 2 GB DDR3L
  • Storage Pre-installed: 16 GB eMMC
  • Pre-installed OS: Moxa Industrial Linux (Debian 9, Kernel 4.4)
  • No. of Tags Supported: 2048

Computer Interface

  • TPM: TPM v2.0
  • Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
  • Serial Ports: RS-232/422/485 ports x 2, software selectable (DB9 male)
  • CAN Ports: CAN 2.0 A/B x 1 (DB9 male)
  • Digital Input: DIs x 4
  • Digital Output: DOs x 4
  • USB 2.0: USB 2.0 hosts x 1, type-A connectors
  • Wi-Fi Antenna Connector: RP-SMA x 2
  • Cellular Antenna Connector: SMA x 2 (excluding AIG-301-AZU-LX/T-AZU-LX models)
  • GPS Antenna Connector: SMA x 1 (excluding AIG-301-AZU-LX/T-AZU-LX models)
  • Expansion Slots: AIG-301-CN-AZU-LX/T-CN-AZU-LX: mPCIe slot x 2All Other Models: mPCIe slot x 1
  • SIM Format: Nano (excluding AIG-301-AZU-LX/T-AZU-LX models)
  • Number of SIMs: 2
  • Buttons: Reset button Reset to factory default

Ethernet Interface

  • Magnetic Isolation Protection: 1.5 kV (built-in)
  • 10/100/1000BaseT(X) Ports (RJ45 connector): 2

Serial Interface

  • Console Port: 1 x 4-pin header
  • Connector: DB9 male
  • Baudrate: 300 bps to 921.6 kbps
  • Data Bits: 7, 8
  • Flow Control: ADDC (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF
  • Parity: None, Even, Odd, Space, Mark
  • Stop Bits: 1, 2
  • Isolation: N/A
  • No. of Ports: 2

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

CAN Interface

  • No. of Ports: 1
  • Connector: DB9 male
  • Baudrate: 10 to 1000 kbps
  • Industrial Protocols: CAN 2.0A CAN 2.0B
  • Signals: CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND
  • Isolation: 2 kV (built-in)

Digital Inputs

  • Connector: Spring-type Euroblock terminal
  • Dry Contact: Off: open On: short to GND
  • Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDC
  • Isolation: 3K VDC
  • Sensor Type: Wet contact (NPN) Dry contact

Digital Outputs

  • Connector: Spring-type Euroblock terminal
  • Current Rating: 200 mA per channel
  • I/O Type: Sink
  • Voltage: 24 VDC nominal, open collector to 30 VDC

Cellular Interface

  • Cellular Standards: LTE Cat. 4
  • Band Options (US): LTE Band 2 (1900 MHz) / LTE Band 4 (1700 MHz) / LTE Band 5 (850 MHz) / LTE Band 12 (700 MHz) / LTE Band 13(700 MHz) / LTE Band 14 (700 MHz) / LTE Band 66 (1700 MHz) / LTE Band 71 (600 MHz)UMTS/HSPA 850 MHz / 1900 MHzCarrier Approval: Verizon, AT&T
  • Band Options (EU): LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 7(2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz)UMTS/HSPA 900 MHz / 1800 MHz / 2100 MHz
  • Band Option (APAC): LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 28 (700 MHz)UMTS/HSPA 850 MHz / 900 MHz / 2100 MHz

GPS Interface

  • Receiver Types: GPS/GLONASS/BeiDou/Galileo/QZSS
  • Accuracy: 0.8 m
  • Acquisition: -147 dBm
  • Sensitivity: Cold starts: -145 dBm Tracking: -160 dBm
  • Time Pulse: 0.25 Hz to 10 MHz

LED Indicators

  • System: Power x 2 User x 1 SIM card indicator x 1
  • Wireless Signal Strength: Cellular/Wi-Fi x 6
  • LAN: 2 per port (10/100/1000 Mbps)

ThingsPro Software

  • ThingsPro Proxy Utility: Yes
  • Azure IoT Edge Preintegrated: Yes
  • ThingsPro Edge Preloaded: Yes

Power Parameters

  • No. of Power Inputs: Redundant dual inputs
  • Input Voltage: 12 to 48 VDC
  • Power Consumption: AIG-301-AZU-LX/T-AZU-LX: 4.8 WAIG-301-CN-AZU-LX/T-CN-AZU-LX: 6.0 WAll Other Models: 8.4 W
  • Input Current: AIG-301-AZU-LX/T-AZU-LX: 0.4 A @ 12 VDCAIG-301-CN-AZU-LX/T-CN-AZU-LX: 0.5 A @ 12 VDCAll Other Models: 0.7 A @ 12 VDC
  • Power Connector: 4-pin terminal block

Reliability

  • Automatic Reboot Trigger: External WDT (watchdog timer)

Physical Characteristics

  • Housing: Metal SECC
  • Installation: DIN-rail mounting Wall mounting (with optional kit)
  • IP Rating: IP30
  • Dimensions: AIG-301-AZU-LX/T-AZU-LX: 141.5 x 120 x 27 mm (5.7 x 4.72 x 1.06 in)All Other Models: 141.5 x 120 x 39 mm (5.7 x 4.72 x 1.54 in)
  • Weight: AIG-301-AZU-LX/T-AZU-LX: 560 g (1.23 lb)AIG-301-CN-AZU-LX/T-CN-AZU-LX: 745 g (1.64 lb)All Other Models: 750 g (1.65 lb)

Environmental Limits

  • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Operating Temperature: Standard Temp. Models:AIG-301-US-AZU-LX, AIG-301-EU-AZU-LX, AIG-301-APAZULX, AIG-301-CN-AZU-LX: -20 to 70°C (-4 to 158°F)AIG-301-AZU-LX: -20 to 85°C (-4 to 185°F)Wide Temp. Models:AIG-301-T-US-AZU-LX, AIG-301-T-EU-AZU-LX, AIG- 301-TAPAZU-LX, AIG-301-T-CN-AZU-LX: -40 to 70°C (-40 to 158°F))AIG-301-T-AZU-LX: –40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Shock: IEC 60068-2-27
  • Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5 to 500 Hz, 1 hr per axis (without USB devices attached)

Standards and Certifications

  • Safety: UL 62368-1 EN 62368-1
  • EMC: EN 55032/35 EN 61000-6-2/-6-4
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Green Product: RoHS, CRoHS, WEEE
  • Carrier Approvals: AT&T Verizon PTCRB
  • Hazardous Locations: Class I Division 2, ATEX
  • Radio: NCC KC RCM
  • RED: EN 301 489-1/17/19/52 EN 301 908-1 EN 303 413 EN 62311

MTBF

  • Time: AIG-301-AZU-LX/T-AZU-LX: 794,092 hrsAIG-301-US-AZU-LX/T-US-AZU-LX, AIG-301-EU-AZU-LX/T-EU-AZU-LX, AIG-301-AP-AZU-LX/T-AP-AZU-LX: 683,818 hrs
  • Standards: Telcordia (Bellcore) Standard TR/SR

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Ethernet Software Features

  • Industrial Protocols: Modbus TCP Client (Master) Generic MQTT Azure IoT Device AWS IoT Core Azure IoT Edge OPC UA Server Sparkplug B Client
  • Configuration Options: Web Console (HTTP/HTTPS) ThingsPro Proxy Utility
  • Time Management: NTP Server/Client GPS

Serial Software Features

  • Industrial Protocols: Modbus RTU/ASCII Master

Azure IoT Edge

  • Versions Supported: v1.4.10
  • Authentication Methods: Manual / Connection String DPS / TPM DPS / Symmetric Encryption DPS / X.509 Certificate
  • Azure Direct Methods: Reboot Software Upgrade Remote API Invocation
  • Azure Module Twin: Device Configuration
  • Moxa Functions: Custom Payload Message Group

Sparkplug B Client

  • Versions Supported: v2.2
  • Node Commands (NCMD): Next Broker Reboot Rebirth
  • Moxa Functions: Store and Forward Custom Payload

OPC UA Server

  • No. of Client Connections: 10
  • Security: Sign and encrypt with policies Basic128Rsa15, Basic256, and Basic256Sha256
  • User Authentication and Authorization: Username/password
  • Supported Profiles: OPC UA v1.02
  • No. of Supported Tags: 1024

Generic MQTT Client

  • Versions Supported: v3.1.1 v3.1
  • QoS Levels: 0, 1, 2
  • Authentication Methods: Username and password
  • Secure Transmission: TLS 1.0 TLS 1.1 TLS 1.2
  • Native Capabilities: Keep Alive Retain Message Clean Session Will and Testament
  • Moxa Functions: Store and Forward Custom Payload Remote API Invocation

Azure IoT Device

  • Connection Protocols Supported: MQTT MQTT over WebSockets AMQP AMQP over WebSockets
  • Authentication Methods: Symmetric Key X.509 Certificate
  • Azure Direct Methods: Reboot Software Upgrade Remote API Invocation

AWS IoT Core

  • QoS Levels: 0,1
  • Authentication Methods: X.509 Certificate Private Key Trusted Root CA
  • Native Capabilities: Keep Alive
  • Moxa Functions: Store and Forward Custom Payload
  • Commands Invokable Via Jobs: Reboot Software Upgrade Remote API Invocation

Modbus RTU/ASCII

  • Mode: Master
  • Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Commands: 256 per port
  • Max. No of Connected Devices: 62

Modbus TCP

  • Mode: Client (Master)
  • Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Server Connections: 64
  • Max. No. of Commands: 2048

Available Models

Model No. Description Quantity
AIG-301-T-AP-AZU-LX 2-port Modbus to Azure advanced IIoT gateways with Arm® Cortex™-A7 dual-core 1 GHz processor, Azure IoT Edge, LTE Cat. 4 module for Asia-Pacific region, -40 to 70°C operating temperature
AIG-301-US-AZU-LX 2-port Modbus to Azure advanced IIoT gateways with Arm® Cortex™-A7 dual-core 1 GHz processor, Azure IoT Edge, LTE Cat. 4 module for U.S. region, -20 to 70°C operating temperature
AIG-301-T-EU-AZU-LX 2-port Modbus to Azure advanced IIoT gateways with Arm® Cortex™-A7 dual-core 1 GHz processor, Azure IoT Edge, LTE Cat. 4 module for EU region, -40 to 70°C operating temperature
AIG-301-AZU-LX 2-port Modbus to Azure advanced IIoT gateways with Arm® Cortex™-A7 dual-core 1 GHz processor, Azure IoT Edge, -20 to 70°C operating temperature
AIG-301-CN-AZU-LX 2-port Modbus to Azure advanced IIoT gateways with Arm® Cortex™-A7 dual-core 1 GHz processor, Azure IoT Edge, mPCIe reserved for LTE module, -20 to 70°C operating temperature
AIG-301-T-US-AZU-LX 2-port Modbus to Azure advanced IIoT gateways with Arm® Cortex™-A7 dual-core 1 GHz processor, Azure IoT Edge, LTE Cat. 4 module for U.S. region, -40 to 70°C operating temperature
AIG-301-T-AZU-LX 2-port Modbus to Azure advanced IIoT gateways with Arm® Cortex™-A7 dual-core 1 GHz processor, Azure IoT Edge, -40 to 70°C operating temperature
AIG-301-AP-AZU-LX 2-port Modbus to Azure advanced IIoT gateways with Arm® Cortex™-A7 dual-core 1 GHz processor, Azure IoT Edge, LTE Cat. 4 module for Asia-Pacific region, -20 to 70°C operating temperature
AIG-301-T-CN-AZU-LX 2-port Modbus to Azure advanced IIoT gateways with Arm® Cortex™-A7 dual-core 1 GHz processor, Azure IoT Edge, mPCIe reserved for LTE module, -40 to 70°C operating temperature
AIG-301-EU-AZU-LX 2-port Modbus to Azure advanced IIoT gateways with Arm® Cortex™-A7 dual-core 1 GHz processor, Azure IoT Edge, LTE Cat. 4 module for EU region, -20 to 70°C operating temperature
