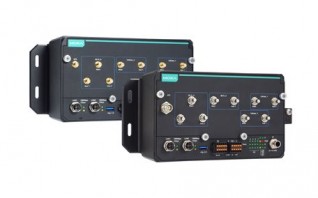

UC-8580 SERIES
Vehicle-to-ground computing platform with multiple WWAN ports, SMA connectors, -25 to 55°C operating temperature
Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
Supports up to 3 WWAN connections and 2 SIM card slots per cellular module
Supports 1 WLAN (IEEE 802.11 a/b/g/n/ac) connection
Single-panel I/O design for reduced installation space and easier maintenance
Front-side access panel for easy maintenance
Isolated 24 to 110 VDC power input with power-ignition function suitable for vehicle applications
EN 50155 Tx (-40 to 70°C) operating temperature for harsh environments
5-year warranty
Supports up to 3 WWAN connections and 2 SIM card slots per cellular module
Supports 1 WLAN (IEEE 802.11 a/b/g/n/ac) connection
Single-panel I/O design for reduced installation space and easier maintenance
Front-side access panel for easy maintenance
Isolated 24 to 110 VDC power input with power-ignition function suitable for vehicle applications
EN 50155 Tx (-40 to 70°C) operating temperature for harsh environments
5-year warranty
Computer
- CPU: Armv7 Cortex-A7 dual-core 1 GHz
- System Memory Pre-installed: 1 GB DDR3L
- Supported OS: Linux Debian 8 (Linux kernel v4.1)
- Storage Slot: mSATA slots x 1, internal mini-PCIe socket
- Storage Pre-installed: 8 GB eMMC
Computer Interface
- Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2
- Serial Ports: RS-232/422/485 ports x 2, software-selectable (terminal block)
- USB 3.0: USB 3.0 hosts x 1, type-A connectors
- Digital Input: DIs x 3
- Digital Output: DOs x 3
- Expansion Slots: mPCIe slots x 4
- Wi-Fi Antenna Connector: RP-SMA x 3
- Cellular Antenna Connector: SMA x 6
- Number of SIMs: 6
- SIM Format: Mini
- GPS Antenna Connector: SMA x 1
- Console Port: RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
Input/Output Interface
- Buttons: Reset button
Digital Inputs
- Channel-to-Channel Isolation: 3K VDC
- Connector: Screw-fastened Euroblock terminal
- Counter Frequency: 25 Hz
- Dry Contact: On: short to GND Off: open
- I/O Mode: DI
- Points per COM: 3 x channel
- Sensor Type: Wet contact (NPN or PNP)
- Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDC
Digital Outputs
- Connector: Screw-fastened Euroblock terminal
- Current Rating: 200 mA per channel
- I/O Type: Sink
- Voltage: 0 to 30 VDC
LED Indicators
- System: Power x 1 System Ready x 1 Programmable x 1
- Wireless Signal Strength: Cellular/Wi-Fi x 12
- LAN: 2 per port (10/100/1000 Mbps)
- Serial: 2 per port (Tx, Rx)
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
GPS Interface
- Heading Accuracy: 0.3 degrees
- Industrial Protocols: NMEA 0183, version 4.0 (V2.3 or V4.1 configurable), UBX, RTCM
- Receiver Types: 72-channel u-blox M8 engine
- Time Pulse: 0.25 Hz to 10 MHz
- Velocity Accuracy: 0.05 ms
Power Parameters
- Input Current: 1.66 A @ 24 VDC, 0.36 A @ 110 VDC
- Input Voltage: 24 to 110 VDC
- Power Connector: M12 A-coded 4-pin male connector
- Power Consumption: 40 W (max.)
Physical Characteristics
- Housing: Metal
- IP Rating: IP40
- Dimensions (with ears): 270 x 134 x 88 mm (10.63 x 5.28 x 3.46 in)
- Dimensions (without ears): 220 x 134 x 88 mm (8.66 x 5.28 x 3.46 in)
- Weight: Product only: 2,200 g (4.85 lb)
- Installation: Wall mounting
Environmental Limits
- Operating Temperature: -25 to 55°C (-13 to 131°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/24
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Railway: EN 50121-4 EN 50155
- Railway Fire Protection: EN 45545-2
- Safety: EN 60950-1 UL 60950-1
- Shock: IEC 60068-2-27, IEC 61373, EN 50155:2017
- Vibration: IEC 60068-2-64, IEC 61373, EN 50155:2017
Declaration
- Green Product: RoHS, CRoHS, WEEE
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
