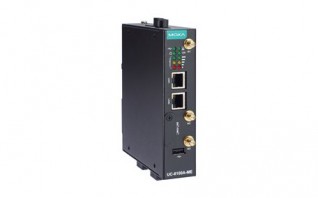

UC-8100A-ME-T SERIES

Arm-based DIN-rail industrial computer with 2 Ethernet ports, 2 serial ports, 1 Mini PCIe slot for Wi-Fi or LTE, -40 to 75°C operating temperature
uc-8100a-me-t-series
Armv7 Cortex-A8 1000 MHz processor
Moxa Industrial Linux with 10-year long-term support
Dual auto-sensing 10/100 Mbps Ethernet ports
SD slot for storage expansion
Programmable LEDs and a programmable button for easy installation and maintenance
Mini-PCIe slot for wireless module
-40 to 70°C wide-temperature range with LTE enabled

Computer

  • CPU: Armv7 Cortex-A8 1 GHz
  • Pre-installed OS: Moxa Industrial Linux (Debian 9, Kernel 4.4) See www.moxa.com/MIL
  • DRAM: 1 GB DDR3
  • Storage Pre-installed: 8 GB eMMC
  • Storage Slot: SD slots x 1
  • Supported OS: Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOLSee www.moxa.com/MIL

Computer Interface

  • USB 2.0: USB 2.0 hosts x 1, type-A connectors
  • Console Port: RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
  • Expansion Slots: mPCIe slots x 1
  • Number of SIMs: 1
  • SIM Format: Mini
  • Buttons: Reset button
  • Serial Ports: RS-232/422/485 ports x 2, software selectable (terminal block)
  • Cellular Antenna Connector: SMA x 2
  • GPS Antenna Connector: SMA x 1
  • TPM: TPM v2.0
  • Ethernet Ports: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2

LED Indicators

  • System: Power x 1 Programmable x 1 SD slots x 1 USB x 1, Diagnostic x 3
  • Wireless Signal Strength: Cellular/Wi-Fi x 3

Ethernet Interface

  • Ethernet Ports: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
  • Magnetic Isolation Protection: 1.5 kV (built-in)

Serial Interface

  • Data Bits: 5, 6, 7, 8
  • Parity: None, Even, Odd, Space, Mark
  • Stop Bits: 1, 1.5, 2
  • Baudrate: 300 bps to 921.6 kbps
  • Flow Control: RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485 RTS Toggle (RS-232 only)

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

GPS Interface

  • Receiver Types: 72-channel u-blox M8 engineGPS/GLONASS/Galileo
  • Accuracy: Position: 2.5 m CEP SBAS: 2.0 m CEP
  • Acquisition: Aided starts: 3 sec Cold starts: 26 sec
  • Sensitivity: Cold starts: -148 dBm Tracking: -164 dBm
  • Time Pulse: 0.25 Hz to 10 MHz

Power Parameters

  • Input Current: 500 mA @ 12 VDC
  • Input Voltage: 12 to 36 VDC
  • Power Consumption: 6 W

Reliability

  • Alert Tools: External RTC (real-time clock)
  • Automatic Reboot Trigger: External WDT (watchdog timer)

Physical Characteristics

  • Dimensions: 141 x 125.6 x 33 mm (5.55 x 4.94 x 1.3 in)
  • Housing: Metal
  • Installation: DIN-rail mounting Wall mounting (with optional kit)
  • Weight: 550 g (1.22 lb)

Environmental Limits

  • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Operating Temperature: -40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Shock: IEC 60068-2-27
  • Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)

Standards and Certifications

  • EMC: EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 5 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV IEC 61000-4-8 PFMF
  • Safety: UL 62368-1, EN 62368-1
  • Hazardous Locations: Class I Division 2 ATEX IECEx
  • Hazardous Locations: Class 1 Division 2, ATEX, and IECEx certifications are underway. Please contact a Moxa sales representative for details.
  • Green Product: RoHS, CRoHS, WEEE
  • Carrier Approvals: AT&T Verizon

MTBF

  • Time: 868,326 hrs
  • Standards: Telcordia (Bellcore) Standard TR/SR

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Cellular Interface

  • Band Options: US model:LTE Bands: Band 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz) / Band 13 (700 MHz) / Band 17 (700 MHz) UMTS Bands: Band 2 (1900 MHz) / Band 5 (850 MHz) Carrier Approval: Verizon, AT&TEU model:LTE Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) / Band 5 (850 MHz) / Band 7 (2600 MHz) / Band 8 (900 MHz) / LTE Band 20 (800 MHz)UMTS Bands: Band 1 (2100 MHz) / Band 2 (1900 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz) AP model:LTE Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) / Band 5 (850 MHz) / Band 7 (2600 MHz) / Band 8 (900 MHz) / Band 28 (700 MHz)UMTS Bands: Band 1 (2100 MHz) / Band 2 (1900 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz) LTE Bands: Band 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz) / Band 13 (700 MHz) / Band 14 (700 MHz) UMTS Bands: Band 2 (1900 MHz) / Band 5 (850 MHz) Carrier Approval: Verizon, AT&T LTE Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) / Band 5 (850 MHz) / Band 7 (2600 MHz) / Band 8 (900 MHz) / LTE Band 20 (800 MHz)UMTS Bands: Band 1 (2100 MHz) / Band 2 (1900 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz) LTE Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) / Band 5 (850 MHz) / Band 7 (2600 MHz) / Band 8 (900 MHz) / Band 28 (700 MHz)UMTS Bands: Band 1 (2100 MHz) / Band 2 (1900 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz)

Available Models

Model No. Description Quantity
UC-8112A-ME-T-LX Arm-based DIN-rail industrial computer with 2 Ethernet ports, 2 serial ports, 1 Mini PCIe slot for Wi-Fi or LTE, -40 to 75°C operating temperature
