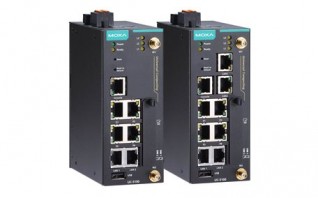

UC-5100 SERIES
Arm-based wireless-enabled industrial computing platform with Cortex-A8 1 GHz CPU, 2 Ethernet ports, 4 serial ports, 1 SD slot, 1 Mini PCIe slot, 4 DIs, 4 DOs, 1 USB port, -40 to 85°C operating temperature
Armv7 Cortex-A8 1 GHz processor
Dual auto-sensing 10/100 Mbps Ethernet ports
4 software-selectable RS-232/422/485 ports supporting all signals
Dual CAN ports with industrial CAN 2.0 A/B protocol supported
Mini PCIe socket for Wi-Fi/cellular module
SD slot for storage expansion
-40 to 85°C wide temperature range and -40 to 70°C with LTE enabled
IEC 61000-6-2/6-4 standards for harsh industrial environments
Long-term Linux support until 2027; includes bug fixes and security patches
Dual auto-sensing 10/100 Mbps Ethernet ports
4 software-selectable RS-232/422/485 ports supporting all signals
Dual CAN ports with industrial CAN 2.0 A/B protocol supported
Mini PCIe socket for Wi-Fi/cellular module
SD slot for storage expansion
-40 to 85°C wide temperature range and -40 to 70°C with LTE enabled
IEC 61000-6-2/6-4 standards for harsh industrial environments
Long-term Linux support until 2027; includes bug fixes and security patches
Computer
- CPU: Armv7 Cortex-A8 1 GHz
- Pre-installed OS: Linux Debian 9 kernel 4.4 (Moxa Industrial Linux)
- DRAM: 512 MB DDR3
- Storage Pre-installed: 8 GB eMMC
- Storage Slot: SD slots x 1
- Expansion Slots: mPCIe slots x 1
- Supported OS: Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOLSee www.moxa.com/MIL
Computer Interface
- USB 2.0: USB 2.0 hosts x 1, type-A connectors
- Expansion Slots: mPCIe slot x 1
- Number of SIMs: 2
- SIM Format: Micro
- Serial Ports: RS-232/422/485 ports (software-selectable, RJ45 connector) x 4
- Digital Input: DIs x 4
- Digital Output: DOs x 4
- Buttons: Reset button DIP switch for serial and CAN port configuration
- TPM: TPM v2.0 (Optional)
- Console Port: RS-232 (TxD, RxD, GND), RJ45 output (115200, n, 8, 1)
- Ethernet Ports: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
Ethernet Interface
- Ethernet Ports: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
- Magnetic Isolation Protection: 1.5 kV (built-in)
Serial Interface
- Serial Ports: 4 x RS-232/422/485
- Data Bits: 7, 8
- Parity: None, Even, Odd, Space, Mark
- Stop Bits: 1, 2
- Baudrate: 50 bps to 921.60 kbps
- Flow Control: RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485 RTS Toggle (RS-232 only)
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs
- Voltage: 0 to 0.8 VDC 2.0 to 5.5 VDC
Digital Outputs
- Current Rating: 24 mA per channel
- Voltage: 0 to 0.55 VDC 2.5 to 3.3 VDC
LED Indicators
- LAN: 2 per port (10/100 Mbps)
- Serial: 2 per port (Tx, Rx)
- Wireless Signal Strength: Cellular/Wi-Fi x 3
Physical Characteristics
- Housing: Metal
- Weight: 600 g (1.32 lb)
- Dimensions: 57 x 136 x 100 mm (2.24 x 5.35 x 3.94 in)
- Installation: DIN-rail mounting Wall mounting (with optional kit)
Power Parameters
- Input Voltage: 9 to 48 VDC
- Input Current: 0.95 A @ 9 VDC, 0.23 A @ 48 VDC
- Power Consumption: 11 W
Environmental Limits
- Operating Temperature: -40 to 85°C (-40 to 185°F)
- Storage Temperature: -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
- Shock: IEC 60068-2-27
Standards and Certifications
- Safety: UL 60950-1 IEC 60950-1 EN 62368-1
- EMC: EN 55032/35 EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Green Product: RoHS, CRoHS, WEEE
Reliability
- Alert Tools: External RTC (real-time clock)
- Automatic Reboot Trigger: External WDT (watchdog timer)
MTBF
- Time: 729,538 hrs
- Standards: Telcordia (Bellcore) Standard TR/SR
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
