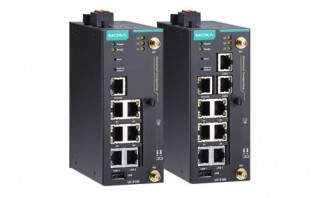

UC-5100 SERIES

Arm-based industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, 1 SD slot, 4 DIs, 4 DOs, 1 USB port, -10 to 60°C operating temperature range
uc-5100-series
Armv7 Cortex-A8 1000 MHz processor
Dual auto-sensing 10/100 Mbps Ethernet ports
4 software-selectable RS-232/422/485 ports supporting all signals
Dual CAN ports with industrial CAN 2.0 A/B protocol supported
Mini PCIe socket for Wi-Fi/cellular module
SD slot for storage expansion
-40 to 85°C wide temperature range and -40 to 70°C with LTE enabled
IEC 61000-6-2/6-4 standards for harsh industrial environments
Long-term Linux support until 2027; includes bug fixes and security patches

Computer

  • CPU: Armv7 Cortex-A8 1 GHz
  • Pre-installed OS: Linux Debian 9 kernel 4.4 (Moxa Industrial Linux)
  • DRAM: 512 MB DDR3
  • Storage Pre-installed: 8 GB eMMC
  • Storage Slot: SD slots x 1
  • Supported OS: Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOLSee www.moxa.com/MIL

Computer Interface

  • USB 2.0: USB 2.0 hosts x 1, type-A connectors
  • Expansion Slots: mPCIe slot x 1
  • Number of SIMs: 2
  • SIM Format: Micro
  • Serial Ports: RS-232/422/485 ports x 4, software selectable (RJ45)
  • Digital Input: DIs x 4
  • Digital Output: DOs x 4
  • Buttons: Reset button DIP switch for serial and CAN port configuration
  • TPM: TPM v2.0 (Optional)
  • Console Port: RS-232 (TxD, RxD, GND), RJ45 output (115200, n, 8, 1)
  • Ethernet Ports: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2

Ethernet Interface

  • Ethernet Ports: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
  • Magnetic Isolation Protection: 1.5 kV (built-in)

Serial Interface

  • Serial Ports: 4 x RS-232/422/485
  • Data Bits: 7, 8
  • Parity: None, Even, Odd, Space, Mark
  • Stop Bits: 1, 2
  • Baudrate: 50 bps to 921.60 kbps
  • Flow Control: RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485 RTS Toggle (RS-232 only)

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Digital Inputs

  • Voltage: 0 to 0.8 VDC 2.0 to 5.5 VDC

Digital Outputs

  • Current Rating: 24 mA per channel
  • Voltage: 0 to 0.55 VDC 2.5 to 3.3 VDC

LED Indicators

  • System: Programmable x 3
  • LAN: 2 per port (10/100 Mbps)
  • Serial: 2 per port (Tx, Rx)

Physical Characteristics

  • Housing: Metal
  • Weight: 600 g (1.32 lb)
  • Dimensions: 57 x 136 x 100 mm (2.24 x 5.35 x 3.94 in)
  • Installation: DIN-rail mounting Wall mounting (with optional kit)

Power Parameters

  • Input Voltage: 9 to 48 VDC
  • Input Current: 0.95 A @ 9 VDC, 0.23 A @ 48 VDC
  • Power Consumption: 11 W

Environmental Limits

  • Operating Temperature: -10 to 60°C (14 to 140°F)
  • Storage Temperature: -20 to 70°C (-4 to 158°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
  • Shock: IEC 60068-2-27

Standards and Certifications

  • Safety: UL 60950-1 IEC 60950-1 EN 62368-1
  • EMC: EN 55032/35 EN 61000-6-2/-6-4
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Green Product: RoHS, CRoHS, WEEE

Reliability

  • Alert Tools: External RTC (real-time clock)
  • Automatic Reboot Trigger: External WDT (watchdog timer)

MTBF

  • Time: 728,216 hrs
  • Standards: Telcordia (Bellcore) Standard TR/SR

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
UC-5102-LX Arm-based wireless-enabled industrial computing platform with Cortex-A8 1 GHz CPU, 2 Ethernet ports, 4 serial ports, 1 SD slot, 1 Mini PCIe slot, 4 DIs, 4 DOs, 1 USB port, -10 to 60°C operating temperature
UC-5102-T-LX Arm-based wireless-enabled industrial computing platform with Cortex-A8 1 GHz CPU, 2 Ethernet ports, 4 serial ports, 1 SD slot, 1 Mini PCIe slot, 4 DIs, 4 DOs, 1 USB port, -40 to 85°C operating temperature
UC-5112-LX Arm-based wireless-enabled industrial computing platform with Cortex-A8 1 GHz CPU, 2 Ethernet ports, 4 serial ports, 1 SD slot, 1 Mini PCIe slot, 2 CAN ports, 4 DIs, 4 DOs, 1 USB port, -10 to 60°C operating temperature
UC-5112-T-LX Arm-based wireless-enabled industrial computing platform with Cortex-A8 1 GHz CPU, 2 Ethernet ports, 4 serial ports, 1 SD slot, 1 Mini PCIe slot, 2 CAN ports, 4 DIs, 4 DOs, 1 USB port, -40 to 85°C operating temperature
UC-5101-LX Arm-based industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, 1 SD slot, 4 DIs, 4 DOs, 1 USB port, -10 to 60°C operating temperature range
UC-5111-LX Arm-based industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, 1 SD slot, 2 CAN ports, 4 DIs, 4 DOs, 1 USB port, -10 to 60°C operating temperature range
UC-5101-T-LX Arm-based industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, 1 SD slot, 4 DIs, 4 DOs, 1 USB port, -40 to 85°C operating temperature range
UC-5111-T-LX Arm-based industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, 1 SD slot, 2 CAN ports, 4 DIs, 4 DOs, 1 USB port, -40 to 85°C operating temperature range
