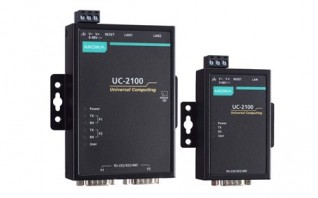

UC-2100 SERIES
Mini RISC-based embedded computer with 600 MHz processor, 1 serial port and 1 LAN port
Armv7 Cortex-A8 600-1000 MHz processor
Palm-sized form factor, 50 x 80 x 28 mm
MXview support for centralized monitoring of devices and computing status
Unified APIs and push-based communication for retrieving data only when needed
1 or 2 auto-sensing 10/100 Mbps Ethernet ports
Gigabit Ethernet supported (UC-2112)
Up to 2 software-selectable RS-232/422/485 ports supporting all signals
Mini PCIe slot for Wi-Fi/cellular module (UC-2104)
-40 to 75°C wide-temperature model available with hazardous locations certification
Long-term Linux support until 2027; includes bug fixes and security patches
Palm-sized form factor, 50 x 80 x 28 mm
MXview support for centralized monitoring of devices and computing status
Unified APIs and push-based communication for retrieving data only when needed
1 or 2 auto-sensing 10/100 Mbps Ethernet ports
Gigabit Ethernet supported (UC-2112)
Up to 2 software-selectable RS-232/422/485 ports supporting all signals
Mini PCIe slot for Wi-Fi/cellular module (UC-2104)
-40 to 75°C wide-temperature model available with hazardous locations certification
Long-term Linux support until 2027; includes bug fixes and security patches
Computer
- CPU: Armv7 Cortex-A8 600 MHz
- Pre-installed OS: Moxa Industrial Linux (Debian 9, Kernel 4.4)See www.moxa.com/MIL
- DRAM: 256 MB DDR3
- Storage Pre-installed: 8 GB eMMC
- Supported OS: Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOLSee www.moxa.com/MIL
Computer Interface
- Ethernet Ports: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 1
- Serial Ports: RS-232/422/485 ports x 1, software selectable (DB9 male)
- Console Port: RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
- Buttons: Reset button DIP switch for serial port configuration
- TPM: TPM v2.0 (Optional)
Ethernet Interface
- Magnetic Isolation Protection: 1.5 kV (built-in)
Serial Interface
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485 RTS Toggle (RS-232 only)
- Baudrate: 50 bps to 921.6 kbps
- Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
- ESD Protection: 4 kV, for all signals
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
LED Indicators
- System: Power x 1
- LAN: 2 per port (10/100 Mbps)
- Serial: 2 per port (Tx, Rx)
- User Programmable: User x 1
Physical Characteristics
- Housing: Metal
- Installation: Wall mounting DIN-rail mounting (with optional kit)
- Weight: 190 g (0.42 lb)
- Dimensions (with ears): 73 x 80 x 28 mm (2.87 x 3.15 x 1.10 in)
- Dimensions (without ears): 50 x 80 x 28 mm (1.97 x 3.15 x 1.10 in)
Environmental Limits
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Storage Temperature: -20 to 70°C (-4 to 158°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Shock: IEC 60068-2-27
- Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
Power Parameters
- Input Voltage: 9 to 48 VDC
- Input Current: 0.45 A @ 9 VDC, 0.084 A @ 48 VDC
- Power Consumption: 4 W
MTBF
- Time: 1,360,496 hrs
- Standards: Telcordia (Bellcore) Standard TR/SR
Reliability
- Alert Tools: External RTC (real-time clock)
- Automatic Reboot Trigger: External WDT (watchdog timer)
Standards and Certifications
- Safety: IEC 60950-1 UL 60950-1
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
- Green Product: RoHS, CRoHS, WEEE
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
