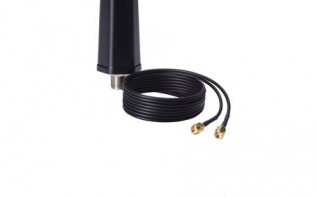

MAT-WDB-DA-RM-2-0203-1M SERIES
2.4/5 GHz, desktop antenna, 2/3 dBi, MIMO 2x2, RP-SMA-type (male), 1 m cable
Small size for easy installation
Desktop mount
RP-SMA-type (male) connector
Desktop mount
RP-SMA-type (male) connector
Antenna Characteristics
- Frequency: 2.4 to 2.5, 4.9 to 5.85 GHz
- Antenna Type: MIMO 2x2 Omni-directional
- Typical Antenna Gain: 2/3 dBi
- Connector: RP-SMA (male)
- Impedance: 50 ohms
- Polarization: Linear Vertical
- HPBW/Horizontal: 360/114°
- HPBW/Vertical: 75/54°
- V.S.W.R.: 2:1 max.
- Power Handling: 2 W (max.)
Physical Characteristics
- Weight: 156 g (0.34 lb)
- Length (including RF cable): 1094.3 mm (43.08 in)
- IP Rating: IP55
- Radome Color: Black
- Radome Material: PC-1250G
- Installation: Desktop Mount
- Cable: RG-174
- Cable Length: 1 m
Environmental Limits
- Operating Temperature: -40 to 75°C (-40 to 167°F)
- Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
- Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)
Warranty
- Warranty Period: 1 year
- Details: See www.moxa.com/warranty
