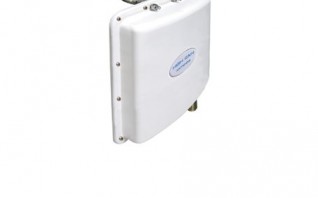

High gain antenna
N-type (female) connector supported

Antenna Characteristics

• Frequency: 5.15 to 5.85 GHz
• Antenna Type: Directional, Panel
• Typical Antenna Gain: 16 dBi
• Connector: N-type (female)
• Impedance: 50 ohms
• HPBW/Horizontal: 30°
• HPBW/Vertical: 23°
• V.S.W.R.: 1:2.0 max.
• Power Handling: 10 W (max.)
• Polarization: Vertical

Physical Characteristics

• IP Rating: IP65
• Dimensions: 260 x 260 x 44 mm (10.27 x 10.27 x 1.73 in)
• Weight: 807 g (1.78 lb)
• Radome Material: PC and ABS
• Installation: Pole mount
• Radome Color: White

Environmental Limits

• Operating Temperature: -40 to 85°C (-40 to 185°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)

Warranty

• Warranty Period: 1 year
• Details: See www.moxa.com/warranty

Available Models

Model No.	Description	Quantity
ANT-WSB5-PNF-16	16 dBi at 5 GHz, N-type (female), single-band directional antenna
